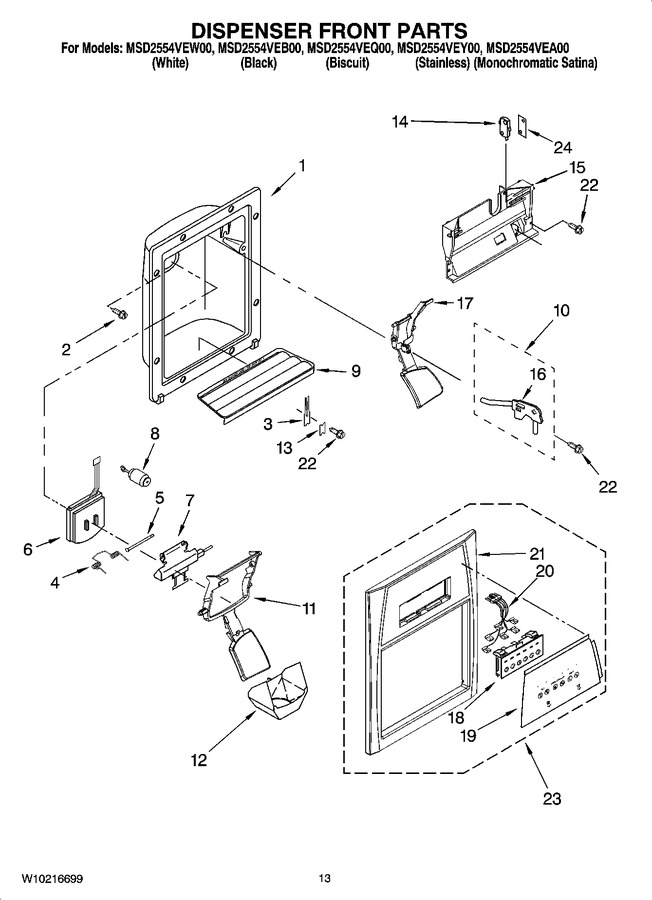

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts


12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP3196557		Screw   (Replaces: 3196537)			Immediately	$ 7.16
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 10.59
4	WPW10224328		Spring, Torsion   (Replaces: 2304772)				$ 74.92
5	WP2196195		Pin   (Replaces: 2196195)				$ 13.12
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 22.22
7	2304355		Door Mechanism Assembly		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	WP2206670B		Grille, Overflow (stainless/satina)   (Replaces: W10171993)			Immediately	$ 31.97
9	WP2206670T		Grille, Overflow (biscuit)   (Replaces: 2206670T)				$ 59.91
9	WP2206670B		Grille, Overflow (black)   (Replaces: 2206670B)			Immediately	$ 31.97
9	WP2206670W		Grille, Overflow (white)   (Replaces: 2206670W)				$ 61.92
10	8201537		Water Fitting Assembly (includes Water Tube)   (Replaces: 2304317)				$ 120.72
11	2203562A		Lever, Ice Dispenser (apollo Grey)		Appelez-nous	-
11	WP2203562W		Lever, Ice Dispenser (white)   (Replaces: 2203562W)				$ 96.89
11	2203562T		Lever, Ice Dispenser (biscuit)				$ 56.21
11	2203562B		Lever, Ice Dispenser (black)				$ 85.92
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 24.87
13	WP2195051		Strain Relief   (Replaces: 2195051)				$ 10.50
14	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 24.61
15	W10167536		Bracket, Control		Appelez-nous	-
16	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 14.04
17	2203561W		Lever, Water Dispenser (white)				$ 86.38
17	2203561B		Lever, Water Dispenser (black)				$ 102.50
17	2203561A		Lever, Water Dispenser (apollo Grey)		Appelez-nous	-
17	2203561T		Lever, Water Dispenser (biscuit)				$ 88.81
22	WP3400906		Screw   (Replaces: 489000)				$ 7.06
23	W10172008		Front Cover Assembly (includes Items 18, 19, 20 & 21) (satina)		Appelez-nous	-
23	W10170168		Front Cover Assembly (includes Items 18, 19, 20 & 21) (white)				$ 319.16
23	W10170169		Front Cover Assembly (includes Items 18, 19, 20 & 21) (black)		Appelez-nous	-
23	W10170170		Front Cover Assembly (includes Items 18, 19, 20 & 21) (biscuit)		Appelez-nous	-
23	W10157650		Front Cover Assembly (includes Items 18, 19, 20 & 21) (stainless)		Appelez-nous	-
24	625834		Spacer, Switch (2)				$ 7.99
