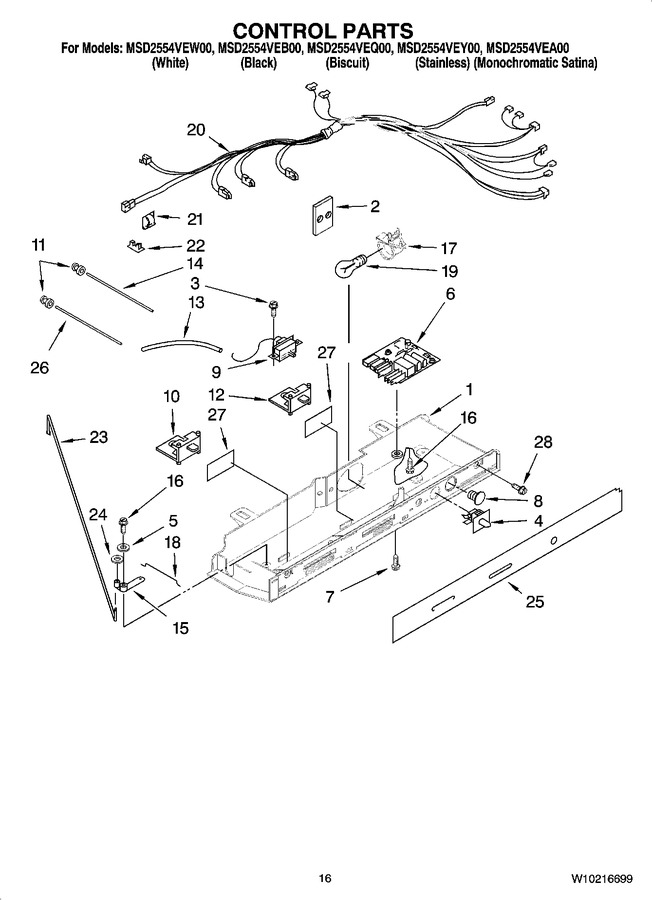

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2181738 | Control Box |
|
- | |||||
| 2 | 2172931 | Heat Shield |
|
$ 63.34 | |||||
| 3 | 2006254 | Screw (2) (Replaces: 489214) |
|
$ 11.82 | |||||
| 4 | WP2149705 | Switch, Light (Replaces: 2149705) |
|
Immediately | $ 36.36 | ||||
| 5 | 489203 | Spring Washer |
|
- | |||||
| 6 | 4388932 | Control Board Assembly (Replaces: 2303824) |
|
Immediately | $ 240.38 | ||||
| 7 | 489392 | Screw (2) (Replaces: 489398) |
|
$ 12.02 | |||||
| 8 | 940014 | Hole Plug |
|
$ 18.33 | |||||
| 9 | WP2315562 | Thermostat (Replaces: 2315562) |
|
Immediately | $ 95.56 | ||||
| 10 | 2181741 | Slide, Air Control |
|
$ 81.44 | |||||
| 11 | 2172906 | Grommet, Light Bar (4) |
|
- | |||||
| 12 | 2161466 | Slide, Thermostat |
|
$ 19.10 | |||||
| 13 | WP2196003 | Tube Barrier (Replaces: 2196001) |
|
$ 7.16 | |||||
| 14 | 2179920 | Light Bar (rc) |
|
$ 37.08 | |||||
| 15 | 2161306 | Pivot Arm |
|
$ 9.65 | |||||
| 16 | 627068 | Screw |
|
$ 10.91 | |||||
| 17 | 4387478 | Light Socket (Replaces: 2162085) |
|
Immediately | $ 99.14 | ||||
| 18 | 2161307 | Connecting Rod, Short |
|
- | |||||
| 19 | W11679940 | Light Bulb (Replaces: 2311792) |
|
Immediately | $ 10.17 | ||||
| 20 | 2310533 | Control Box Harness |
|
$ 282.69 | |||||
| 21 | WP1115374 | Clip, Wiring (Replaces: 1115374) |
|
$ 6.98 | |||||
| 22 | 1115375 | Clip-wiring |
|
$ 11.15 | |||||
| 23 | 2161308 | Connecting Rod |
|
$ 154.90 | |||||
| 24 | 489391 | Fastner, Push-on |
|
$ 7.52 | |||||
| 25 | W10176424 | Escutcheon, Control Box |
|
- | |||||
| 26 | 2179921 | Light Bar (fc) |
|
- | |||||
| 27 | 2175513 | Window |
|
- | |||||
| 28 | WPW10141645 | Screw (2) (Replaces: 489084) |
|
$ 6.90 |
