SELECT A DIAGRAM

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Air Flow Parts


10 - Control Parts


11 - Unit Parts

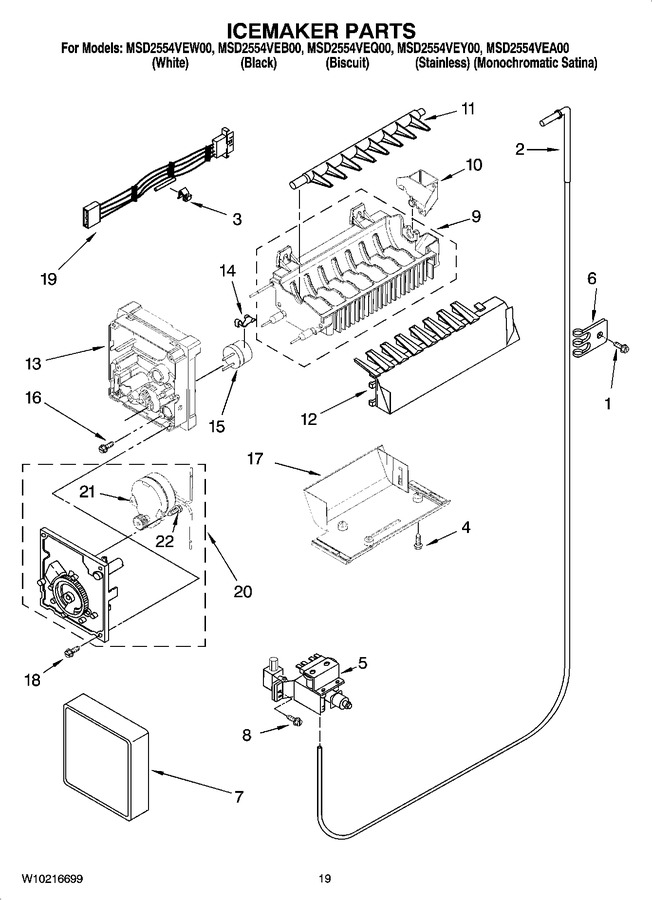

12 - Icemaker Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw   (Replaces: 489084)				$ 6.90
2	WP2256096		Fitting, Water Tube   (Replaces: 2256096)			Immediately	$ 183.47
3	WP628379		Clip, Fuse   (Replaces: 628379)				$ 9.51
4	WP489478		Screw   (Replaces: 489478)				$ 6.98
5	W10408179		Filter Valve Asm   (Replaces: 2315534)			Immediately	$ 86.74
6	WP488366		Clip, Tube   (Replaces: 2208136)				$ 10.06
7	WPW10289690		Cover   (Replaces: 2174358)			Immediately	$ 7.56
8	WPW10141625		Screw   (Replaces: 488649)				$ 19.04
9	WPW10190929		Mold & Heater Assembly (also Order 542638 Silicone Grease)   (Replaces: W10122527)				$ 209.84
10	WPW10272168		Fill Cup   (Replaces: 2304969)				$ 65.56
11	WP627843		Ejector   (Replaces: 627843)				$ 75.24
12	W10297244		Ice Stripper   (Replaces: 2198598)				$ 65.83
13	WP2195914		Support   (Replaces: 2194712)				$ 94.11
14	WP2315522		Retainer,thermostat   (Replaces: 2315522)				$ 9.95
15	WP627985		Thermostat (also Order 542369 Cement Alumilastic)   (Replaces: 627985)			Immediately	$ 98.26
16	8533917		Screw				$ 12.03
17	2303583		Bracket, Ice Maker Mounting				$ 46.76
18	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.07
19	WP2187467		Harness, Wiring   (Replaces: 2187467)				$ 116.04
20	8201515		Module Assembly (includes Items 21 & 22)   (Replaces: 626691)			Immediately	$ 127.48
21	8201515		Motor   (Replaces: 626683)			Immediately	$ 127.48
22	489136		Screw				$ 9.26
100	2198597		Icemaker Assembly   (Replaces: W10190960)			Immediately	$ 164.09
NI	1117510		Torx Key				$ 5.84
NI	542639		Cement, Alumilastic (1-1/4 Oz.)		Appelez-nous	-
NI	WP542638		Grease, Silicone (1/2 Oz)   (Replaces: 542638)			Immediately	$ 10.96
NI	WP503695		Cork Sealer 1/4 Pound)   (Replaces: 503695)				$ 106.15
NI	WP505587		Sealer, Mastic (1 Qt.)   (Replaces: 505587)			Immediately	$ 156.56
NI	72032		Paint, Touch-up (1/2oz.) (black)			Immediately	$ 18.69
NI	72017		Paint, Touch-up (1/2oz.) White			Immediately	$ 11.07
NI	4392901		Paint, Bulk (1 Qt.) (biscuit)		Appelez-nous	-
NI	350942		Paint, Bulk (1 Qt.) (primer, White)				$ 80.69
NI	285006		Paint, Bulk (1 Qt.) (black)   (Replaces: 350939)			Immediately	$ 51.34
NI	350930		Paint, Bulk (1 Qt.) (white)			Immediately	$ 34.39
NI	8171357		Paint, Bulk (1 Qt.) (graphite)				$ 74.08
NI	4392899		Paint, Touch-up (1/2oz.) (biscuit)			Immediately	$ 23.81
NI	80051		Paint, Touch-up (1/2oz.) (graphite)				$ 7.64
NI	799340		Paint, Bulk (1 Qt.) (black)		Appelez-nous	-
NI	799344		Paint, Bulk (1 Qt.) (white)				$ 237.46
NI	4392900		Paint, Bulk (1 Qt.) (biscuit)		Appelez-nous	-
NI	8171358		Paint, Bulk (1 Qt.) (graphite)		Appelez-nous	-
NI	4210463RW		Coil Brush   (Replaces: 8129)			Immediately	$ 26.84
NI	212643		Sealer, Gum (4 Feet)			Immediately	$ 73.92
NI	479502		Tape, Vinyl(3/4 X 108``)				$ 66.77
NI	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
NI	833938		Kit, Terminal Connector				$ 7.26
