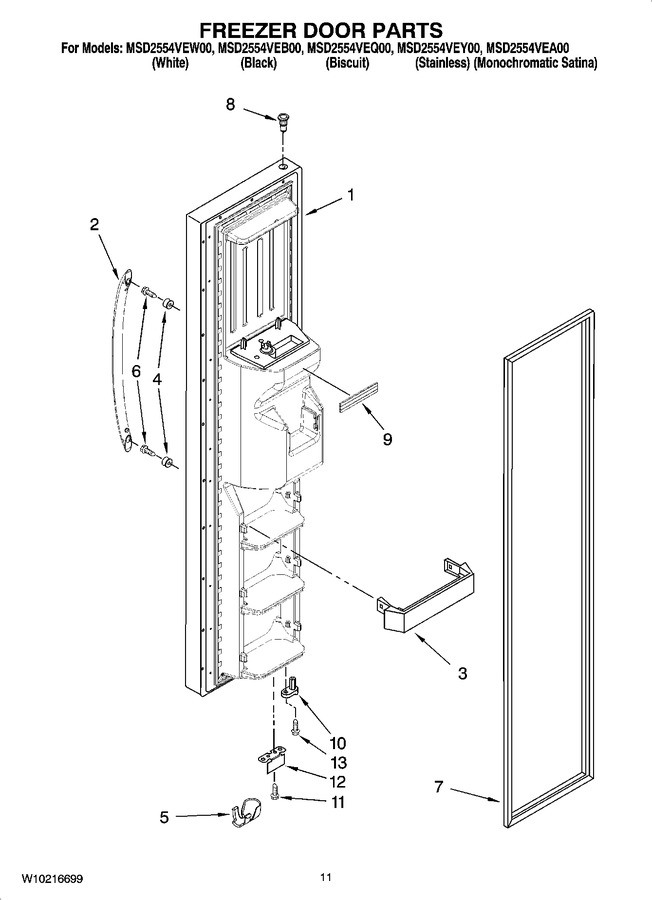

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10153607 | Freezer Door (includes 7 And Dispenser Front Parts) (white) |
|
- | |||||
| 1 | W10184403 | Freezer Door (includes 7 And Dispenser Front Parts) (black) |
|
- | |||||
| 1 | W10184406 | Freezer Door (includes 7 And Dispenser Front Parts) (biscuit) |
|
- | |||||
| 1 | W10159900 | Freezer Door (includes 7 And Dispenser Front Parts) (stainless) |
|
- | |||||
| 1 | W10159897 | Freezer Door (includes 7 And Dispenser Front Parts) (satina) |
|
- | |||||
| 2 | 13004701W | Handle (white) (Replaces: 67006114) |
|
$ 166.26 | |||||
| 2 | 67006115 | Handle (black) |
|
- | |||||
| 2 | 67006982 | Handle (biscuit) |
|
$ 170.06 | |||||
| 2 | W11690159 | Handle (stainless/satina) (Replaces: 67006391) |
|
$ 148.94 | |||||
| 3 | WP2309718 | Door Trim (3) (Replaces: 2309718) |
|
$ 52.70 | |||||
| 4 | WPW10170540 | Stud (Replaces: 2326259) |
|
Immediately | $ 7.66 | ||||
| 5 | 2323581 | Cover, Thimble |
|
- | |||||
| 6 | WP488163 | Screw (4) (Replaces: 488208) |
|
$ 6.79 | |||||
| 7 | 2159074 | Door Gasket, Magnetic (mist Beige) (Replaces: 2309532) |
|
$ 279.17 | |||||
| 7 | 2159082 | Door Gasket, Magnetic (black) (Replaces: 2309533) |
|
$ 284.99 | |||||
| 7 | W10136735 | Door Gasket, Magnetic (apollo Grey) (Replaces: 2327164) |
|
Immediately | $ 229.36 | ||||
| 8 | WP2182181 | Thimble, Top (Replaces: 2308091) |
|
$ 6.98 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: 2219982) |
|
Immediately | $ 20.80 | ||||
| 10 | 2323535 | Door Closer, Upper Cam |
|
$ 33.97 | |||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 9.78 | |||||
| 12 | 2323534B | Bracket, Door Stop (black) |
|
- | |||||
| 12 | 2323534 | Bracket, Door Stop (chrome) |
|
- | |||||
| 13 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.04 |
