Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 22003856 Motor, Variable Speed 10 Special Order $ 322.00

2 22003329 Isolator, Motor 10 Special Order $ 36.83

3 22003686 Bolt, Motor 10 Special Order $ 6.14

4 22001988 Strut Assy-rear 10 Special Order $ 200.90

5 WP9740848 Screw   (Replaces: 22002300) 10 In-Stock Immediately $ 7.07

6 22004102 P Clips 10 Appelez-nous -
7 22003298 Retainer, Wire 10 Special Order $ 7.71

8 22004500 Switch, Pressure-2 Level 10 Appelez-nous -
9 22003268 Cap, Rubber 10 Special Order $ 26.61

10 WP285655 Clamp, Hose   (Replaces: 22002853) 10 In-Stock Immediately $ 7.55

11 WP25001052 Pump Assembly   (Replaces: 25001052) 10 In-Stock Immediately $ 150.51

12 22003605 Base Weld Assembly 10 Appelez-nous -
13 WP62739 Nut   (Replaces: Y052740) 10 Special Order $ 6.85

14 22003545 Adjustable Leg W/foot 10 Appelez-nous -
15 22004212 Motor Harness 10 Special Order $ 86.76

15 22004473 Motor Control Assembly 10 Special Order $ 244.89

16 WP9740848 Screw   (Replaces: 22002300) 10 In-Stock Immediately $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

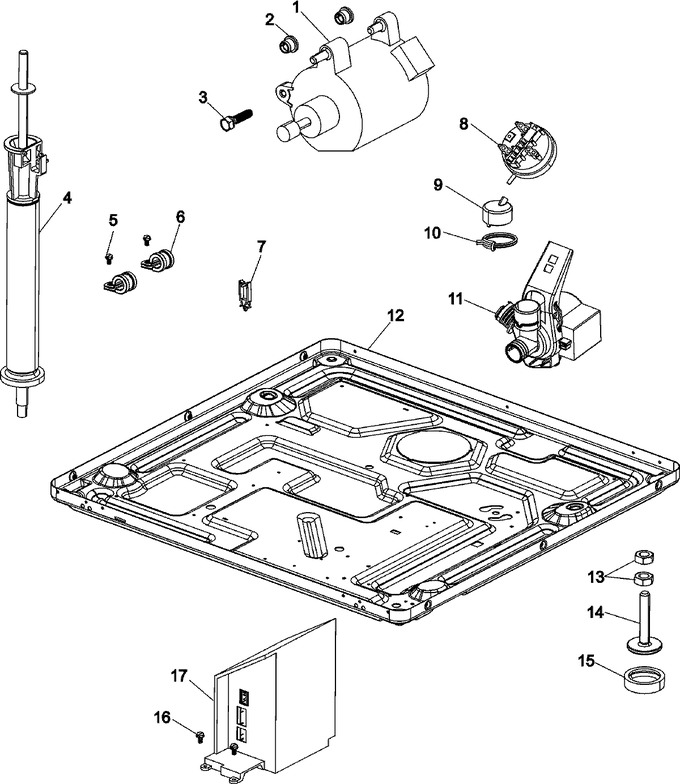

Diagram for NAH6800AWW
