Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 22002960 Strainer, Washer Inlet 10 Special Order $ 5.70

1 Y013783 Gasket, Inlet Hose 10 Special Order $ 18.72

2 WP89503 Hose, 4` Inlet   (Replaces: 33-7891) 10 In-Stock Immediately $ 21.68

3 21001316 Hose, Inlet (hot) 10 Special Order $ 26.34

4 WP22003834 Water Valve W` Thermistor   (Replaces: 22003834) 10 In-Stock Immediately $ 136.93

5 WP489128 Screw   (Replaces: 22002925) 10 Special Order $ 9.79

5 33002212 Bracket, Water Valve 10 Appelez-nous -
6 WP22002892 Retainer, Drain Hose   (Replaces: 22002892) 10 Special Order $ 76.85

7 12001807 Hose, Drain (corr)(80 1/2``)   (Replaces: 22003319) 10 Special Order $ 49.51

8 WP285655 Clamp, Drain Hose   (Replaces: 22001984) 10 In-Stock Immediately $ 7.55

9 33002190 Screw (no.10-3/8``) 10 Appelez-nous -
9 22002704 Cover, Drain Hose 10 Appelez-nous -
10 WP489128 Screw   (Replaces: 22002925) 10 Special Order $ 9.79

10 22004355 Rear Access Panel 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

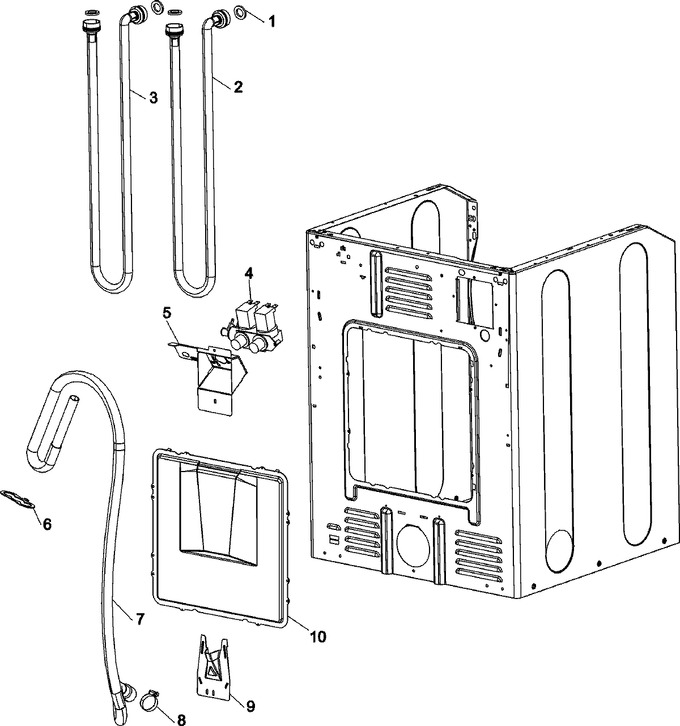

Diagram for NAH6800AWW
