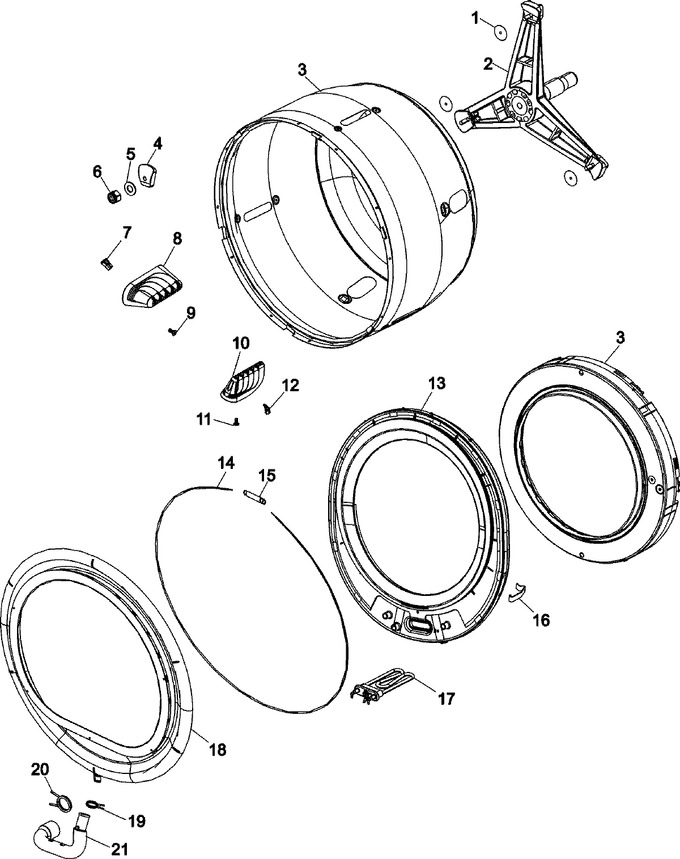

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 22002023 | Washer, Plastic | 10 |
|
$ 8.21 | ||||
| 2 | 22004081 | Spinner Support Assy As-pk Kit | 10 |
|
- | ||||
| 3 | 22003670 | Spinner Assy W` Balance Ring | 10 |
|
- | ||||
| 4 | 22002482 | Washer, Profile | 10 |
|
$ 42.72 | ||||
| 5 | 22002020 | Washer, Spinner Support | 10 |
|
$ 28.18 | ||||
| 6 | WP2207454 | Nut, Spinner Attachment (Replaces: 22002122) | 10 |
|
$ 9.58 | ||||
| 7 | 22001999 | Grommet, Baffle (frt) | 10 |
|
$ 22.80 | ||||
| 8 | 22001986 | Baffle, Drip (front) | 10 |
|
$ 53.83 | ||||
| 9 | 22003556 | Screw | 10 |
|
- | ||||
| 10 | 22001985 | Baffle, Drip (rear) | 10 |
|
$ 61.16 | ||||
| 11 | 22003556 | Screw | 10 |
|
- | ||||
| 12 | 22002009 | Grommet, Baffle (rear) | 10 |
|
$ 20.18 | ||||
| 13 | 22004475 | Tub Cover Assemblely W`heater | 10 |
|
- | ||||
| 14 | 22002327 | Boot Cable Clamp | 10 |
|
$ 40.57 | ||||
| 15 | 22002099 | Spring, Tub | 10 |
|
$ 20.13 | ||||
| 16 | 22002050 | Clip, Tub To Cover | 10 |
|
$ 8.16 | ||||
| 17 | 22003252 | Heater Assembly | 10 |
|
- | ||||
| 18 | 22003070 | Door Boot W/drain (gray) | 10 |
|
- | ||||
| 19 | WP596669 | Clamp, Hose Double Wire (Replaces: 22003072) | 10 |
|
Immediately | $ 7.56 | |||
| 20 | WP596669 | Clamp, Hose Double Wire (Replaces: 22003073) | 10 |
|
Immediately | $ 7.56 | |||
| 21 | WP22004477 | Drain Hose, Door Boot (Replaces: 22004477) | 10 |
|
$ 66.20 |
