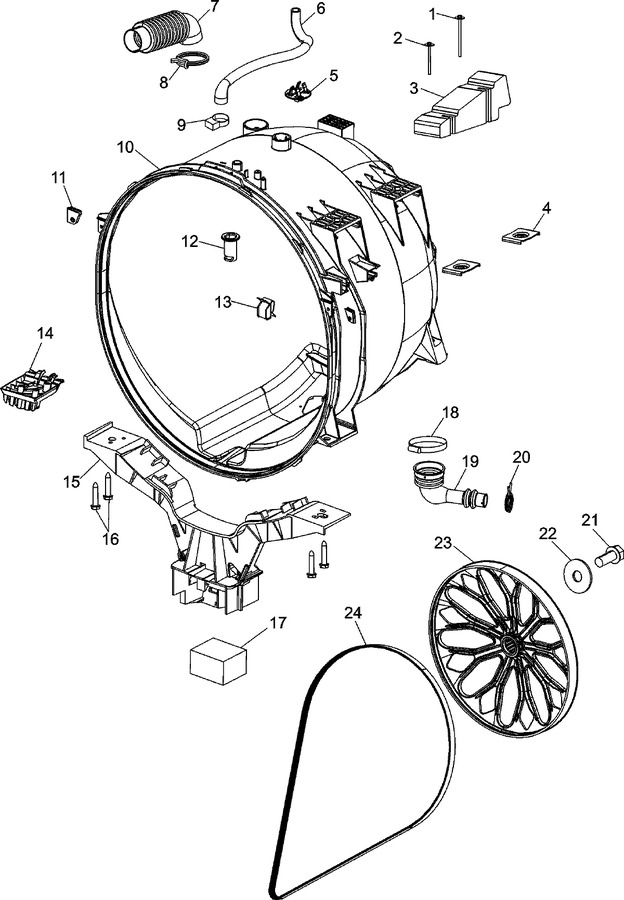

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	22003616		Bolt, Double Sems 3-3\8	10			$ 6.51
2	22003615		Bolt, Double Sems 5-3\8	10			$ 7.64
3	22002102		Weight, Counter Balance	10	Appelez-nous	-
4	22002065		Nut, Counter Balance	10	Appelez-nous	-
5	22002797		Clip, Hose (saddle Horn)	10	Appelez-nous	-
6	22003833		Hose, Tub Shower	10			$ 69.09
7	WP22002083		Hose, Injector   (Replaces: 22002083)	10			$ 124.55
8	WP285655		Clamp, Hose Double Wire   (Replaces: 22003295)	10		Immediately	$ 7.55
9	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
10	22004080		Outer Tub Assembly As-pk Kit	10	Appelez-nous	-
11	22002103		Clip, U	10	Appelez-nous	-
12	22004310		Water Deflector	10			$ 13.68
13	22002006		Clip	10	Appelez-nous	-
14	22003710		Sump Cap W/ Labyrinth Feature	10			$ 34.38
14	22002059		Screw	10			$ 5.33
15	22004472		Bracket, Lower	10			$ 77.47
16	33002973		Screw, No.9-15 X 1.00 Hx Ws	10	Appelez-nous	-
17	22003827		Cushion	10	Appelez-nous	-
18	WP696392		Clamp, Sump Hose   (Replaces: 22002053)	10			$ 7.31
19	22003262		Hose, Tub To Pump	10			$ 27.27
20	WP489503		Clamp - 15/16``   (Replaces: 205161)	10		Immediately	$ 9.68
21	22003686		Bolt, Motor	10			$ 6.14
22	WP22003936		Washer (1 1/4``)   (Replaces: 22003936)	10			$ 7.20
23	22002315		Pulley, Spinner	10			$ 157.26
24	12001788		Belt, Drive   (Replaces: 22002313)	10		Immediately	$ 37.69
