Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 22003626 Support, Door Lock 10 Appelez-nous -
1 W11573574 Screw   (Replaces: 22001995) 10 In-Stock Immediately $ 12.62

2 WP22004435 Latch, Assembly Door Emz   (Replaces: 22004435) 10 Special Order $ 292.00

3 22002234 Shroud, Plastic (wht) 10 Appelez-nous -
4 WP22003269 Door, Lock Hoop Assembly   (Replaces: 22003269) 10 Special Order $ 49.33

5 Y2207497 Door, Linner 10 Appelez-nous -
6 22002038 Clip, Door (double) 10 Appelez-nous -
7 22002063 Screw No.8-18ab Wafer Hd 10 Special Order $ 5.48

8 WP22002798 Hinge, Door   (Replaces: 22002798) 10 Special Order $ 77.72

9 WP98006631 Screw   (Replaces: 22002062) 10 Special Order $ 6.26

10 22002039 Clip, Door (single) 10 Special Order $ 8.15

11 22002063 Screw No.8-18ab Wafer Hd 10 Special Order $ 5.48

12 WP22003075 Grommet, Vent Tube   (Replaces: 22003075) 10 Special Order $ 50.41

13 22003850 Vent Tube Assembly 10 Special Order $ 45.03

14 Y2207706 Door As Pack 10 Appelez-nous -
15 33002882 Panel, Front As Pack (wht) T 10 Appelez-nous -
16 WP33001787 Screw, Hinge   (Replaces: 33001787) 10 Special Order $ 10.45

17 33001764 Cover, Hinge Hole (wht) 10 Special Order $ 36.41

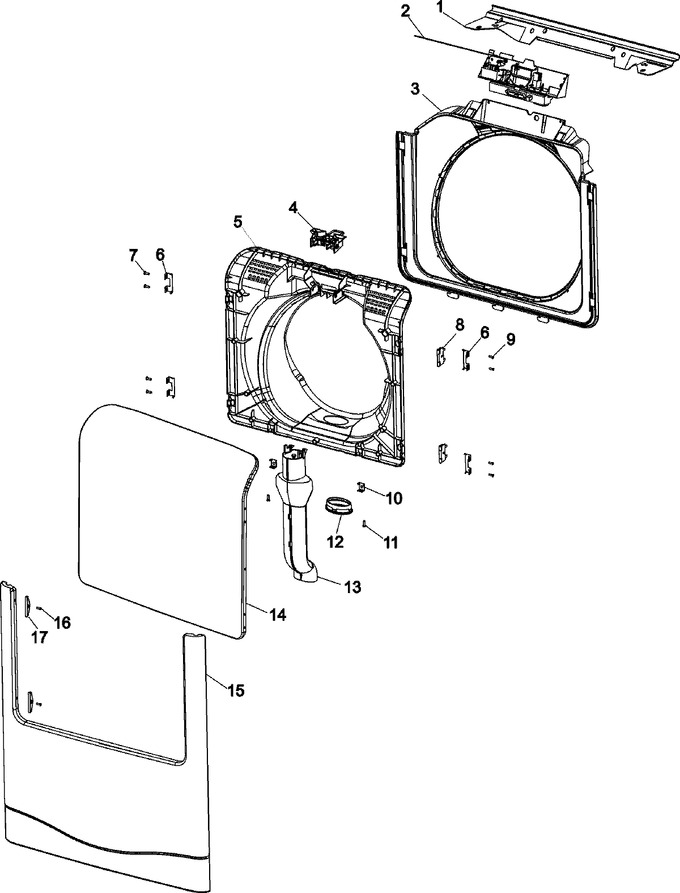

    View Diagram in Separate Window     Print Icon   Print Part List
