Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 33002893 Console Back Panel 10 Appelez-nous -
2 WP9740848 Screw   (Replaces: 22002300) 10 In-Stock Immediately $ 7.07

3 22004486 Control Board As Pk - Led 10 Appelez-nous -
4 WP9740848 Screw   (Replaces: 22002300) 10 In-Stock Immediately $ 7.07

5 Y2207692 Washer Console As Pack 10 Appelez-nous -
6 22003849 Siphon Cap 10 Special Order $ 38.07

7 22003848 Siphon Cup 10 Special Order $ 28.35

8 22003321 Grid, Dispenser 10 Appelez-nous -
9 22003845 Dispenser Cover (flume) 10 Appelez-nous -
10 22003832 Fill Hose, Dispenser 10 Special Order $ 48.05

11 12001930 Dispenser Valve   (Replaces: 22003846) 10 Special Order $ 178.80

12 2207501 Dispenser, Asy W/valve 10 Appelez-nous -
13 W11772394 Screw, Dispenser Lid   (Replaces: 22003681) 10 In-Stock Immediately $ 10.94

14 Y2207438 Dispenser, Lid And Bezel Ass`y 10 Appelez-nous -
15 2207516 Top Cover W/tape As Packed 10 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

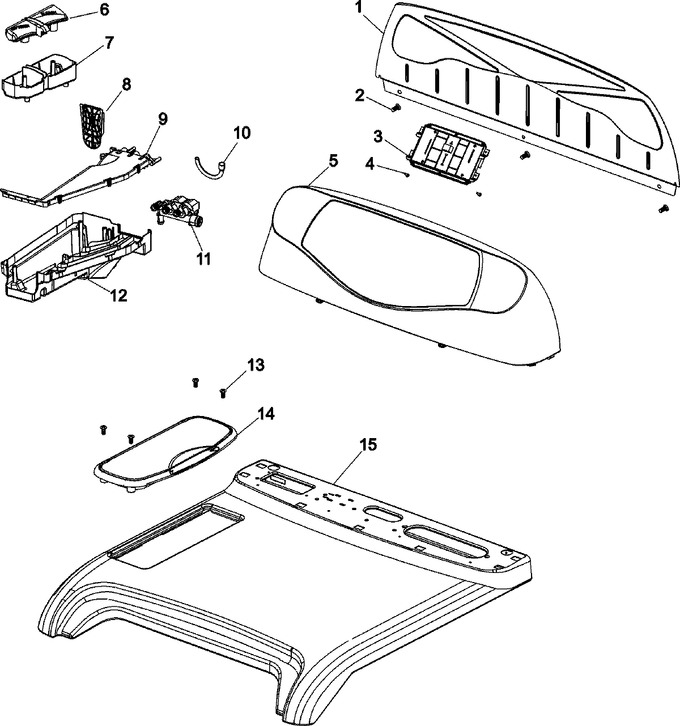

Diagram for NAH6800AWW
