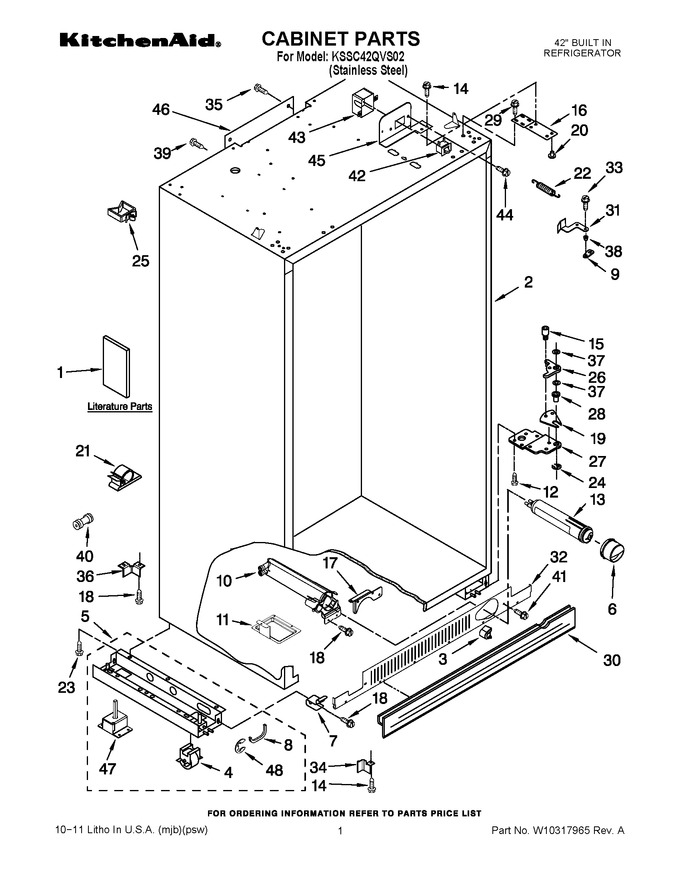

01 - Cabinet Parts


02 - Cabinet Trim Parts


03 - Freezer Shelf Parts


04 - Refrigerator Liner Parts


05 - Control Panel Parts


06 - Top Grille And Unit Cover Parts


07 - Refrigerator Shelf Parts


08 - Freezer Liner And Air Flow Parts


09 - Motor And Ice Container Parts


10 - Refrigerator Door Parts


11 - Freezer Door Parts


12 - Dispenser Front Parts


13 - Upper Unit Parts


14 - Lower Unit And Tube Parts


15 - Icemaker Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10159832		Service & Wiring Sheet		Appelez-nous	-
1	W10161714		Use & Care Guide		Appelez-nous	-
1	W10205643		Energy Guide		Appelez-nous	-
1	W10291426		Installation Instructions		Appelez-nous	-
1	2306424		Icemaker And Ingredient Care Center Service Sheet		Appelez-nous	-
1	W10300878		Main Control Service Sheet		Appelez-nous	-
2	N/P		Cabinet (not A Serviceable Part)		Appelez-nous	-
3	WP2260503B		Button, Filter   (Replaces: 2260503B)				$ 65.50
4	4388239		Roller, Front & Rear (4)   (Replaces: 836054)			Immediately	$ 65.13
5	W10860229		Support, Leveler Assembly (freezer Side)   (Replaces: W10279275)				$ 327.29
5	W10860448		Support, Leveler Assembly (refrigerator Side)   (Replaces: W10138423)			Immediately	$ 328.28
6	WP2260518B		Cap, Water Filter (black)   (Replaces: 2260518B)			Immediately	$ 25.43
7	W10839844		Mounting Stud, Grille   (Replaces: 2307640)				$ 37.08
8	2307584		Grommet, Crossover Tube				$ 20.06
9	2005783		Cam, Door Closer				$ 26.20
10	WPW10121140		Housing, Water Filter   (Replaces: W10121140)			Immediately	$ 154.76
11	2318189		Tray, Drip Filter				$ 127.49
12	3400525		Screw				$ 12.83
13	EDR3RXD1B		Filter, Water   (Replaces: 4396841)			Immediately	$ 49.99
14	WP489399		Screw   (Replaces: 489399)				$ 6.26
15	W11769878		Screw, Door Stop   (Replaces: 3400230)				$ 10.94
16	2257644		Hinge (top)				$ 152.55
17	W11755873		Bracket, Mtg (water Filter)   (Replaces: W10223655)				$ 68.85
18	WP489464		Screw   (Replaces: 489464)			Immediately	$ 7.05
19	WP2004994		Lock, Adjustable Bushing   (Replaces: 2004994)			Immediately	$ 7.16
20	2300082		Bushing				$ 13.44
21	2004514		Clip-conduit		Appelez-nous	-
22	W11805224		Spring, Door Closure   (Replaces: 2221242)		Appelez-nous	-
23	W11624204		Screw   (Replaces: 486194)				$ 12.62
24	WP489236		Retaining Ring, Adjustable Bushing   (Replaces: 2005008)			Immediately	$ 10.95
25	W10129069		Wire Clip (5)		Appelez-nous	-
26	2006342		Gap, Cover Assembly (bottom)		Appelez-nous	-
27	WP2006780		Hinge (bottom) (freezer Side)   (Replaces: 2006780)				$ 256.57
27	W10527053		Hinge (bottom) (refrigerator Side)   (Replaces: 2006779)				$ 117.63
28	WP2302876		Bushing, Adjustable   (Replaces: 2302876)			Immediately	$ 77.76
29	W11721628		Screw 1/4-20 X 5/8   (Replaces: 8533913)				$ 12.67
30	2209025B		Skirt-grille, Bottom (black)				$ 48.90
31	WP2307857		Extension Arm, Door Closer   (Replaces: 2307857)			Immediately	$ 67.97
32	2325185B		Grille Bottom, Front (black)				$ 78.44
33	W11177574		Screw   (Replaces: W10004850)				$ 12.72
34	2006616		Bracket, Support Base (front) (left)				$ 78.45
34	2006556		Bracket, Support Base (front) (right)				$ 31.89
35	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.07
36	2006617		Bracket, Support Base (rear) (2)		Appelez-nous	-
37	WP2006346		Washer   (Replaces: 2006346)			Immediately	$ 10.08
38	WP2316859		Bushing, Extension Arm   (Replaces: 2316859)			Immediately	$ 46.46
39	WP1163283		Screw   (Replaces: 1163283)				$ 6.47
40	WP2300868		Connector, Water Tube (1/4``)   (Replaces: W10271541)			Immediately	$ 26.15
40	WP4373559		Connector, Water Tube (5/16-1/4``)   (Replaces: 2209709)				$ 69.62
41	WP8281163		Screw   (Replaces: 8281163)			Immediately	$ 9.17
42	W11457217		Switch, Rocker Arm (freezer Door Side)   (Replaces: 1115373)				$ 34.36
42	W11384469		Switch, Rocker Arm (refrigerator Door Side)   (Replaces: 1118894)			Immediately	$ 33.51
43	2215938		Cover, Switch (2)				$ 81.24
44	WP965173		Screw (2)   (Replaces: 487415)			Immediately	$ 9.65
45	W10741111		Bracket, Switch (right   (Replaces: 2221097)				$ 57.74
45	2221096		Bracket, Switch (left)				$ 83.88
46	2215612		Cover, Rear		Appelez-nous	-
47	2005032		Leveler			Immediately	$ 171.49
48	2006841		Ring				$ 79.43
