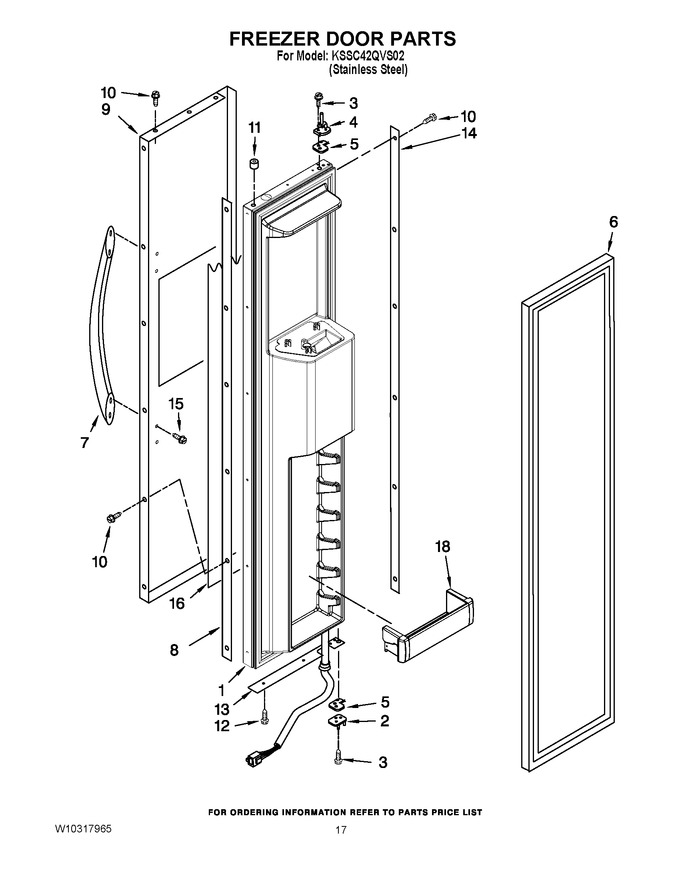

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10292446 | Freezer Door Panel (includes Item No.14) |
|
- | |||||
| 2 | W11752085 | Hinge, Bottom (Replaces: 2302879) |
|
$ 54.06 | |||||
| 3 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.22 | ||||
| 4 | W11724512 | Hinge, Top (Replaces: 2266854) |
|
$ 267.86 | |||||
| 5 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 97.26 | ||||
| 6 | WP2266905 | Door Gasket, Magnetic (Replaces: 2222814) |
|
Immediately | $ 282.56 | ||||
| 7 | WP2316868 | Handle, Door (stainless Steel) (Replaces: 2316868) |
|
Immediately | $ 241.23 | ||||
| 8 | 2309060 | Spacer, Door-skin (handle Side) (for Stainless Steel Model) |
|
- | |||||
| 9 | 2307310 | Skin, Door (stainless Steel) |
|
- | |||||
| 10 | WP8281250 | Screw (stainless Steel) (Replaces: 8281250) |
|
$ 9.79 | |||||
| 11 | 2005433 | Spacer, Door-skin (top) |
|
$ 20.00 | |||||
| 12 | W10759522 | Screw (Replaces: 488568) |
|
$ 6.98 | |||||
| 13 | 2257385 | Spacer, Door-skin (bottom) |
|
- | |||||
| 14 | W10142296 | Spacer, Door-skin Hinge Side) |
|
- | |||||
| 15 | WP308544 | Screw, Handle (Replaces: 308544) |
|
Immediately | $ 6.98 | ||||
| 16 | 2328901 | Filler, Door (top) |
|
- | |||||
| 16 | 2328902 | Filler, Door (bottom) |
|
- | |||||
| 18 | W10323602 | Bin, Door (3) (Replaces: 2222776) |
|
$ 84.02 |
