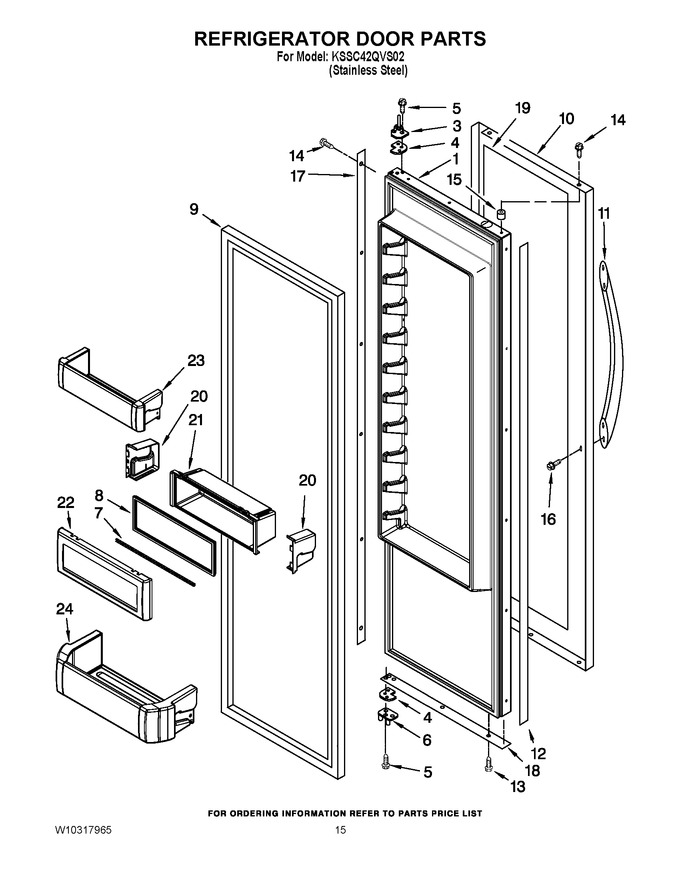

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10193490 | Refrigerator Door Panel (includes Item No.9) |
|
- | |||||
| 3 | W11724512 | Hinge Assembly, Top (Replaces: 2266854) |
|
$ 267.86 | |||||
| 4 | W11673500 | Spacer-door, Top & Bottom (Replaces: 2316804) |
|
Immediately | $ 97.26 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.22 | ||||
| 6 | 2302878 | Hinge Assembly, Bottom |
|
Immediately | $ 78.01 | ||||
| 7 | W11448696 | Rail, Lid (Replaces: 2222796) |
|
$ 138.59 | |||||
| 8 | W11448696 | Gaasket, Utility Bin (Replaces: 2222982) |
|
$ 138.59 | |||||
| 9 | WP2266902 | Door Gasket, Magnetic (Replaces: 2222811) |
|
$ 283.11 | |||||
| 10 | 2307753 | Skin, Door (stainless Steel) |
|
- | |||||
| 11 | WP2316868 | Handle, Door (stainless Steel) (Replaces: 2316868) |
|
Immediately | $ 241.23 | ||||
| 12 | 2309060 | Spacer, Door-skin (handle Side) (for Stainless Steel Model) |
|
- | |||||
| 13 | W10759522 | Screw (Replaces: 488568) |
|
$ 6.98 | |||||
| 14 | WP8281250 | Screw, 8-15 X .500 (stainless Steel) (Replaces: 8281250) |
|
$ 9.79 | |||||
| 15 | 2005433 | Spacer, Door-skin (top) |
|
$ 20.00 | |||||
| 16 | WP308544 | Screw, Handle (Replaces: 308544) |
|
Immediately | $ 6.98 | ||||
| 17 | W10142296 | Spacer, Door-skin Hinge Side) |
|
- | |||||
| 18 | 2004934 | Spacer, Door-skin (bottom) |
|
- | |||||
| 19 | 2005326 | Filler, Door |
|
- | |||||
| 20 | WPW10323173 | End Cap (left Side) (Replaces: 2222920) |
|
$ 7.37 | |||||
| 20 | WPW10323172 | End Cap (right Side) (Replaces: 2222919) |
|
$ 7.37 | |||||
| 21 | W10323042 | Bin, Utility Center (Replaces: 2222922) |
|
$ 191.94 | |||||
| 22 | W11553221 | Door, Utility Bin (Replaces: 2257616) |
|
Immediately | $ 59.69 | ||||
| 23 | W10323599 | Bin, Door (3) (Replaces: 2222773) |
|
$ 125.67 | |||||
| 24 | W10323747 | Bin, Door (Replaces: 2222770) |
|
$ 124.60 |
