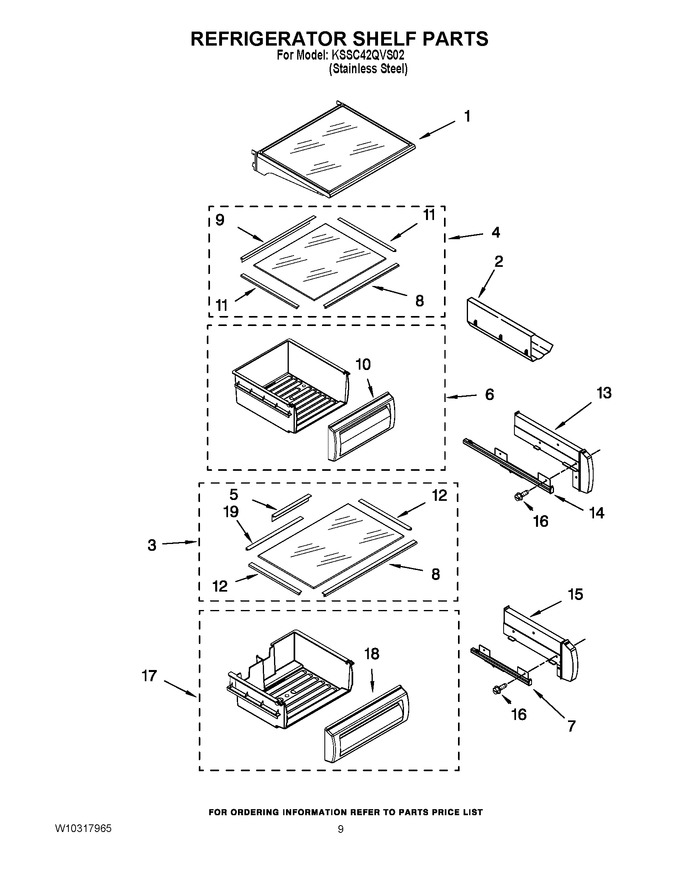

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2222592 | Shelf Assembly |
|
- | |||||
| 2 | W10777924 | Rack, Wine (Replaces: 2179375) |
|
$ 21.24 | |||||
| 3 | 2256277 | Assembly, Meat Pan Cover |
|
- | |||||
| 4 | W10849998 | Assembly, Crisper Cover (Replaces: 2256427) |
|
$ 243.66 | |||||
| 5 | 2257582 | Trim, Glass Rear |
|
- | |||||
| 6 | W10407624 | Crisper Pan (2) (Replaces: 2252412) |
|
$ 152.09 | |||||
| 7 | 2302955 | Slide, Meat Pan (right Side) (Replaces: W10267075) |
|
$ 294.16 | |||||
| 7 | 2302954 | Slide, Meat Pan (left Side) (Replaces: W10267073) |
|
$ 294.42 | |||||
| 8 | 2302831 | Trim, Glass Front |
|
- | |||||
| 9 | 2256254 | Trim, Glass Rear |
|
- | |||||
| 10 | 2256248 | Front, Crisper Pan |
|
- | |||||
| 11 | 2252255 | Trim, Glass Side Crisper Pan |
|
- | |||||
| 12 | 2256250 | Trim, Glass Side Meat Pan |
|
- | |||||
| 13 | 2256222 | Spacer, Crisper (right Side (2)) |
|
$ 76.49 | |||||
| 13 | 2256223 | Spacer, Crisper (left Side (2)) |
|
$ 72.42 | |||||
| 14 | 2302956 | Slide, Crisper (left Side) (Replaces: W10266848) |
|
$ 256.05 | |||||
| 14 | 2302957 | Slide, Crisper (right Side) (Replaces: W10266850) |
|
$ 195.71 | |||||
| 15 | 2256243 | Spacer, Meat Pan (left Side) |
|
$ 71.18 | |||||
| 15 | 2256244 | Spacer, Meat Pan (right Side) |
|
$ 88.88 | |||||
| 16 | W11830745 | Screw (right Side-(8-18 X 1.375)) (Replaces: 8533929) |
|
- | |||||
| 16 | WP8533928 | Screw (left Side-(8-18 X .750)) (Replaces: 8533928) |
|
Immediately | $ 7.04 | ||||
| 17 | W10407627 | Pan Assembly Meat (Replaces: 2256369) |
|
$ 150.66 | |||||
| 18 | WP2256366 | Front, Meat Pan (Replaces: 2256366) |
|
$ 162.96 | |||||
| 19 | 2257611 | Trim, Glass |
|
- |
