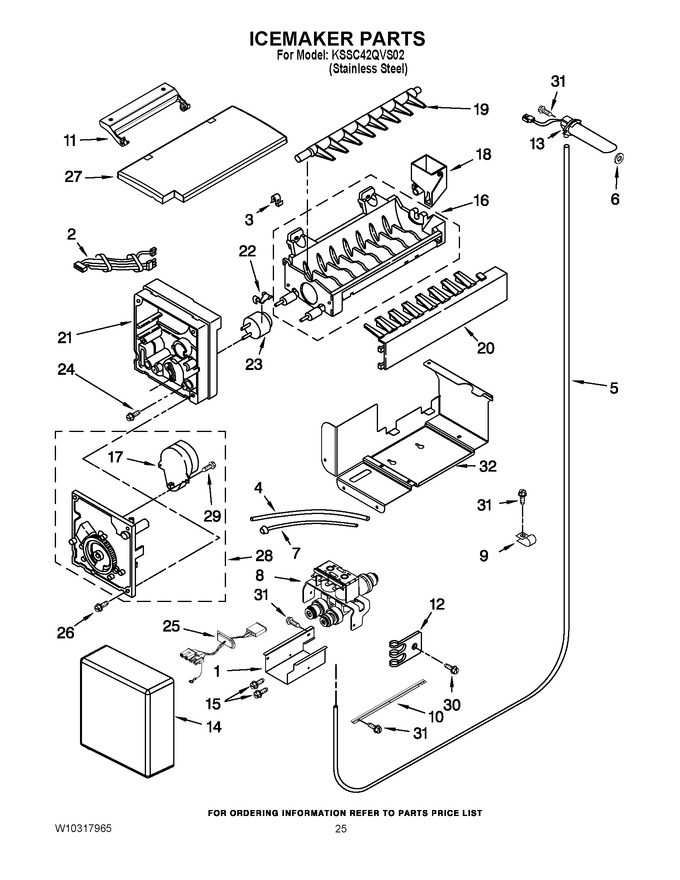

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2320601 | Shield, Valve |
|
$ 103.00 | |||||
| 2 | 2310191 | Wire Assembly, Icemaker |
|
$ 138.83 | |||||
| 3 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.51 | |||||
| 4 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 58.19 | |||||
| 5 | 2320658 | Water Tube |
|
$ 71.00 | |||||
| 6 | 2302758 | Seal Gasket |
|
- | |||||
| 7 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
Immediately | $ 28.41 | ||||
| 8 | WPW10159842 | Valve, Solenoid (Replaces: W10159842) |
|
Immediately | $ 288.00 | ||||
| 9 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 9.89 | |||||
| 10 | 2320559 | Support, Valve |
|
$ 76.10 | |||||
| 11 | WP2198641 | Bracket, Icemaker Cover (Replaces: 2198641) |
|
$ 6.47 | |||||
| 12 | WP488366 | Clamp, Nylon Valve (Replaces: 2305274) |
|
$ 10.06 | |||||
| 13 | W10460127 | Tube, Water Inlet (Replaces: 2302756) |
|
$ 178.51 | |||||
| 14 | 2257538 | Cover |
|
- | |||||
| 15 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 16 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 209.84 | |||||
| 17 | N/P | Motor, (not Serviceable Order Item 28) |
|
- | |||||
| 18 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 46.07 | |||||
| 19 | WP627843 | Ejector (Replaces: 627843) |
|
$ 75.24 | |||||
| 20 | W10297244 | Ice Striper (Replaces: 2198598) |
|
$ 65.83 | |||||
| 21 | WP2195914 | Support (Replaces: 2194712) |
|
$ 94.11 | |||||
| 22 | WP2315522 | Retainer Thermostat (2) (Replaces: 2315522) |
|
$ 9.95 | |||||
| 23 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 628397) |
|
Immediately | $ 98.26 | ||||
| 24 | 8533917 | Screw |
|
$ 12.03 | |||||
| 25 | W10139199 | Wire Assembly |
|
$ 124.97 | |||||
| 26 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.07 | ||||
| 27 | WPW10504753 | Cover, Icemaker (Replaces: 2317040) |
|
$ 82.76 | |||||
| 28 | W10190935 | Module Assembly (includes Items 17 & 29) (Replaces: 626680) |
|
Immediately | $ 99.06 | ||||
| 29 | 489136 | Screw, (2) |
|
$ 9.26 | |||||
| 30 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.05 | ||||
| 31 | W11624204 | Screw (Replaces: 486194) |
|
$ 12.62 | |||||
| 32 | 2252228 | Bracket, Icemaker Mounting |
|
- | |||||
| 100 | WPW10277448 | Complete Icemaker Assembly (Replaces: 2320636) |
|
Immediately | $ 208.29 | ||||
| NI | WPW10395657 | Ice Container Assembly (Replaces: W10134767) |
|
$ 269.03 | |||||
| NI | 8537055 | Cleaner, Stainless Steel |
|
- | |||||
| NI | W10129081 | Handle Kit For Previous Architect Series (stainless) |
|
$ 218.35 |
