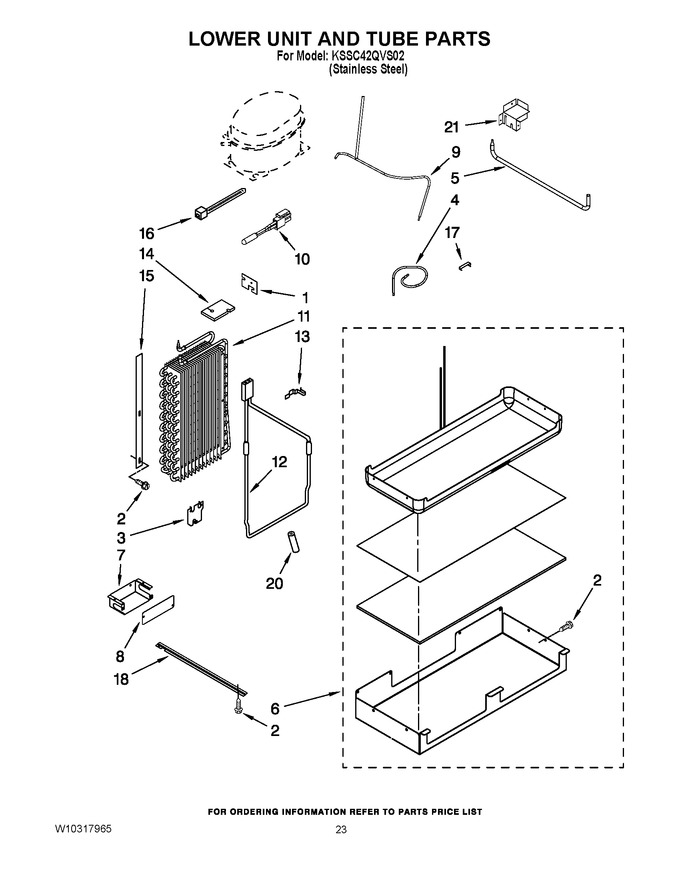

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10139908		Cover, Seal				$ 11.20
2	W11624204		Screw   (Replaces: 486194)				$ 12.62
3	W10157752		Bracket		Appelez-nous	-
4	2309076		Suction Tube				$ 136.59
5	W10388653		Tube, Connect (drier/restrictor)   (Replaces: 2309070)			Immediately	$ 34.70
6	W11623101		Drain Pan Assy.   (Replaces: W10281063)			Immediately	$ 337.73
7	W10151288		Cover, Wiring		Appelez-nous	-
8	W10153595		Cover, Box		Appelez-nous	-
9	W10412488		Tube, Discharge   (Replaces: W10121371)				$ 103.44
10	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
11	WPW10205101		Evaporator   (Replaces: W10205101)			Immediately	$ 278.08
12	W11812025		Heater, Defrost   (Replaces: W10140161)				$ 65.56
13	1113048		Clamp, Heater (2)		Appelez-nous	-
14	W10157882		Seal, Return Air		Appelez-nous	-
15	2220832		Gasket, Evaporator		Appelez-nous	-
16	4389107		Wire Tie		Appelez-nous	-
17	W10169509		Clip, Heat Exchanger		Appelez-nous	-
18	2320554		Support, Drain Pan		Appelez-nous	-
20	2215648		Dampener				$ 11.32
21	W10160981		Bracket Assy		Appelez-nous	-
