02 - Door Parts


03 - Door Parts


04 - Cabinet Parts


05 - Shelves And Supports


06 - Refrigerator Control Assembly, Damp


07 - System And Automatic Defrost Parts


08 - Ice Maker Parts


09 - Ice Maker Installation Parts

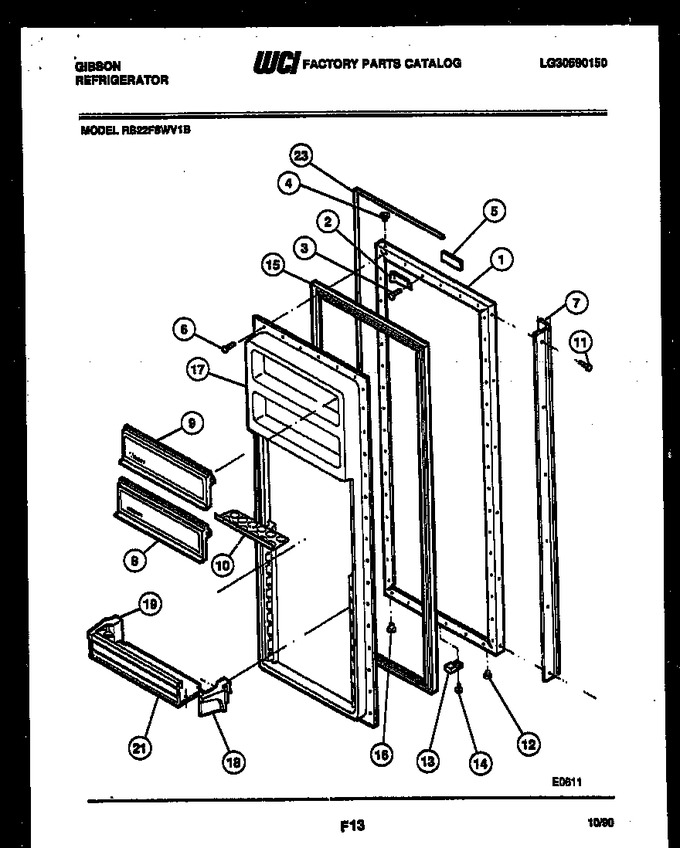

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	G179399-11		Panel - Exterior Refrigerator - Almond		Appelez-nous	-
1	G179399-09		Panel - Exterior Refrigerator - Wheat		Appelez-nous	-
1	G179399-10		Panel - Exterior Refrigerator - Coffee		Appelez-nous	-
1	G179399		Panel - Exterior Refrigerator - White		Appelez-nous	-
1	G179399-08		Panel - Exterior Refrigerator - Avocado		Appelez-nous	-
2	5303200272		Closer-door		Appelez-nous	-
3	3001020		Screw - Closer Mounting		Appelez-nous	-
4	5303001022		Bearing-hinge		Appelez-nous	-
5	5317511702		Frame - Nameplate		Appelez-nous	-
6	218843801		Screw   (Replaces: 5303001001)				$ 14.41
7	G170619-03		Handle-door		Appelez-nous	-
8	G170930-14		Door-compartment		Appelez-nous	-
9	G170930-14		Door-compartment		Appelez-nous	-
10	5317394819		Container-egg		Appelez-nous	-
11	5308011745		Screw				$ 10.38
12	5315230801		Plug-button		Appelez-nous	-
13	5308000790		Bumper, Light Switch				$ 3.86
14	218843801		Screw   (Replaces: 5303001001)				$ 14.41
15	5303200473		Gasket - Refrigerator		Appelez-nous	-
16	5308012007		Bearing-hinge		Appelez-nous	-
17	G174411-02		Panel - Inner		Appelez-nous	-
18	5303206682		Support - Shelf Rh (4)		Appelez-nous	-
19	5303206683		Support - Shelf Lh (4)		Appelez-nous	-
21	5303206688		Shelf - Door (4)		Appelez-nous	-
23	G170573-05		Trim-door		Appelez-nous	-
5A	G188378-06		Label-nameplate Upper		Appelez-nous	-
5B	3019041		Label-nameplate Lower		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
