Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3206358 Wiring Harness Appelez-nous -
2 5305877995 Strip-sealing In-Stock Immediately $ 55.29

3 5308000039 Screw Appelez-nous -
4 5308010253 Screw - Ice Maker Mounting (2) Appelez-nous -
5 5303001199 Clamp Special Order $ 65.92

6 240396801 Clamp, Nylon   (Replaces: 5308000133) Special Order $ 19.13

7 240396801 Clamp, Nylon   (Replaces: 5308000133) Special Order $ 19.13

8 5304455846 Clamp-steel Tube   (Replaces: 5303001549) Special Order $ 10.63

9 5303001193 Clamp-inlet Tube To Rear Panel Special Order $ 16.30

10 3206360 Water Supply Adapter Special Order $ 94.66

11 08000200 Nut-nylon Appelez-nous -
12 5303001147 Plug - Rear Panel & Coil Cover (2) Special Order $ 22.30

13 3001557 Adamper Plug - Rear Panel Appelez-nous -
14 5303208650 Tube - Water Fill - Plastic Appelez-nous -
15 5308010269 Tube-water Inlet Appelez-nous -
16 5314368805 Tube-valve To Ice Maker Appelez-nous -
17 5303001568 Container-ice Appelez-nous -
18 3206356 Valve-solenoid Appelez-nous -
19 65801LF Saddle-valve Kit   (Replaces: 5308000247) In-Stock Immediately $ 8.27


    View Diagram in Separate Window     Print Icon   Print Part List

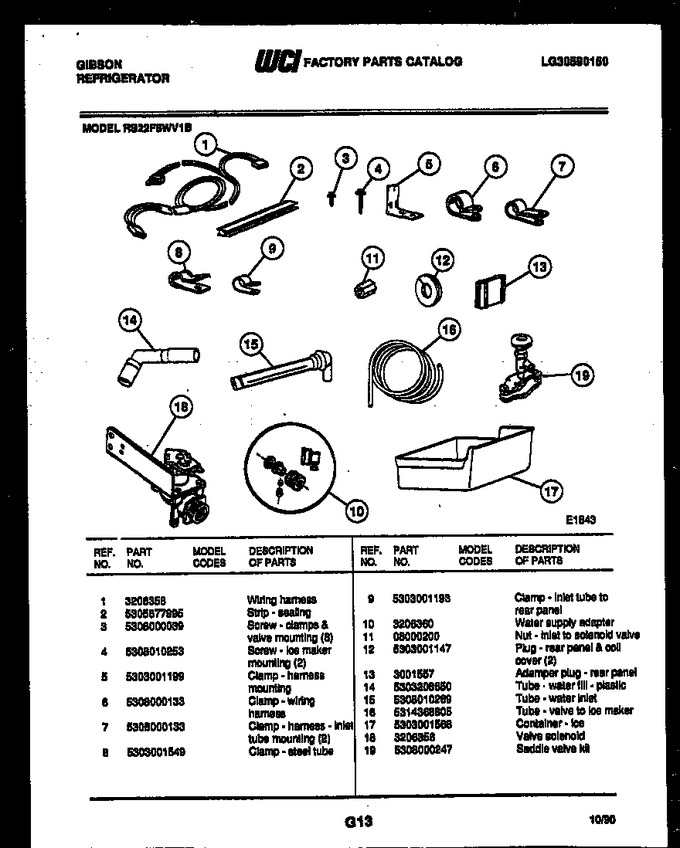

Diagram for RS22F8WV1B
