Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5300189359 Control Box - Temperature Appelez-nous -
2 5308101253 Screw - Box Mounting (2) Appelez-nous -
3 301269 Insulation - Box Rear Appelez-nous -
4 215846602 Timer   (Replaces: 5300187484) In-Stock Immediately $ 28.20

5 5304455649 Screw   (Replaces: 5303001259) Special Order $ 17.01

6 5303001179 Light Bulb Appelez-nous -
7 5308000129 Light Socket Special Order $ 62.16

8 5308037932 Sleeve-plastic Tube Appelez-nous -
9 5308000068 Control, Temperature Special Order $ 166.58

10 5303001260 Screw Special Order $ 6.73

11 5308010380 Knob, Temperature Control Appelez-nous -
12 5303001252 Control Box-damper Appelez-nous -
13 5308000771 Air, Deflector Appelez-nous -
14 5300185373 Rivet, Expansion Appelez-nous -
15 5316521701 Knob, Damper Control Appelez-nous -
16 5303001277 Ferrule, Outer Appelez-nous -
17 5303001276 Ferrule, Inner Appelez-nous -
18 5316465401 Cover, Fan Appelez-nous -
19 218843801 Screw   (Replaces: 5303001001) Special Order $ 14.41

20 5308000124 Ring-fan Orifice Special Order $ 53.58

21 5308000010 Fan Blade In-Stock Immediately $ 49.03

22 5303001226 Bracket-front Appelez-nous -
23 5300158289 Motor, Fan In-Stock Immediately $ 149.94

24 5300157666 Bushing - Motor Mtg, (2) Appelez-nous -
25 5303001227 Bracket-rear Appelez-nous -
26 5308000107 Bracket-connector Special Order $ 33.23

27 218906802 Light Socket - Freezer - Upper   (Replaces: 5308000815) Special Order $ 17.72

28 5303001179 Light Bulb Appelez-nous -
29 3200803 Light Shield-freezer Upper Appelez-nous -
30 5303001213 Support - Sheld (6) Appelez-nous -
31 3015073 Light Shield-refrigerator Appelez-nous -
11A 3015074 Wiring Harness-control (non-illustrated) Appelez-nous -
11B 5303001231 Clip - Grounding (non-illustrated) Appelez-nous -
16A 5303001280 Gasket-ferrule (non-illustrated) Appelez-nous -
20A 5303209814 Nut U, Type (2) (non-illustrated) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

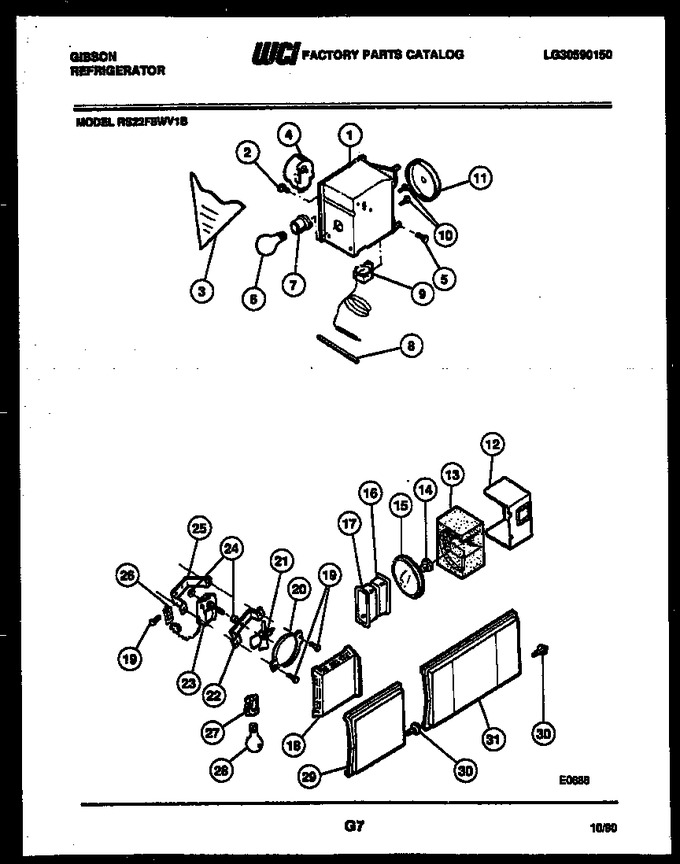

Diagram for RS22F8WV1B
