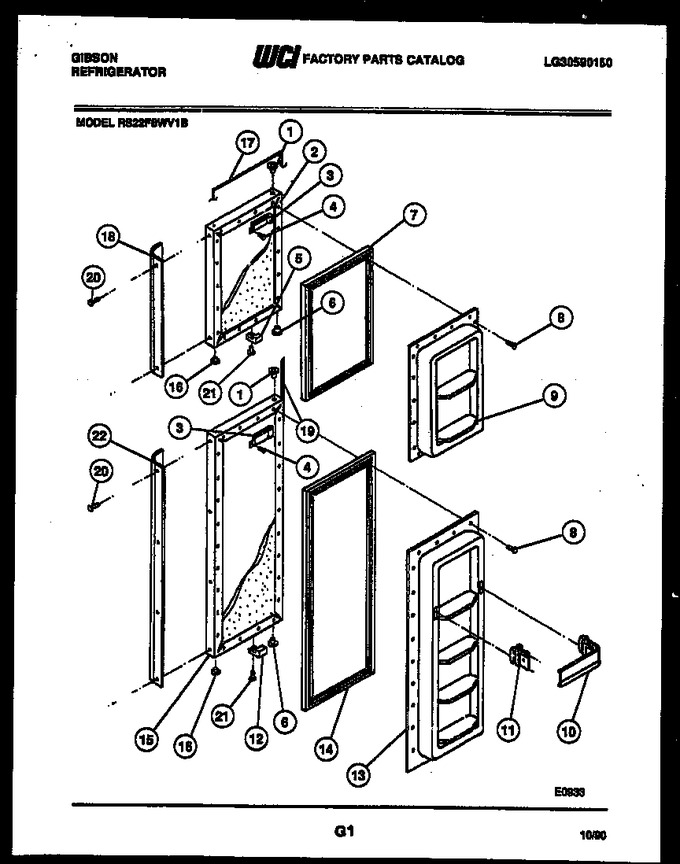

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5303001022		Bearing-hinge Upper (2)		Appelez-nous	-
2	G179402-10		Panel-exterior-coffee		Appelez-nous	-
2	G179402-11		Panel-exterior-almond		Appelez-nous	-
2	G179402-09		Panel-exterior-wheat		Appelez-nous	-
2	G179402-08		Panel-exterior-avocado		Appelez-nous	-
2	G179402		Panel-exterior-white		Appelez-nous	-
3	5303200272		Closer (2)		Appelez-nous	-
4	3001020		Screw - Closer Mounting (2)		Appelez-nous	-
5	5308002802		Bumper-light Switch				$ 16.72
6	5308012007		Bearing-hinge Lower (2)		Appelez-nous	-
7	5303200799		Gasket - Upper Freezer		Appelez-nous	-
8	218843801		Screw   (Replaces: 5303001001)				$ 14.41
9	G169488-02		Panel-interior Upper		Appelez-nous	-
10	G154541-46		Rack-door (6)		Appelez-nous	-
11	3204855		Support Ls (6)		Appelez-nous	-
12	5308000790		Bumper, Light Switch				$ 3.86
13	G169489-02		Panel-interior Lower		Appelez-nous	-
14	5303200800		Gasket - Lower Freezer		Appelez-nous	-
15	G170478		Panel-exterior-white		Appelez-nous	-
15	G170478-08		Panel-exterior-avocado		Appelez-nous	-
15	G170478-09		Panel-exterior-wheat		Appelez-nous	-
15	G170478-10		Panel-exterior-coffee		Appelez-nous	-
15	G170478-11		Panel-exterior-almond		Appelez-nous	-
16	5315230801		Button-plug (2)		Appelez-nous	-
17	G170573-04		Trim-door		Appelez-nous	-
18	G170619-01		Handle-upper		Appelez-nous	-
19	5316715001		Trim - Door		Appelez-nous	-
20	5308011745		Screw				$ 10.38
21	218843801		Screw   (Replaces: 5303001001)				$ 14.41
22	G170619-02		Handle Lower		Appelez-nous	-
11A	3204854		Support Rh (6)		Appelez-nous	-
