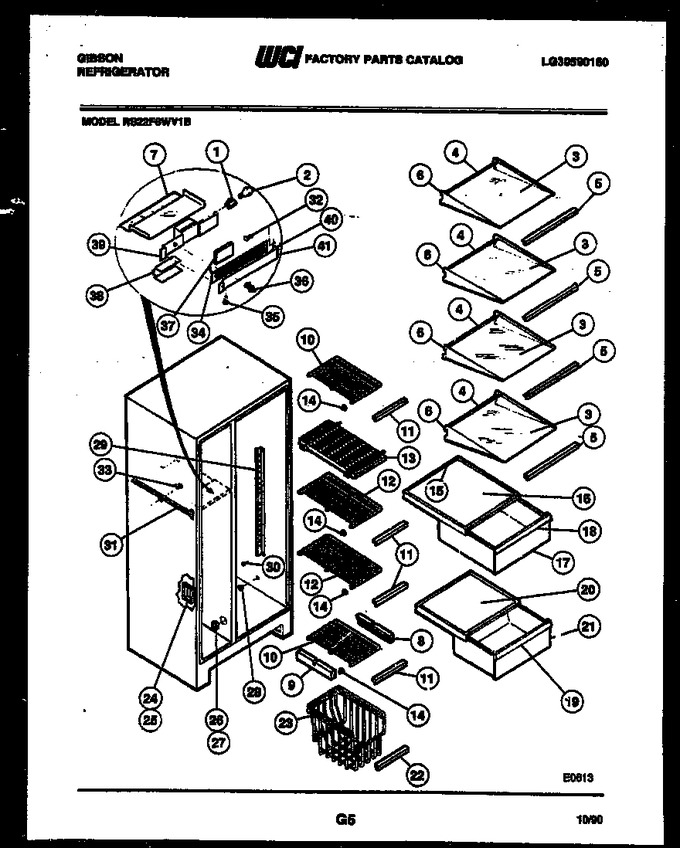

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308000129 | Light Socket |
|
$ 62.16 | |||||
| 2 | 5303001179 | Light Bulb |
|
- | |||||
| 3 | 3016880 | Glass-shelf (4) |
|
- | |||||
| 4 | G172409-01 | Trim-shelf Rear (4) |
|
- | |||||
| 5 | 5317241002 | Trim - Shelf Front (4) |
|
- | |||||
| 6 | G186156-03 | Frame-shelf (4) |
|
- | |||||
| 7 | 5308000836 | Moulding-3 Door |
|
- | |||||
| 8 | 5303001098 | Hanger-basket Rs |
|
- | |||||
| 9 | 5303001099 | Hanger-basket Ls |
|
- | |||||
| 10 | 5303007123 | Shelf - Freezer (2) |
|
- | |||||
| 11 | 3016382 | Trim-shelf (4) |
|
- | |||||
| 12 | 5303007122 | Shelf - Freezer (2) |
|
- | |||||
| 13 | 5308001016 | Shelf-freezer Plastic |
|
- | |||||
| 14 | 5304509705 | Grommet, Shelf (10) (Replaces: 5303001609) |
|
$ 10.01 | |||||
| 15 | 5303205880 | Gasket - Cover |
|
- | |||||
| 16 | 5303001092 | Cover - Upper Pan |
|
- | |||||
| 17 | G179709-03 | Pan-storage Upper |
|
- | |||||
| 18 | G177343-12 | Trim, Upper Pan |
|
- | |||||
| 19 | G177343-11 | Trim, Lower Pan |
|
- | |||||
| 20 | 5316972401 | Cover, Lower Pan |
|
- | |||||
| 21 | G179710-02 | Pan-storage Lower |
|
- | |||||
| 22 | 3015108 | Trim, Basket |
|
- | |||||
| 23 | 3017211 | Basket |
|
- | |||||
| 24 | 5308000808 | Ferrule-inner |
|
- | |||||
| 25 | 5308000809 | Ferrule-outer |
|
- | |||||
| 26 | 5303001276 | Ferrule, Inner |
|
- | |||||
| 27 | 5303001277 | Ferrule, Outer |
|
- | |||||
| 28 | 5303001288 | Button-plug (2) |
|
- | |||||
| 29 | 5308002744 | Channel-shelf (2) |
|
- | |||||
| 30 | 5308010253 | Screw 1/4 X 1 (8) |
|
- | |||||
| 31 | 08009641 | Channel-wiring |
|
- | |||||
| 32 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 33 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 34 | 5300169756 | Heater - Mullion |
|
- | |||||
| 35 | 5300115932 | Screw 8 - 18 X 3/8 |
|
- | |||||
| 36 | 5309918810 | Light Switch |
|
- | |||||
| 37 | G175156 | Insulation-mullion |
|
- | |||||
| 38 | G169516 | Cover-light Socket |
|
- | |||||
| 39 | 08002793 | Strap-light Mounting |
|
- | |||||
| 40 | G169530-08 | Trim-mullion-avocado |
|
- | |||||
| 40 | G169530-09 | Trim-mullion-wheat |
|
- | |||||
| 40 | G169530-10 | Trim-mullion-coffee |
|
- | |||||
| 40 | G169530-11 | Trim-mullion-almond |
|
- | |||||
| 40 | G169530-01 | Trim-mullion-white |
|
- | |||||
| 41 | G169490-10 | Mullion-coffee |
|
- | |||||
| 41 | G169490-11 | Mullion-almond |
|
- | |||||
| 41 | G169490-01 | Mullion-white |
|
- | |||||
| 41 | G169490-08 | Mullion-avocado |
|
- | |||||
| 41 | G169490-09 | Mullion-wheat |
|
- |
