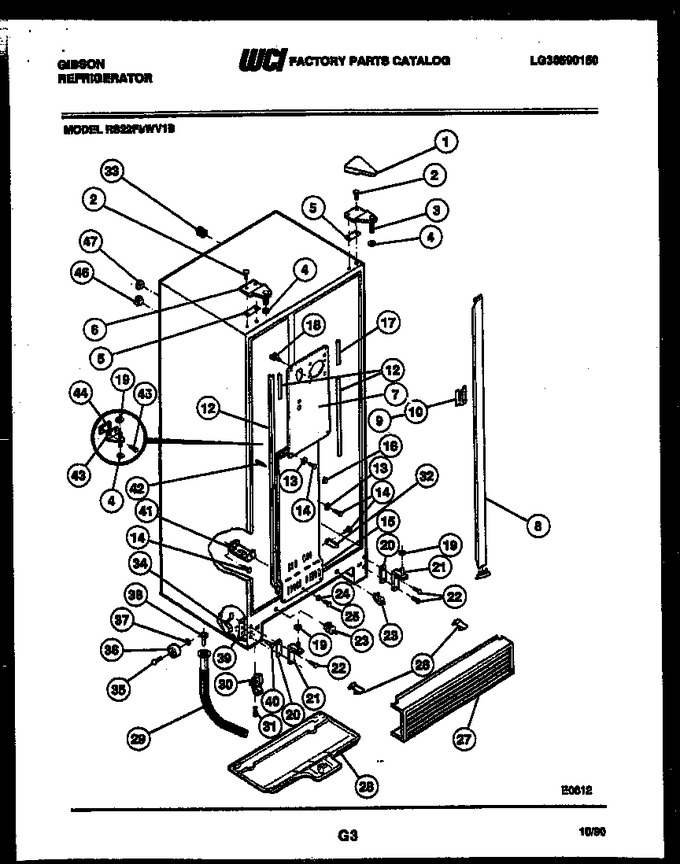

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5308012820 | Cover-top Hinge-white (2) |
|
- | |||||
| 1 | 5303001664 | Cover - Top Hinge - Avocado (2) |
|
- | |||||
| 1 | 5303001665 | Cover-top Hinge-wheat (2) |
|
- | |||||
| 1 | 5303001666 | Cover-top Hinge-coffee (2) |
|
- | |||||
| 1 | 5308012933 | Cover - Top Hinge - Almond (2) |
|
- | |||||
| 2 | 241710601 | Screw (Replaces: 5303001479) |
|
$ 13.46 | |||||
| 3 | 5308012934 | Hinge - Upper Rs |
|
- | |||||
| 4 | 5308000186 | Washer-nylon (3) |
|
Immediately | $ 6.02 | ||||
| 5 | 5303001037 | Shim-upper Hinge (2) |
|
$ 12.39 | |||||
| 6 | 5303001062 | Hinge - Upper Ls |
|
$ 117.02 | |||||
| 7 | 5303006543 | Cover-upper Coil |
|
- | |||||
| 8 | 3916446 | Mullion, Wheat |
|
- | |||||
| 8 | 5303916447 | Mullion, Coffee |
|
- | |||||
| 8 | 3916445 | Mullion, Avocado |
|
- | |||||
| 8 | 5303916444 | Mullion-white |
|
- | |||||
| 8 | 5303916448 | Mullion, Almond |
|
- | |||||
| 9 | 5300169100 | Clip-mullion (3) |
|
- | |||||
| 10 | 5303001281 | Clip-mullion (3) |
|
- | |||||
| 12 | 5303001233 | Gasket |
|
- | |||||
| 13 | 5303001216 | Washer - Nylon |
|
- | |||||
| 14 | 5304455650 | Screw (Replaces: 5308016566) |
|
$ 14.18 | |||||
| 15 | G169477-02 | Cover-lower Coil |
|
- | |||||
| 16 | 5303001231 | Clip-grounding |
|
- | |||||
| 17 | 5303001219 | Gasket-coil Cover (2) |
|
- | |||||
| 18 | 5308000097 | Support, Coil Cover (2) |
|
- | |||||
| 19 | 5303001038 | Washer-nylon (3) |
|
$ 13.34 | |||||
| 20 | 5303001272 | Shim-lower Hinge (2) |
|
- | |||||
| 21 | 5303001271 | Hinge-lower (2) |
|
$ 102.38 | |||||
| 22 | 5303001041 | Screw (4) |
|
- | |||||
| 23 | 5303208475 | Light Switch (3) |
|
- | |||||
| 24 | 5308009617 | Washer - Exterior Lock (2) |
|
- | |||||
| 25 | 5303001230 | Screw |
|
- | |||||
| 26 | 5308000847 | Clip, Grille (2) |
|
$ 5.39 | |||||
| 27 | 5317032601 | Grille - Lower Front |
|
- | |||||
| 28 | 5303001026 | Pan-defrost |
|
- | |||||
| 29 | 5303209723 | Tube-drain |
|
- | |||||
| 30 | 5308000118 | Roller-front (2) |
|
- | |||||
| 31 | 5308017044 | Screw - Roller Adj Mounting (2) |
|
$ 6.34 | |||||
| 32 | 5316491203 | Damper, Meat Keeper |
|
- | |||||
| 33 | 5303001198 | Tube-rubber |
|
- | |||||
| 34 | 5300077210 | Nut-stud Speed (2) |
|
- | |||||
| 35 | 5308000266 | Pin (2) |
|
- | |||||
| 36 | 5308000265 | Roller (2) |
|
- | |||||
| 37 | 5303001028 | Nut-push (2) |
|
- | |||||
| 38 | 5308000853 | Conductor-heat |
|
- | |||||
| 39 | 5303001273 | Nut-spec Twin (4) |
|
- | |||||
| 40 | 5308000013 | Pin - Shoulder |
|
- | |||||
| 41 | 5308000738 | Bracket, Cover Mounting |
|
- | |||||
| 42 | 5303001250 | Support-coil Cover (5) |
|
- | |||||
| 43 | 5300169531 | Bracket-center Hinge |
|
- | |||||
| 44 | 08002788 | Shim-center Hinge |
|
- | |||||
| 45 | 5308012258 | Screw |
|
$ 2.25 | |||||
| 46 | 5303001286 | Ferrule-inner (2) |
|
- | |||||
| 47 | 5303001287 | Ferrule-outer (2) |
|
- | |||||
| 31A | 5308009568 | Bolt 5/16 - 24 X 3/4 Adj - Roller (non-illustrated) |
|
- | |||||
| 31B | 5303001213 | Support - Spec Barrel (6) (non-illustrated) |
|
- | |||||
| 31C | 5303208309 | Plug-short Test Hole (non-illustrated) |
|
$ 45.50 |
