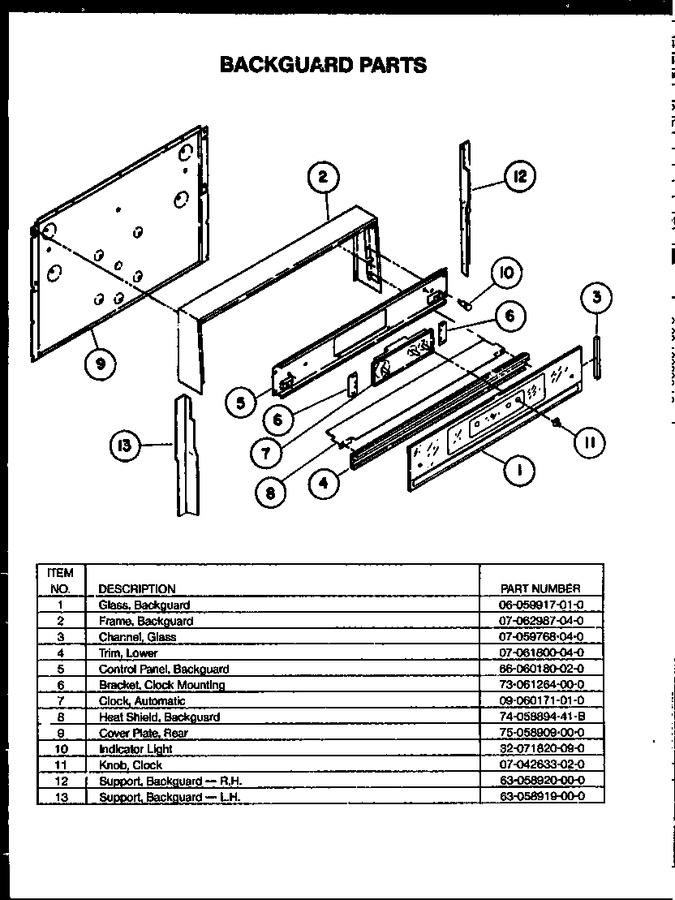

01 - Backguard Parts
02 - Cabinet Assy
03 - Electrical Components
04 - Gas Components
05 - Oven Door Parts
06 - Page 1
07 - Storage Drawer Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 0059917 | Glass, Cont. Pnl. |
|
- | |||||
| 2 | Y0062987 | Frame, Backguard |
|
- | |||||
| 3 | 0059768 | Channel, Glass (black) |
|
- | |||||
| 4 | 0061800 | Trim, Lower |
|
- | |||||
| 5 | Y0060180 | Backguard, Control Panel |
|
- | |||||
| 6 | 0061264 | Bracket, Clock Mtg. |
|
- | |||||
| 7 | 0060171 | Clock, Analog |
|
- | |||||
| 8 | 0058894 | Heat Shield, Backguard |
|
- | |||||
| 9 | 0058909 | Rear Backguard & Cover Plate |
|
- | |||||
| 10 | Y0071820 | Indicator Light |
|
- | |||||
| 11 | Y0042633 | Knob, Clock W/o Spring |
|
- | |||||
| 12 | Y0058920 | Support, Backguard Rt |
|
- | |||||
| 13 | Y0058919 | Support Backguard Lh |
|
- |
