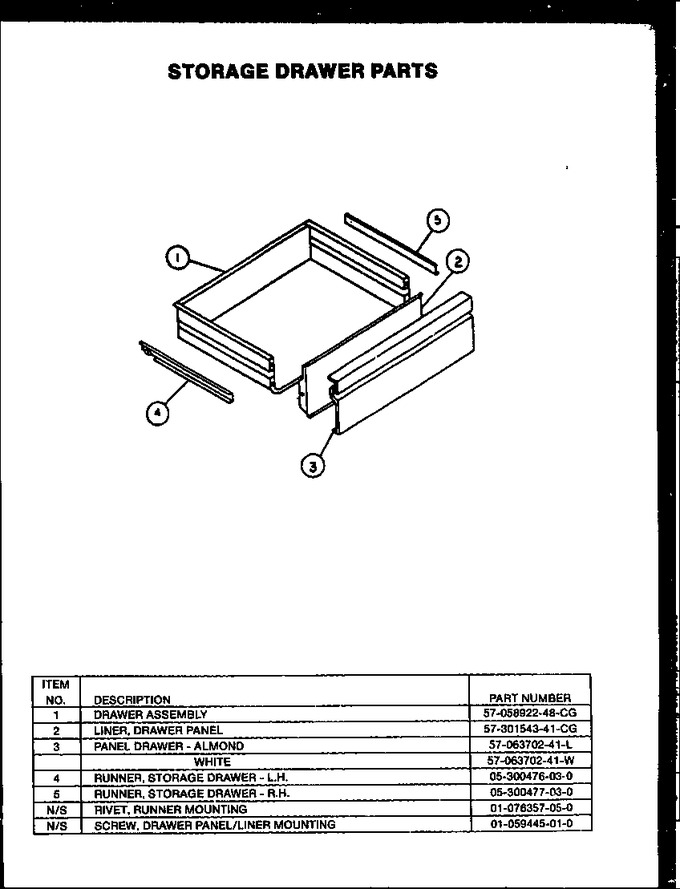

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 58922CG | Wrapper, Stor Drawer |
|
- | |||||
| 2 | Y00000000 | See Note Liner, Drawer Panel |
|
- | |||||
| 3 | 063702L | Panel, Drawer L |
|
- | |||||
| 3 | 063702W | Panel, Drawer Wht |
|
- | |||||
| 4 | Y0300476 | Runner, Storage Door, L.h. |
|
- | |||||
| 5 | 0300477 | Runner, Storage Door R.h. |
|
- | |||||
| NI | Y0076357 | Rivet, Pop |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 |
