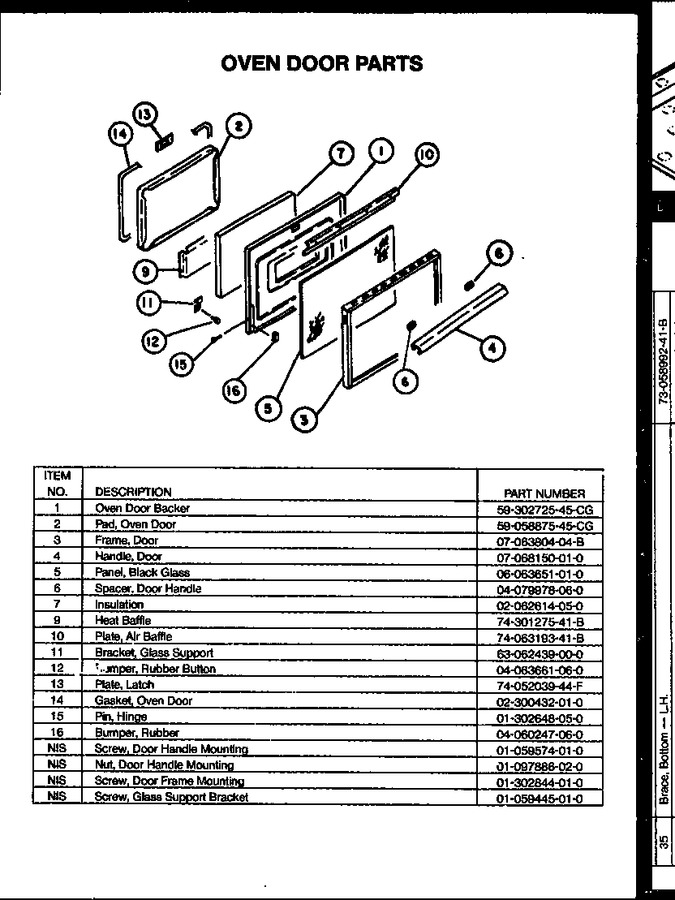

| 1 | Y00000000 | See Note Oven Door Backer |
|
- | |||||
| 2 | W10124804 | Pad, Oven Door |
|
- | |||||
| 3 | 0063804 | Frame, Door, Black |
|
- | |||||
| 4 | 0068150 | Handle, Door |
|
- | |||||
| 5 | 0063651 | Panel, Oven Door Glass |
|
- | |||||
| 6 | Y0079978 | Spacer Door Handle |
|
- | |||||
| 7 | 0062614 | Insulation,door-sub Backer |
|
- | |||||
| 9 | 301275B | Heat Baffle, Glass (black) |
|
- | |||||
| 10 | 0063193 | Plate, Air Baffle |
|
- | |||||
| 11 | Y0062439 | Support Bracket, Glass |
|
- | |||||
| 12 | Y0063661 | Bumper, Oven Door |
|
- | |||||
| 13 | Y0052039 | Latch Plate |
|
- | |||||
| 14 | Y0300432 | Gasket, Oven Dr 82`` |
|
- | |||||
| 15 | Y0302648 | Rivet, Pop |
|
- | |||||
| 16 | Y0060247 | Bumper, Rubber |
|
- | |||||
| NI | 0302844 | Screw No.8 18 X 1/2 Black |
|
- | |||||
| NI | 0059574 | Screw, Square |
|
- | |||||
| NI | W11245710 | Screw, No.8-18x.406-.344 Waferhd (Replaces: Y0059445) |
|
Immediately | $ 12.65 | ||||
| NI | WP488130 | Nut K (Replaces: Y0097886) |
|
$ 6.27 |
