01 - Backguard Parts


02 - Cabinet Assy


03 - Electrical Components

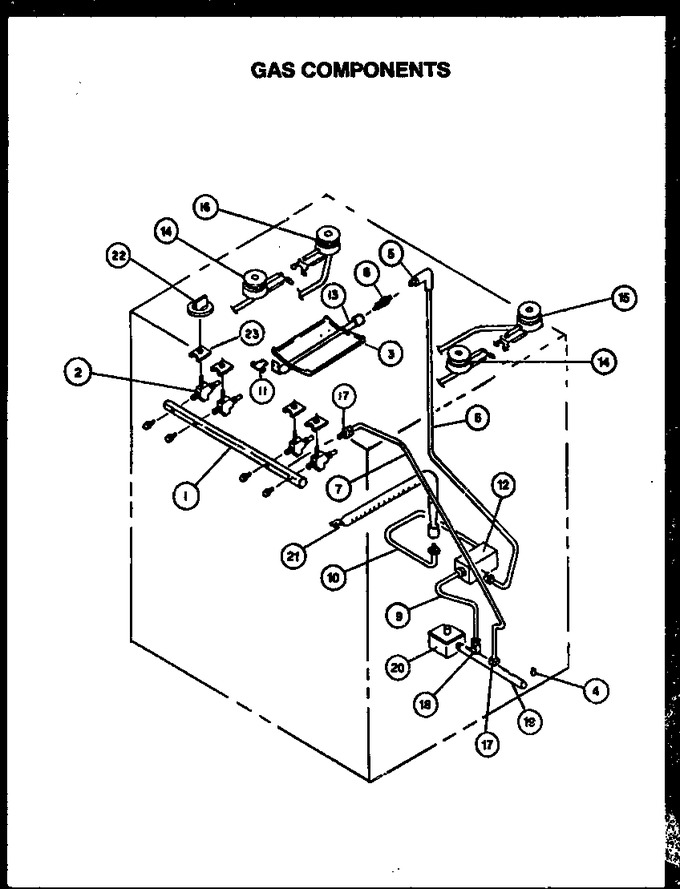

04 - Gas Components


05 - Oven Door Parts


06 - Page 1


07 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	0300080		Manifold Pipe		Appelez-nous	-
2	Y0301059		Valve, Top Burner		Appelez-nous	-
2	Y0061441		Surface Valve Bolt& Gasket		Appelez-nous	-
3	300089B		Reflector, Broil		Appelez-nous	-
4	0042415		Pipe Plug 1/8-27 Npt		Appelez-nous	-
5	Y0097871		Nut, Pal 3/4-16 X 1.062		Appelez-nous	-
6	0302058		Tubing, Gas		Appelez-nous	-
7	Y0300686		Tubing, Inlet To Manifold		Appelez-nous	-
8	0302499		Orifice Broil Burner		Appelez-nous	-
9	Y0300684		Tubing, Inlet To Gas Valve		Appelez-nous	-
10	Y0300685		Tubing, Oven Burner		Appelez-nous	-
11	0300072		Support, Broil Burner		Appelez-nous	-
12	Y0300664		Valve, Gas		Appelez-nous	-
13	0300070		Broil Burner		Appelez-nous	-
14	Y0063147		Top Burner Front		Appelez-nous	-
15	Y0063146		Top Burner Rr		Appelez-nous	-
16	Y0063145		Top Burner Lr		Appelez-nous	-
17	Y0301263		Fitting, 1/8``x 3/8``		Appelez-nous	-
18	Y0301361		Valve, Shut-off		Appelez-nous	-
19	0300479		Inlet Pipe		Appelez-nous	-
20	Y0063684		Regulator-5``/10`` Side Inlet		Appelez-nous	-
21	Y0063709		Oven Burner		Appelez-nous	-
22	Y0302879		Knob, Thermostat		Appelez-nous	-
22	0060181		Knob, Selector Assy		Appelez-nous	-
22	Y0060182		Knob, Top Burner Assy		Appelez-nous	-
23	Y0300521		Switch,licon Gas Ignition				$ 57.33
