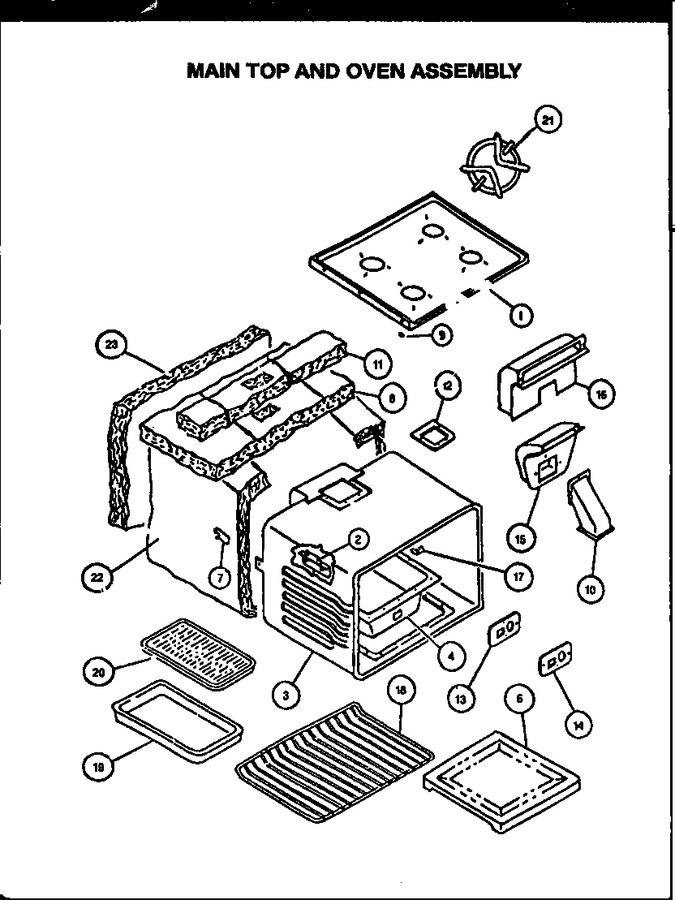

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10124582		Main Top, White		Appelez-nous	-
1	W10124581		Main Top, Almond		Appelez-nous	-
2	0062792		Shield, Thermostat Bulb		Appelez-nous	-
3	302929E		Oven Shell		Appelez-nous	-
4	Y0063802		Burner Box, Lower		Appelez-nous	-
6	Y0058625		Oven Bottom		Appelez-nous	-
7	Y0058852		Bracket, Oven Cavity		Appelez-nous	-
8	Y0062946		Sub 41966, Insulation		Appelez-nous	-
9	Y0062445		Spacer, Nylon (.14``)		Appelez-nous	-
10	Y0300082		Oven Vent		Appelez-nous	-
11	Y0062944		Sub 41966, Insulation		Appelez-nous	-
12	Y0301559		Gasket, Vent		Appelez-nous	-
13	Y0301736		Gasket Plate		Appelez-nous	-
14	Y0301532		Plate, Broil Burner		Appelez-nous	-
15	Y00000000		See Note Flue, Inner		Appelez-nous	-
16	301707G		Dilution Flue, Black		Appelez-nous	-
17	0300278		Chip Cover		Appelez-nous	-
18	WP314763J		Rack,oven   (Replaces: Y0067810)				$ 70.11
19	Y0011161		Sub 11161cg, Broiler Pan		Appelez-nous	-
20	4396923		Broiler Grid   (Replaces: Y0098682)			Immediately	$ 52.04
21	0042357		Grate 1973 Gu&gis		Appelez-nous	-
22	Y0062947		Sub 41966, Insulation		Appelez-nous	-
23	Y0062945		Sub 41966, Insulation		Appelez-nous	-
