SELECT A DIAGRAM

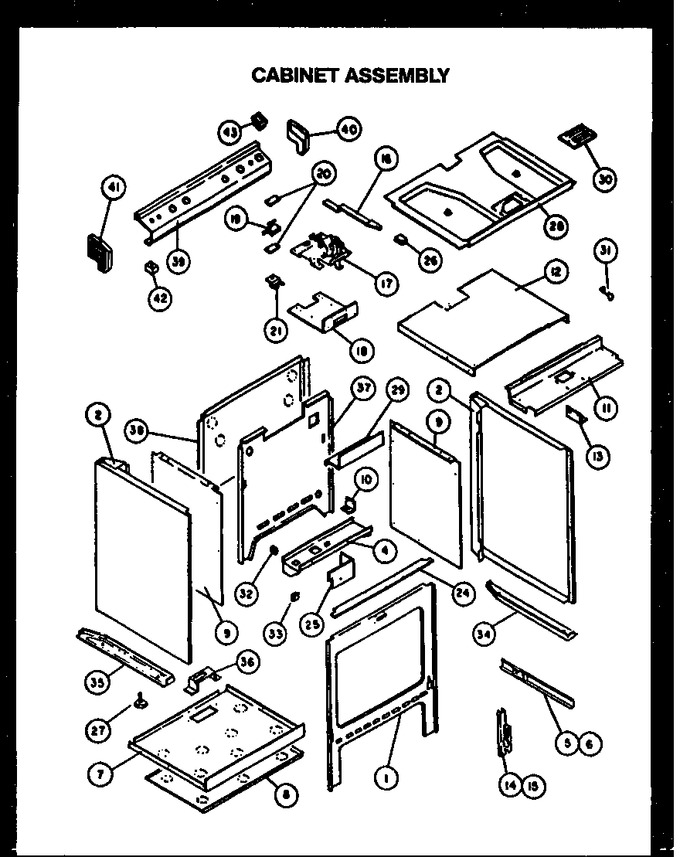

01 - Backguard Parts


02 - Cabinet Assy


03 - Electrical Components


04 - Gas Components


05 - Oven Door Parts


06 - Page 1


07 - Storage Drawer Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Front Frame -- (not Field Replaceable		Appelez-nous	-
2	302710W		Panel, Side (wht)		Appelez-nous	-
2	302710L		Panel, Side (alm)		Appelez-nous	-
4	0058890		Shelf, Gas Valve		Appelez-nous	-
5	0300475		Track, Storage Drawer-r.h.		Appelez-nous	-
6	Y0300474		Track, Storage Drawer-l.h.		Appelez-nous	-
7	Y0058896		Insul, Ret.-bottom		Appelez-nous	-
8	Y0063706		Shield, Heat		Appelez-nous	-
9	Y0303572		Side Insulation Retainer		Appelez-nous	-
10	0053182		Bracket, Gas Valve		Appelez-nous	-
11	Y0302035		Insulation Retainer, Top Front		Appelez-nous	-
12	Y0302036		Insulation Retainer Top		Appelez-nous	-
13	0302290		Bracket, Mounting		Appelez-nous	-
14	Y0066954		Kit, Door Hinge (rh-ss)		Appelez-nous	-
15	Y0066953		Kit, Door Hinge(lh-hs)		Appelez-nous	-
16	Y0063141		Latch Arm (chrome)		Appelez-nous	-
17	Y0063733		Latch Assembly		Appelez-nous	-
18	Y0058918		Bracket, Latch Mtg.		Appelez-nous	-
19	Y0065780		Switch, Clean Circuit				$ 11.77
20	Y0091523		Insulation, Esm		Appelez-nous	-
21	Y0302316		Bracket, Switch		Appelez-nous	-
24	302380B		Filler, Front Frame		Appelez-nous	-
25	Y0058916		Cover, Electrical		Appelez-nous	-
26	Y0067844		Knob, Latch - Black		Appelez-nous	-
27	Y0300585		Leg, Leveling		Appelez-nous	-
28	302038E		Burner Box		Appelez-nous	-
29	Y0058834		Cover, Elec. Wires		Appelez-nous	-
30	0062840		Cover Plate Latch		Appelez-nous	-
31	Y0068513		Clamp, Wire-insulate		Appelez-nous	-
32	Y0042659		Snap Bushing		Appelez-nous	-
33	Y0091587		Cable, Clip Esm		Appelez-nous	-
34	Y0058991		Brace, Leveling Leg (lt)		Appelez-nous	-
35	Y0058992		Brace, Leveling Leg (lt)		Appelez-nous	-
36	Y0302498		Cover, Ig/bake Burner		Appelez-nous	-
37	Y0302034		Insulation Retainer, Rear		Appelez-nous	-
38	0058909		Rear Backguard & Cover Plate		Appelez-nous	-
39	0302861		Control Panel		Appelez-nous	-
40	0063192		End Cap, Rh (chrome)		Appelez-nous	-
41	0063191		End Cap, Lh (chrome)		Appelez-nous	-
NI	0059446		Screw Wafer Head		Appelez-nous	-
NI	Y0074807		Screw No.23, No.6x5/16 Ph Fl. Hd.		Appelez-nous	-
NI	Y0062755		Grounding Bracket		Appelez-nous	-
NI	Y0301552		Anti-tip Pack		Appelez-nous	-
NI	WPY0070927		Mounting Clip   (Replaces: Y0070927)				$ 6.85
NI	0063144		Mounting Bracket		Appelez-nous	-
NI	Y0065664		Screw, Tt 23 4-40 X 5/8		Appelez-nous	-
