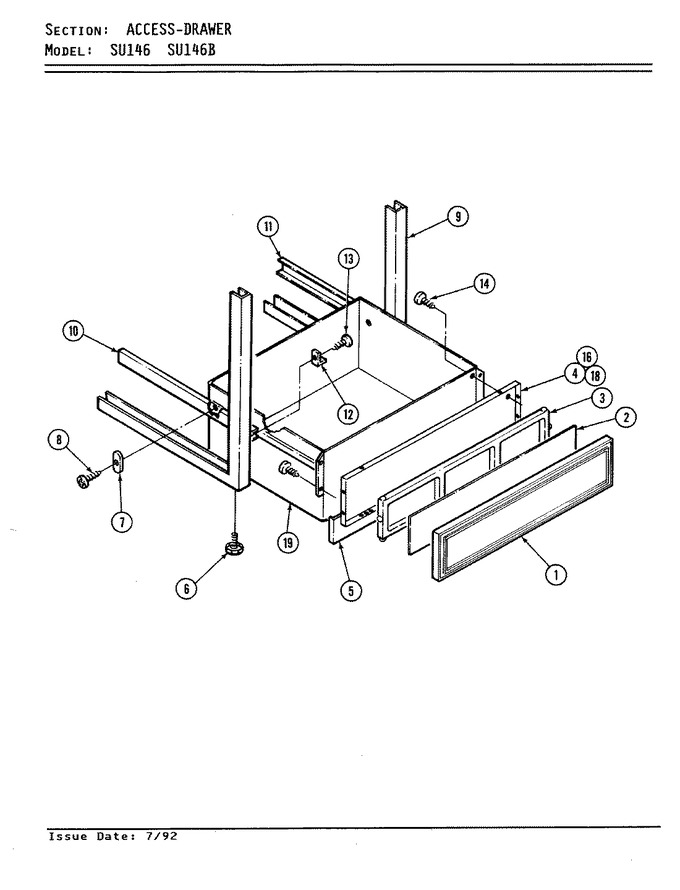

01 - Access Drawer
02 - Blower Motor
03 - Blower Motor (convection)
04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Oven
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y704494 | Frame (blk) | 11 |
|
- | ||||
| 2 | 704497 | Panel, Base (blk) | 11 |
|
- | ||||
| 3 | Y702896 | Spacer, Base Door | 11 |
|
- | ||||
| 4 | Y702341 | Liner, Door | 11 |
|
- | ||||
| 5 | 703966 | Panel, Kick | 11 |
|
- | ||||
| 6 | W11117769 | Leveler,adjust (Replaces: Y708696) | 11 |
|
Immediately | $ 16.61 | |||
| 7 | 703963 | Slide, Drawer | 11 |
|
- | ||||
| 8 | 712066 | Screw | 11 |
|
- | ||||
| 9 | 712000 | Rail, Support Assembly | 11 |
|
- | ||||
| 10 | 703967 | Chanel, Drawer (lt) | 11 |
|
- | ||||
| 11 | 703968 | Chanel, Drawer (rt) | 11 |
|
- | ||||
| 12 | Y703962 | Guide, Drawer | 11 |
|
- | ||||
| 13 | WP179051 | Screw (Replaces: 708764) | 11 |
|
Immediately | $ 7.16 | |||
| 14 | W11233072 | Screw (blk) (Replaces: Y704237) | 11 |
|
Immediately | $ 12.62 | |||
| 15 | W11233072 | Screw (Replaces: Y707347) | 11 |
|
Immediately | $ 12.62 | |||
| 16 | 704734 | Handle, Drawer | 11 |
|
- | ||||
| 17 | 704827 | Tape, Dbl. Sided | 11 |
|
- | ||||
| 18 | Y704488 | Screw (black) | 11 |
|
- | ||||
| 19 | 712608 | Drawer | 11 |
|
- |
