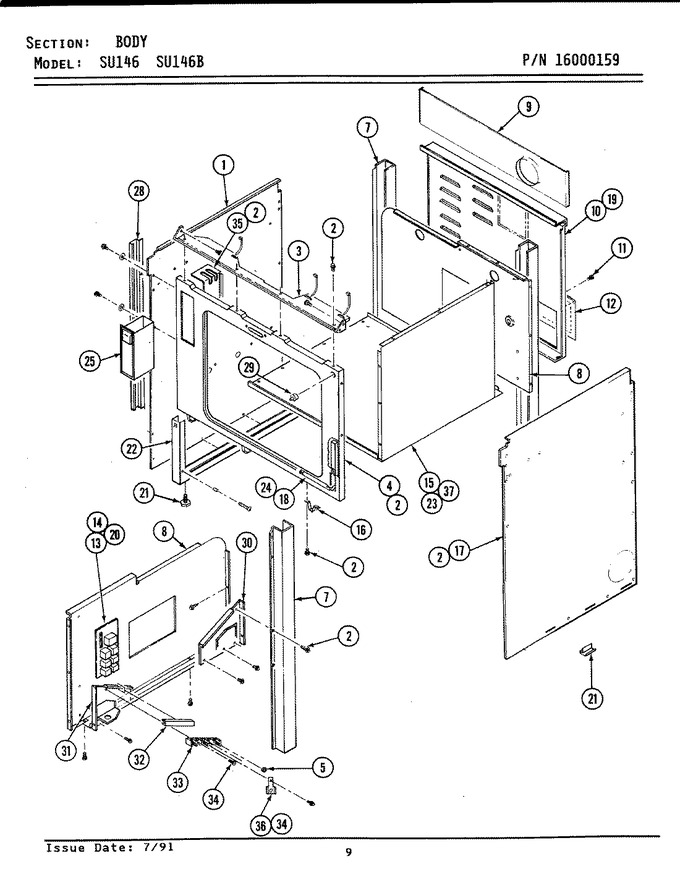

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access Drawer
02 - Blower Motor
03 - Blower Motor (convection)
04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Oven
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | Y702301 | Panel, Side (lt) | 1 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: 715773) | 1 |
|
Immediately | $ 7.04 | |||
| 3 | 712002 | Angle, Mount | 1 |
|
- | ||||
| 4 | 702329 | Closure, Front | 1 |
|
- | ||||
| 5 | 707161 | Nut | 1 |
|
- | ||||
| 6 | Y702476 | Clip, Spring | 1 |
|
- | ||||
| 7 | 704296 | Support,tube | 1 |
|
- | ||||
| 8 | Y704735 | Back, Inner | 1 |
|
- | ||||
| 9 | Y702345 | Plate, Back | 1 |
|
- | ||||
| 10 | 704294 | Cover, Rear | 1 |
|
- | ||||
| 11 | WPY706189 | Screw (Replaces: 700906) | 1 |
|
Immediately | $ 6.47 | |||
| 12 | 702333 | Cover, Access(r.h) | 1 |
|
- | ||||
| 13 | Y704710 | Relay, Transformer Assy. | 1 |
|
- | ||||
| 14 | Y704706 | Support, Circuit Board | 1 |
|
- | ||||
| 15 | Y702319 | Panel, Bottom & Side (rt) | 1 |
|
- | ||||
| 15 | 702336 | Angle, Oven Support | 1 |
|
- | ||||
| 16 | 702658 | Bracket, Hat | 1 |
|
- | ||||
| 17 | DE81-09758A | Panel, Side (rt) (Replaces: 702300) | 1 |
|
$ 1,127.72 | ||||
| 18 | Y703419 | Hinge | 1 |
|
- | ||||
| 19 | Y702696 | Strain, Relief | 1 |
|
- | ||||
| 20 | 704764 | Harness, Supply | 1 |
|
- | ||||
| 21 | W11117769 | Leveler,adjust (Replaces: Y708696) | 1 |
|
Immediately | $ 16.61 | |||
| 21 | Y04100573 | Leveler, Leg | 1 |
|
$ 25.32 | ||||
| 22 | 712000 | Rail, Support Assembly | 1 |
|
- | ||||
| 23 | 704466 | Baffle, Inner | 1 |
|
- | ||||
| 24 | 715870 | Screw | 1 |
|
- | ||||
| 25 | Y712001 | Container,grease Assembly | 1 |
|
- | ||||
| 26 | 00702462 | Washer, Conical (Replaces: 702462) | 1 |
|
$ 1,015.54 | ||||
| 27 | 702731 | Screw | 1 |
|
- | ||||
| 28 | 702337 | Trim, Side | 1 |
|
- | ||||
| 29 | 701666 | Switch, Door | 1 |
|
- | ||||
| 30 | 702557 | Gussett (lt) | 1 |
|
- | ||||
| 31 | 702556 | Gussett (rt) | 1 |
|
- | ||||
| 32 | 702898 | Insulator | 1 |
|
- | ||||
| 33 | WP8203546 | Block, Terminal (Replaces: Y702284) | 1 |
|
Immediately | $ 27.12 | |||
| 34 | WP67006908 | Screw (Replaces: Y703002) | 1 |
|
Immediately | $ 7.16 | |||
| 35 | 704312 | Bracket, Drain Tube | 1 |
|
- | ||||
| 36 | 712239 | Kit,backsplash Adaptor | 1 |
|
- | ||||
| 36 | Y702335 | Strap, Ground | 1 |
|
- | ||||
| 37 | 704766 | Harness, Supply | 1 |
|
- | ||||
| 37 | 705060 | Wire, Green | 1 |
|
- | ||||
| 37 | 704302 | Panel, Inner (lt) | 1 |
|
- | ||||
| 37 | 704768 | Wire, Brown | 1 |
|
- |
