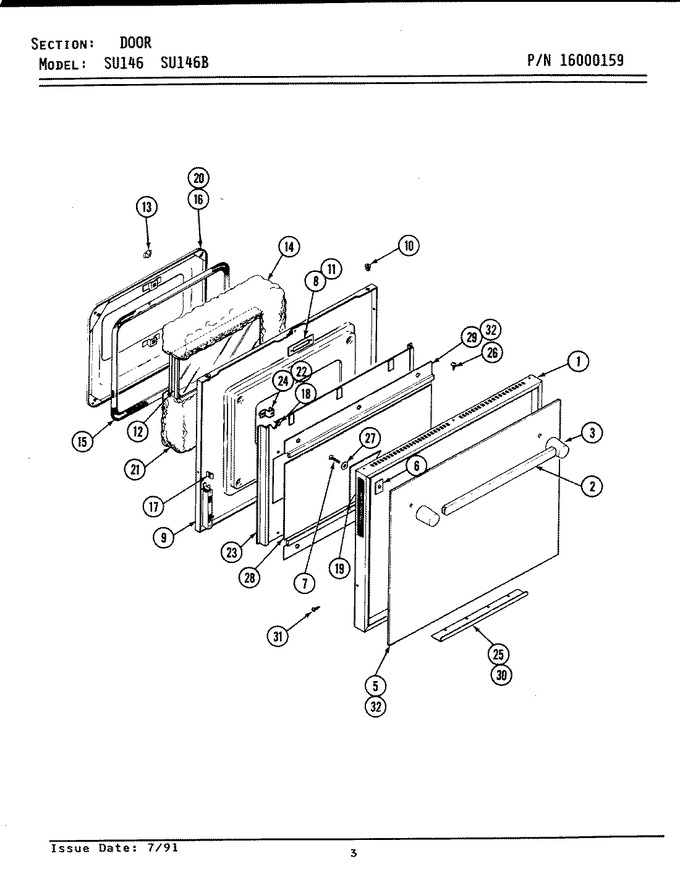

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	705136		Frame	11	Appelez-nous	-
2	704226		Handle (blk)	11	Appelez-nous	-
3	Y704224		End Cap (blk)	11	Appelez-nous	-
4	W11233072		Screw (blk)   (Replaces: Y704237)	11		Immediately	$ 12.62
5	Y704496		Glass	11	Appelez-nous	-
6	Y704489		Bushing	11	Appelez-nous	-
7	704963		Screw	11	Appelez-nous	-
8	Y712010		Plate, Latch (upper)	11	Appelez-nous	-
9	712567		Liner	11	Appelez-nous	-
10	701643		Nut, Push In	11	Appelez-nous	-
11	WP210720		Rivet   (Replaces: 701662)	11			$ 12.14
12	701648		Window Pack	11	Appelez-nous	-
13	Y700503		Clip, Retainer	11	Appelez-nous	-
14	702293		Insulation	11	Appelez-nous	-
15	WPY702338		Seal, Oven Door   (Replaces: Y702338)	11		Immediately	$ 172.53
16	712494		Plug	11	Appelez-nous	-
17	704487		Clip	11	Appelez-nous	-
18	WPY706189		Screw   (Replaces: 700906)	11		Immediately	$ 6.47
19	704805		Gusset----na	11	Appelez-nous	-
20	701660		Insulation, Top	11	Appelez-nous	-
21	702292		Insulation, Bottom	11	Appelez-nous	-
22	701652		Bracket, Stand-off	11	Appelez-nous	-
23	703782		Baffle	11	Appelez-nous	-
24	W11233072		Screw   (Replaces: Y707347)	11		Immediately	$ 12.62
25	Y704498		Rail, Glass	11	Appelez-nous	-
26	WPY706189		Screw (blk)   (Replaces: Y704238)	11		Immediately	$ 6.47
27	701736		Washer	11	Appelez-nous	-
28	Y704820		Glass, Baffle	11	Appelez-nous	-
29	Y704819		Retainer, Glass	11	Appelez-nous	-
30	Y700584		Screw	11	Appelez-nous	-
31	Y704488		Screw (black)	11	Appelez-nous	-
32	704491		Tape, Foam	11	Appelez-nous	-
