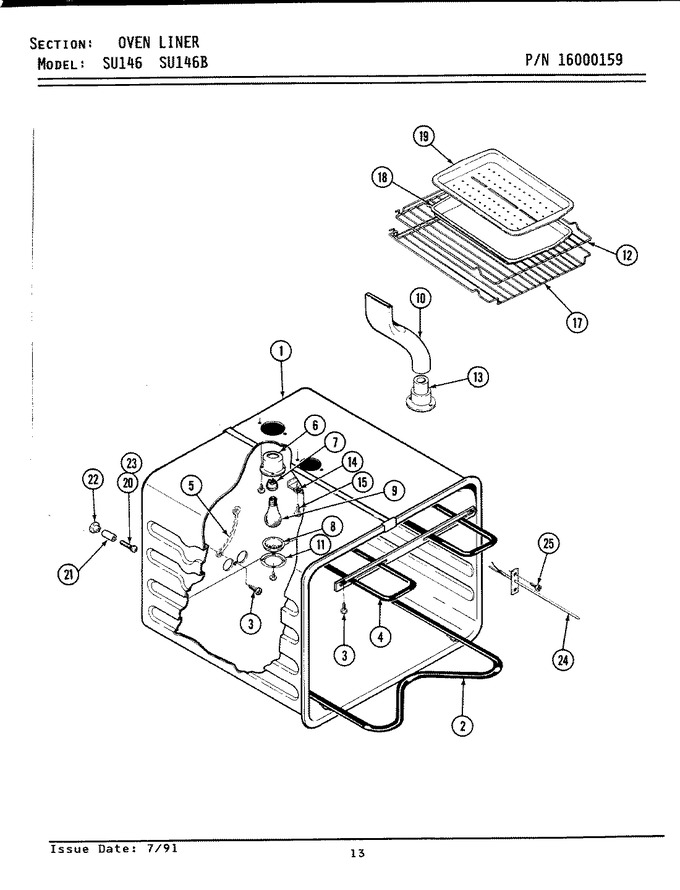

08 - Oven


09 - Top Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	712582		Liner	11	Appelez-nous	-
2	WPY04100019		Element, Bake (240v)   (Replaces: Y702550)	11			$ 116.29
2	712247		Element, Bake (208v)	11	Appelez-nous	-
3	WP179051		Screw   (Replaces: 708764)	11		Immediately	$ 7.16
4	WPY04100514		Element, Broil (240v)   (Replaces: Y704666)	11			$ 138.97
5	702643		Wire, Ground	11	Appelez-nous	-
6	704142		Receptacle, Holder	11	Appelez-nous	-
7	Y704145		Receptacle, Snap-in	11	Appelez-nous	-
8	Y704143		Lens, Light	11	Appelez-nous	-
9	8009		Bulb, Oven (40 Watt Brass)   (Replaces: Y707319)	11		Immediately	$ 16.80
10	702290		Tube, Vent	11	Appelez-nous	-
11	Y704144		Retainer, Lens	11	Appelez-nous	-
12	Y704660		Rack, Oven	11			$ 104.03
13	701738		Tube, Vent	11	Appelez-nous	-
14	Y702632		Shield, Vent	11	Appelez-nous	-
15	WP1163283		Screw   (Replaces: Y703741)	11			$ 6.47
16	702701		Support, Rack	11	Appelez-nous	-
17	Y704662		Rack, Oven (offset)	11	Appelez-nous	-
18	4396923		Pan, Broil   (Replaces: 703164)	11		Immediately	$ 52.04
19	4396923		Insert, Broil Pan   (Replaces: 703165)	11		Immediately	$ 52.04
20	705170		Screw	11	Appelez-nous	-
21	701741		Spacer, Oven	11	Appelez-nous	-
22	702283		Insulation-back	11	Appelez-nous	-
22	702282		Insulation-sides,top,bottom	11	Appelez-nous	-
22	715294		Nut, Tee	11	Appelez-nous	-
23	701736		Washer	11	Appelez-nous	-
24	12001656		Sensor, Oven   (Replaces: Y704657)	11		Immediately	$ 39.55
24	12001656		Sensor   (Replaces: Y04100258)	12		Immediately	$ 39.55
25	WPW10253196		Screw   (Replaces: Y707113)	11			$ 3.76
25	704975		Harness Wire	11	Appelez-nous	-
25	Y04100259		Adaptor	12	Appelez-nous	-
