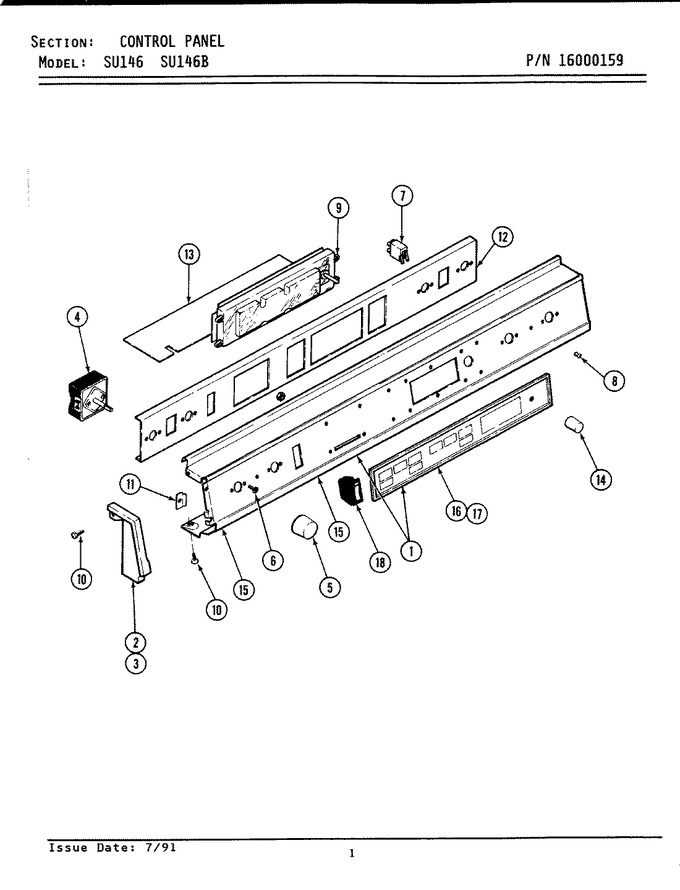

01 - Access Drawer
02 - Blower Motor
03 - Blower Motor (convection)
04 - Body
05 - Control Panel
06 - Door
07 - Internal Controls
08 - Oven
09 - Top Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 702388 | Cap, End (lt) | 11 |
|
- | ||||
| 3 | Y702387 | Cap, End (rt) | 11 |
|
- | ||||
| 4 | 703523 | Wire, Orange (right) | 11 |
|
- | ||||
| 4 | W11120791 | Switch, Infinite (Replaces: 703650) | 11 |
|
Immediately | $ 98.55 | |||
| 5 | 703900 | Knob, Infinite (blk) | 11 |
|
- | ||||
| 6 | 71002058 | Screw (Replaces: Y702124) | 11 |
|
$ 5.82 | ||||
| 7 | Y702614 | Light, Surface Indicator 120v | 11 |
|
- | ||||
| 8 | Y702615 | Lens, Pilot Light | 11 |
|
- | ||||
| 9 | Y704727 | Timer, Electronic | 11 |
|
- | ||||
| 9 | WPW10339879 | Tie, Cable (Replaces: 701678) | 11 |
|
$ 7.11 | ||||
| 10 | Y705393 | Screw, Hex | 1 |
|
- | ||||
| 11 | 702616 | Bracket, Retaining | 11 |
|
- | ||||
| 11 | Y704703 | Harness, Control | 11 |
|
- | ||||
| 11 | 704971 | Harness, Supply | 11 |
|
- | ||||
| 12 | 712580 | Panel, Back Weld | 11 |
|
- | ||||
| 13 | Y705143 | Insulator | 11 |
|
- | ||||
| 14 | WP7711P492-60 | Knob, Clock (blk) (Replaces: Y703910) | 11 |
|
$ 12.13 | ||||
| 15 | 704724 | Panel, Control | 11 |
|
- | ||||
| 16 | Y04100046 | Switch, Membrane (blk) | 11 |
|
- | ||||
| 17 | M0282005 | Nut, Hex (Replaces: 701719) | 11 |
|
$ 7.07 | ||||
| 18 | Y704311 | Switch, Oven Light (blk) | 11 |
|
- |
