Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 Y702542 Bracket, Mounting Motor 11 Appelez-nous -
2 Y702549 Motor, Fan 11 Appelez-nous -
3 Y702525 Blade, Fan 11 Appelez-nous -
4 704317 Limit, Thermal 11 Appelez-nous -
5 WP59002061 Screw   (Replaces: Y707172) 11 Special Order $ 6.98

6 704293 Back, Unit 11 Appelez-nous -
7 WP90767 Screw   (Replaces: 715773) 11 In-Stock Immediately $ 7.04

8 M0282005 Nut, Hex   (Replaces: 701719) 11 Special Order $ 7.07


    View Diagram in Separate Window     Print Icon   Print Part List

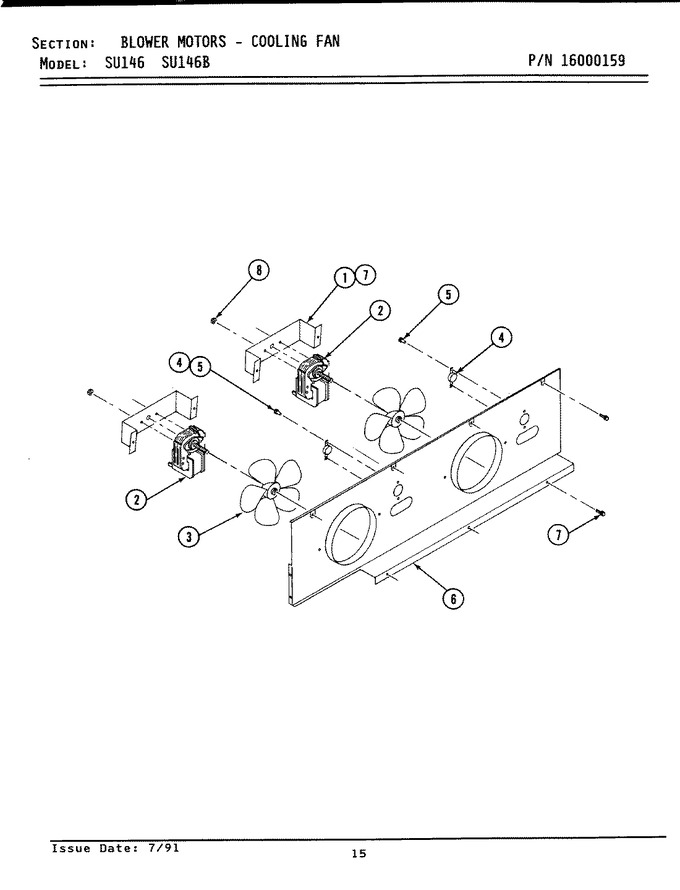

Diagram for SU146B
