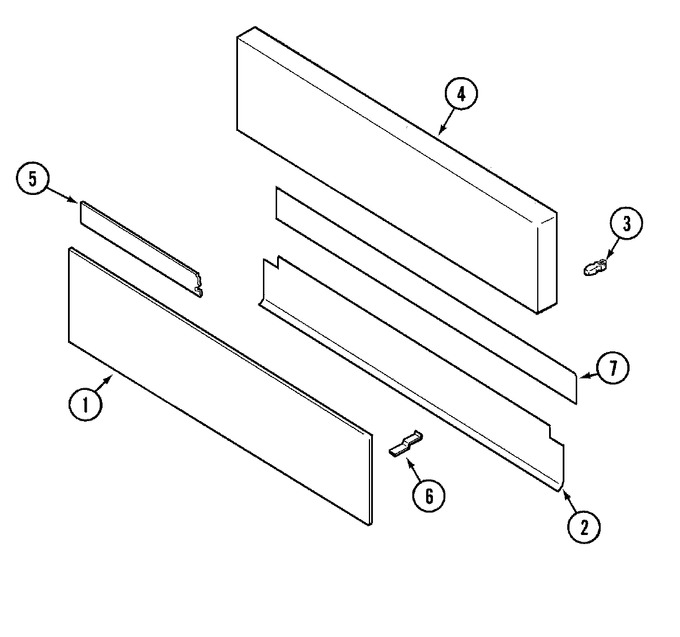

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access Panel
02 - Blower Assembly-plenum
03 - Body
04 - Control Panel
05 - Door
06 - Oven
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002095 | Panel, Front (blk) | 10 |
|
- | ||||
| 2 | 71002209 | Extrusion, Kick Panel (blk) | 10 |
|
- | ||||
| 2 | WP90767 | Screw (Replaces: Y700502) | 10 |
|
Immediately | $ 7.04 | |||
| 3 | WP71002097 | Striker, Door (Replaces: 71002097) | 10 |
|
$ 11.12 | ||||
| 4 | 71002093 | Frame, Base Door (blk) | 10 |
|
- | ||||
| 5 | 704827K | Tape, Dbl. Sided | 10 |
|
- | ||||
| 6 | 71002104 | Pin, Pivot | 10 |
|
- | ||||
| 7 | 71002098 | Panel, Kick (blk) | 10 |
|
- |
