SELECT A DIAGRAM

01 - Access Panel


02 - Blower Assembly-plenum


03 - Body


04 - Control Panel


05 - Door


06 - Oven


07 - Top Assembly


08 - Wiring Information

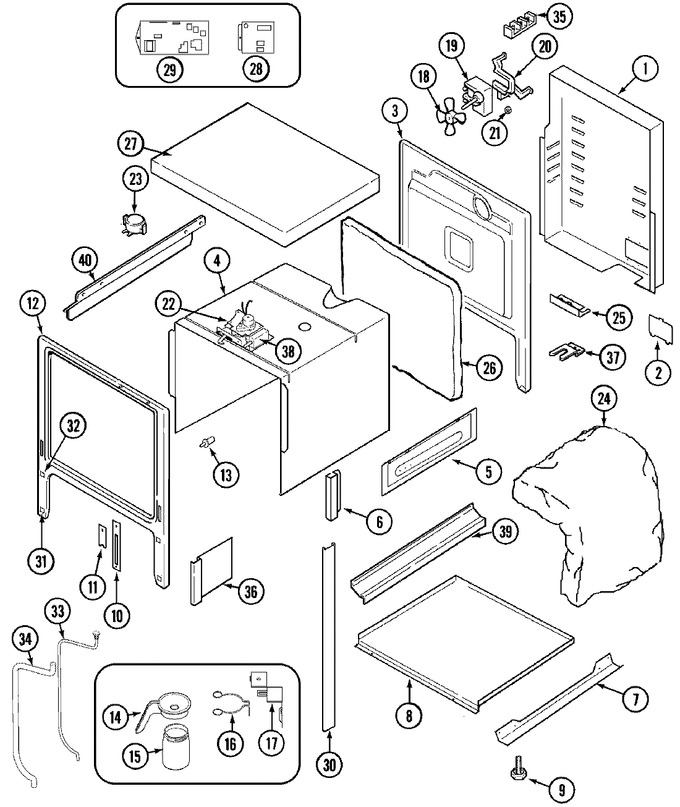

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71002660		Cover, Relay	10	Appelez-nous	-
1	71002659		Cover, Back	10	Appelez-nous	-
2	71002066		Panel, Access	10	Appelez-nous	-
3	71002597		Back, Main	10	Appelez-nous	-
4	71002068		Panel (side-top-side)	10	Appelez-nous	-
5	71002070		Panel, Side (lt)	10	Appelez-nous	-
5	71002069		Panel, Side (rt)	10	Appelez-nous	-
6	71002206		Receptacle, Hinge	10			$ 37.12
7	71002076		Rail, Bottom	10	Appelez-nous	-
8	71002071		Panel, Bottom	10	Appelez-nous	-
9	Y04100573		Leveler, Leg	10			$ 25.32
10	71002072		Plate, Hinge Cover	10	Appelez-nous	-
11	71002077		Plate, Hinge Retainer	10	Appelez-nous	-
12	71001186		Frame, Oven	10	Appelez-nous	-
13	71001129		Switch, Door Lock	10	Appelez-nous	-
14	71002170		Top, Drain Jar	10	Appelez-nous	-
15	WPY707869		Jar, Drain   (Replaces: Y707869)	10			$ 61.43
16	71002171		Spring, Drain Jar	10	Appelez-nous	-
17	71002169		Bracket, Drain Tube	10	Appelez-nous	-
17	WP90767		Screw   (Replaces: Y700502)	10		Immediately	$ 7.04
18	71001852		Blade, Fan	10	Appelez-nous	-
19	71001851		Fan Motor Assy.	10	Appelez-nous	-
20	71001853		Bracket, Fan	10	Appelez-nous	-
21	M0282005		Nut, Hex   (Replaces: 701719)	10			$ 7.07
22	71001845		Latch, Door Assy.	10			$ 160.79
23	WP7403P899-60		Switch, Hi-limit   (Replaces: Y702548)	10		Immediately	$ 181.29
24	71001817		Insulation (wrap)	10	Appelez-nous	-
25	71002960		Bracket, Electric Mtg	10	Appelez-nous	-
26	71002073		Insulation, Back	10	Appelez-nous	-
27	71001820		Insulation (top-btm)	10	Appelez-nous	-
28	71002035		Board, Relay (downdraft)	10	Appelez-nous	-
28	74004837		Shield, Realy (3.53x3)	10	Appelez-nous	-
29	71003002		Board, Relay (surface Control)	10	Appelez-nous	-
29	71002594		Board, Relay(bake/broil Conv.)	10	Appelez-nous	-
30	71002074		Clip, Side Trim	10	Appelez-nous	-
30	71002078		Trim, Side	10	Appelez-nous	-
31	W10124350		Not Required Part Or See Note	14	Appelez-nous	-
31	W10124350		Not Required Part Or See Note	16	Appelez-nous	-
31	71002105		Grommet, Base Door	10	Appelez-nous	-
32	71002106		Latch, Base Door	10			$ 9.11
33	702747		Washer, Teflon	10	Appelez-nous	-
33	702748		Nut, Drain Tube	10	Appelez-nous	-
33	71002642		Tube, Drain	10	Appelez-nous	-
34	71002173		Insulation, Drain Tube	10	Appelez-nous	-
35	WP8203546		Block, Terminal   (Replaces: Y702284)	10		Immediately	$ 27.12
36	71002102		Panel, Kick (side/blk)	10	Appelez-nous	-
37	Y705344		Bracket, Anti-tip	10			$ 5.51
38	71002904		Switch, Door Light	10			$ 63.99
39	71002661		Guard, Wire (rt)	10	Appelez-nous	-
40	71002114		Guard, Wire	10	Appelez-nous	-
