SELECT A DIAGRAM

01 - Access Panel


02 - Blower Assembly-plenum


03 - Body


04 - Control Panel


05 - Door


06 - Oven


07 - Top Assembly


08 - Wiring Information

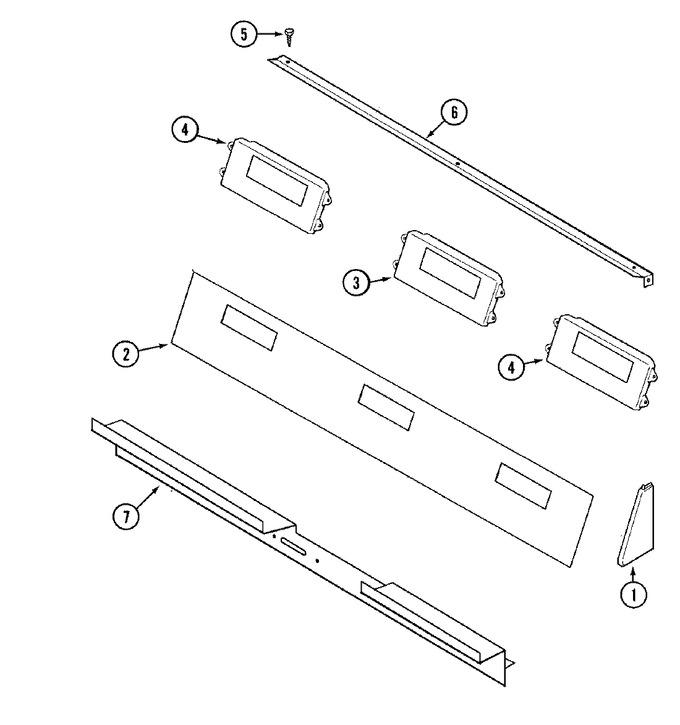

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	71002037		End Cap (lt-blk)	10	Appelez-nous	-
1	71002036		End Cap (rt-blk)	10	Appelez-nous	-
1	71003015		End Cap (rt-blk)	11	Appelez-nous	-
1	71003014		End Cap (lt-blk)	11	Appelez-nous	-
2	71002649		Switch, Membrane Asy. (blk)	10	Appelez-nous	-
2	71002140		Insulator	10	Appelez-nous	-
3	WP71001799		Clock   (Replaces: 71001799)	10		Immediately	$ 371.25
3	WP12990527		Screw   (Replaces: Y708955)	10		Immediately	$ 7.15
4	71002650		Control, Surface	10	Appelez-nous	-
5	WPY706189		Screw   (Replaces: Y706189)	10		Immediately	$ 6.47
6	71002043		Support, Control Panel	10	Appelez-nous	-
7	71002044		Trim, Control Panel (blk)	10	Appelez-nous	-
7	71003016		Trim, Control Panel (blk)	11	Appelez-nous	-
8	71002117		Harness, Convect	10	Appelez-nous	-
8	71002048		Harness, Control (j2)	10	Appelez-nous	-
8	71002049		Harness, Supply (j1)	10	Appelez-nous	-
8	71002050		Harness, Door Lock	10	Appelez-nous	-
8	71002052		Harness, Down Draft (j4)	10	Appelez-nous	-
8	71002059		Harness, Hi-limit	10	Appelez-nous	-
8	74004338		Harness, Meat Probe	10	Appelez-nous	-
8	71002652		Harness, Surface Ctrl (rt)	10	Appelez-nous	-
8	71002653		Harness, Surface Ctrl (lt)	10	Appelez-nous	-
8	71003030		Harness, Hi-limit	12	Appelez-nous	-
8	71003181		Harness, Door Lock	13	Appelez-nous	-
8	71003182		Harness, Oven Lamp	13	Appelez-nous	-
8	71003547		Harness, Surface Control (rt)	15	Appelez-nous	-
8	71002053		Harness, Oven Sensor (j10)	10	Appelez-nous	-
8	71002051		Harness, Cooling Fan	10	Appelez-nous	-
9	71002494		Manual, Use & Care	10	Appelez-nous	-
10	16000326		Guide, Quick Ref - Jenn-air	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
