View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access Panel
02 - Blower Assembly-plenum
03 - Body
04 - Control Panel
05 - Door
06 - Oven
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:

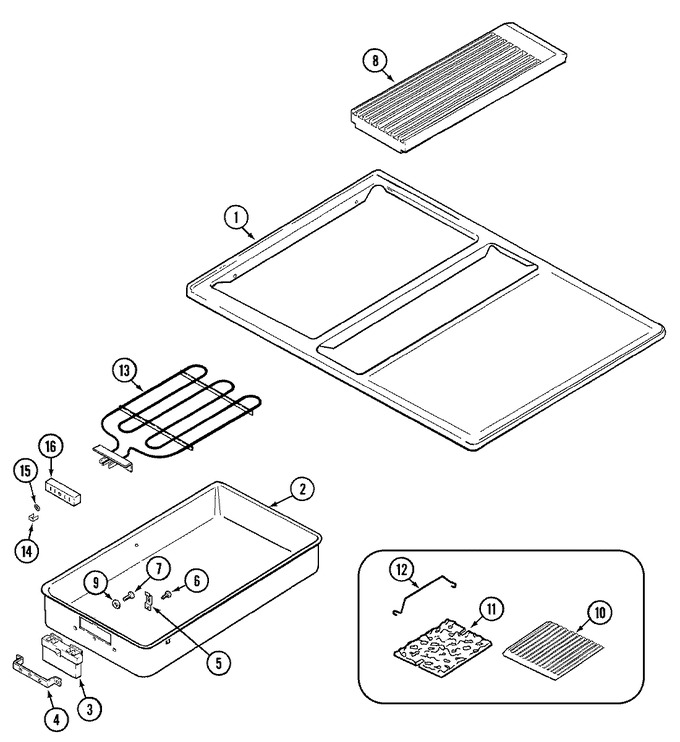

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 71002061 | Top, Main (blk) | 10 |
|
- | ||||
| 2 | 701955 | Pan, Grill (lt) | 10 |
|
- | ||||
| 2 | Y701956 | Pan, Grill (rt) | 10 |
|
- | ||||
| 3 | WPY702434 | Receptacle (ceramic) (Replaces: Y702434) | 10 |
|
Immediately | $ 96.61 | |||
| 3 | 71002654 | Contact/wire Assy. (bl) | 10 |
|
- | ||||
| 3 | 71002655 | Contact/wire Assy. (brn) | 10 |
|
- | ||||
| 3 | 71002656 | Contact/wire Assy. (vlt) | 10 |
|
- | ||||
| 3 | 71002657 | Contact/wire Assy. (yllw) | 10 |
|
- | ||||
| 4 | Y702698 | Bracket | 10 |
|
- | ||||
| 5 | 74004835 | Clip (Replaces: Y702699) | 10 |
|
$ 11.37 | ||||
| 6 | 00489128 | Screw (Replaces: Y705026) | 10 |
|
$ 773.97 | ||||
| 7 | WP12990527 | Screw (Replaces: Y708955) | 10 |
|
Immediately | $ 7.15 | |||
| 8 | 71002063 | Grill, Air (blk) | 10 |
|
- | ||||
| 9 | Y707664 | Washer | 10 |
|
- | ||||
| 10 | 71002599 | Grate, Grill (single) | 10 |
|
- | ||||
| 11 | 708929 | Plate, Rock | 10 |
|
- | ||||
| 12 | 700819 | Support, Rock Plate | 10 |
|
$ 71.81 | ||||
| 13 | WP5700M426-60 | Element, Grill (energy Saver) (Replaces: 71001582) | 10 |
|
$ 382.26 | ||||
| 14 | Y700450 | Clip, Shunt | 10 |
|
$ 9.51 | ||||
| 15 | Y708862 | Nut, Speed | 10 |
|
$ 13.08 | ||||
| 16 | WPY708730 | Block, Terminal (Replaces: Y708730) | 10 |
|
Immediately | $ 87.44 |
