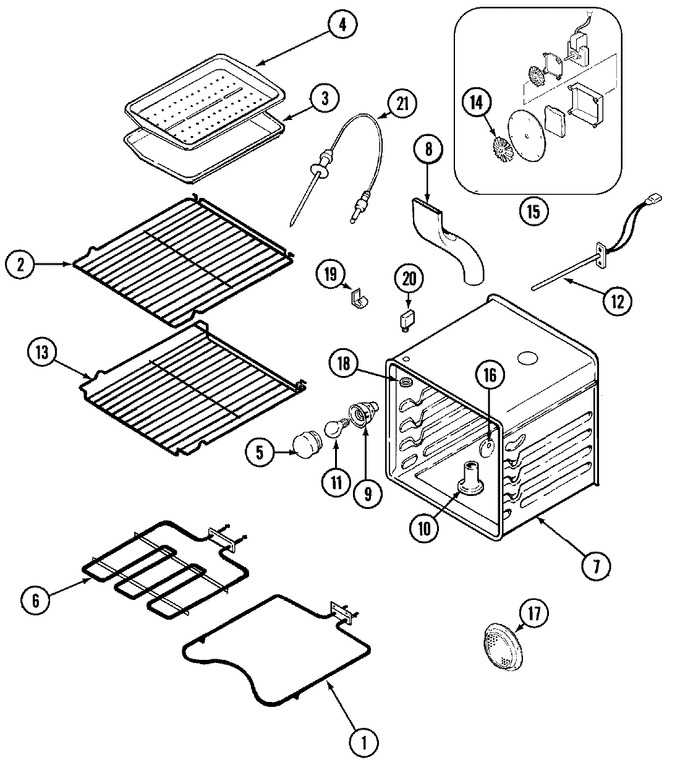

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP71001680 | Element, Bake (Replaces: 71001680) | 10 |
|
$ 110.61 | ||||
| 2 | WPW10282527 | Rack, Oven (Replaces: 71001862) | 10 |
|
$ 149.26 | ||||
| 3 | Y3401F02019 | Pan, Broil | 21 |
|
- | ||||
| 3 | 3401F014-19 | Pan, Broil | 10 |
|
- | ||||
| 4 | 4396923 | Insert, Broil Pan (Replaces: 3413F013-19) | 10 |
|
Immediately | $ 52.04 | |||
| 4 | Y3413F01619 | Insert, Broil Pan | 21 |
|
- | ||||
| 5 | WP9781049 | Lens, Bulb (Replaces: 71001867) | 10 |
|
Immediately | $ 71.93 | |||
| 6 | 71001637 | Element, Broil | 10 |
|
- | ||||
| 7 | 71001165 | Oven Weld Assy. | 10 |
|
- | ||||
| 7 | 71001403 | Washer, Alum | 10 |
|
- | ||||
| 7 | WP7101P434-60 | Screw (Replaces: 71001394) | 10 |
|
$ 6.26 | ||||
| 8 | 71002115 | Tube, Vent | 10 |
|
- | ||||
| 9 | 71001866 | Receptacle, Bulb | 10 |
|
- | ||||
| 10 | 71002079 | Tube, Vent | 10 |
|
- | ||||
| 11 | 8009 | Bulb, Oven (40 Watt Brass) (Replaces: Y707319) | 10 |
|
Immediately | $ 16.80 | |||
| 11 | 71001170 | Clip, Oven | 10 |
|
- | ||||
| 12 | 12001656 | Sensor, Oven (Replaces: Y704657) | 10 |
|
Immediately | $ 39.55 | |||
| 13 | WPW10282527 | Rack, Oven (offset) (Replaces: 71001865) | 10 |
|
$ 149.26 | ||||
| 14 | 71001855 | Wheel, Convect Assy. | 10 |
|
- | ||||
| 15 | 71001858 | Convection Mtr Assy | 10 |
|
$ 148.33 | ||||
| 16 | 702929 | Button, Plug | 10 |
|
- | ||||
| 17 | 71001854 | Plate, Convection (frt) | 10 |
|
- | ||||
| 18 | Y703356 | Nut, Hex 3/8`` | 10 |
|
- | ||||
| 19 | 71001170 | Clip, Oven | 10 |
|
- | ||||
| 20 | 71001863 | Receptacle, Probe | 10 |
|
- | ||||
| 21 | WP71001870 | Probe, Temp (Replaces: 71001870) | 10 |
|
$ 201.71 |
