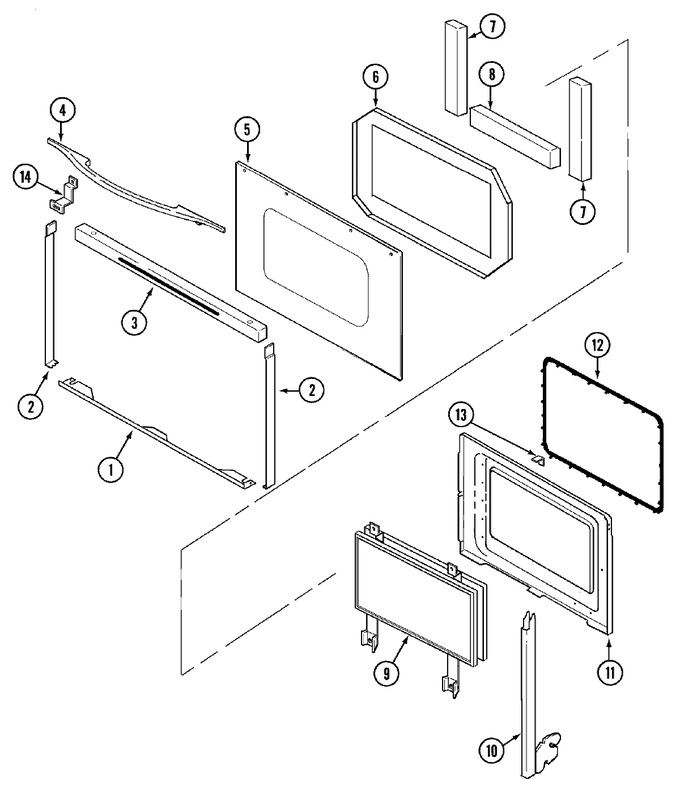

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Access Panel
02 - Blower Assembly-plenum
03 - Body
04 - Control Panel
05 - Door
06 - Oven
07 - Top Assembly
08 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPY706189 | Screw (Replaces: Y706189) | 10 |
|
Immediately | $ 6.47 | |||
| 1 | 71002080 | Trim, Door (lwr-blk) | 10 |
|
- | ||||
| 2 | 71002082 | Trim, Door (side-blk) | 10 |
|
- | ||||
| 3 | 71002084 | Trim, Door (top-blk) | 10 |
|
- | ||||
| 3 | 71002514 | Screw, Black | 10 |
|
- | ||||
| 4 | 71001835 | Handle, Door (blk) | 10 |
|
- | ||||
| 4 | 71002087 | Screw | 10 |
|
- | ||||
| 5 | 71002088 | Glass, Door (blk) | 10 |
|
- | ||||
| 6 | 71001840 | Retainer, Insulation | 10 |
|
- | ||||
| 7 | 71001839 | Insulation, Door (side) | 10 |
|
- | ||||
| 8 | 71001838 | Insulation, Door (btm) | 10 |
|
- | ||||
| 9 | WPW10296816 | Screw (10-32x.625 Sq.hd.) (Replaces: 71001940) | 10 |
|
$ 6.77 | ||||
| 9 | 74009648 | Glass Assy/frm Nla Use74009648 (Replaces: 71001871) | 10 |
|
$ 158.75 | ||||
| 9 | 71001403 | Washer, Alum | 10 |
|
- | ||||
| 10 | 71002090 | Hinge, Door | 10 |
|
- | ||||
| 11 | 71001187 | Liner, Oven Door | 10 |
|
- | ||||
| 12 | WP71001841 | Seal, Door (Replaces: 71001841) | 10 |
|
Immediately | $ 160.14 | |||
| 13 | 71001831 | Plate, Latch | 10 |
|
- | ||||
| 13 | WP355214 | Screw (Replaces: Y700725) | 10 |
|
Immediately | $ 7.26 | |||
| 14 | 71002086 | Bracket, Top Trim | 10 |
|
- |
