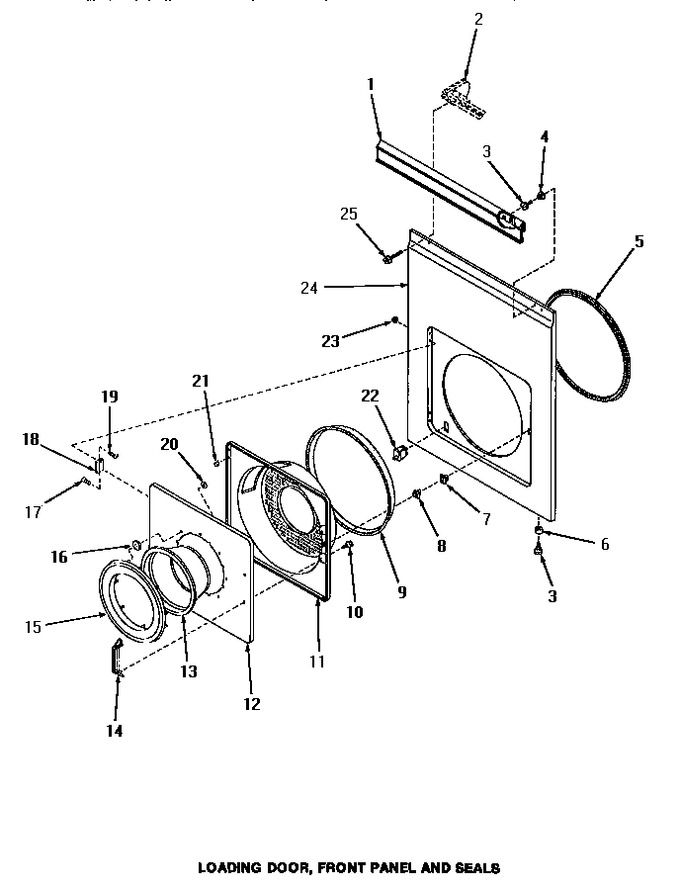

08 - Dryer Loading Door, Front Panel & Seals


09 - Fr Blkhd, Air Duct, Felt Seal & Cylinder


10 - Gas Valve, Igniter & Gas Conversion Kits


11 - Heater Box


12 - Inlet/fill Hose/back Fl Preventer & Brkt


13 - Lint Filter, Washtub & Hub


14 - Mixing Valve Assy


15 - Motor, Exhaust Fan & Belt


16 - Motor, Mtg Bracket, Belt & Idler Assy


17 - Outer Tub, Cover & Pressure Hose


18 - Pump Assy, Hoses & Siphon Break Kit


19 - Rear Blkhd, Felt Seal & Cylinder Roller


20 - Short Post Drive (addition)


21 - Side Panels, Front Panel & Inner Base


22 - Solenoid & Lock Assemblies


23 - Terminal Block & Bracket


24 - Terminals (dryer)


25 - Terminals (gas Dryer)


26 - Terminals (washer)


27 - Transmission Assy


28 - Transmission Assy & Balance Ring


29 - Washer Outer Cabinet & Leveling Legs


30 - Wire Harnesses & Power Cord (dryer)


31 - Wire Harnesses & Power Cord (washer)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	59177		Trim,overlay-dryer Top		Appelez-nous	-
2	Y00000000		See Note Top, Base		Appelez-nous	-
3	WPY014874		Screw, Tapping   (Replaces: 56086)				$ 6.98
4	58810		Spacer		Appelez-nous	-
5	134305		Front Panel Seal   (Replaces: 56091)		Appelez-nous	-
6	56079		Locater, Panel			Immediately	$ 6.95
7	LA-1003		Catch, Door   (Replaces: 54660)			Immediately	$ 24.51
8	LA-1003		Strike, Door (metal)   (Replaces: 54661)			Immediately	$ 24.51
9	61379P		Door Seal   (Replaces: 56163)				$ 39.77
10	52150		Screw, Thermostat		Appelez-nous	-
11	59152		Inner Door Panel		Appelez-nous	-
12	60018L		Outer Door Panel, Almond		Appelez-nous	-
12	60018W		Outer Door Panel, White		Appelez-nous	-
13	57735		Window		Appelez-nous	-
14	54068P		Pull,door		Appelez-nous	-
15	58796		Trim,door		Appelez-nous	-
16	23225		Washer,7/32idx1.00odx1		Appelez-nous	-
17	Sub. To D512973		Screw, 8b-16x5/8 Tap   (Replaces: 52864)		Appelez-nous	-
18	56045		Hinge (dryer)				$ 9.33
19	22649		Screw,8-32 X 13/32 Fl		Appelez-nous	-
20	58030		Nut,push		Appelez-nous	-
21	23407		Nut,speed-8a Tinn C15		Appelez-nous	-
22	W10169313		Door Switch   (Replaces: 57012)			Immediately	$ 29.18
23	Sub. To 807429P		Nut K   (Replaces: 51236)		Appelez-nous	-
24	56537L		Front Panel, Almond		Appelez-nous	-
24	56537W		Front Panel, White		Appelez-nous	-
25	29942		Screw		Appelez-nous	-
NI	1N4004		Sticker,warning-dryer Door   (Replaces: 58893)		Appelez-nous	-
