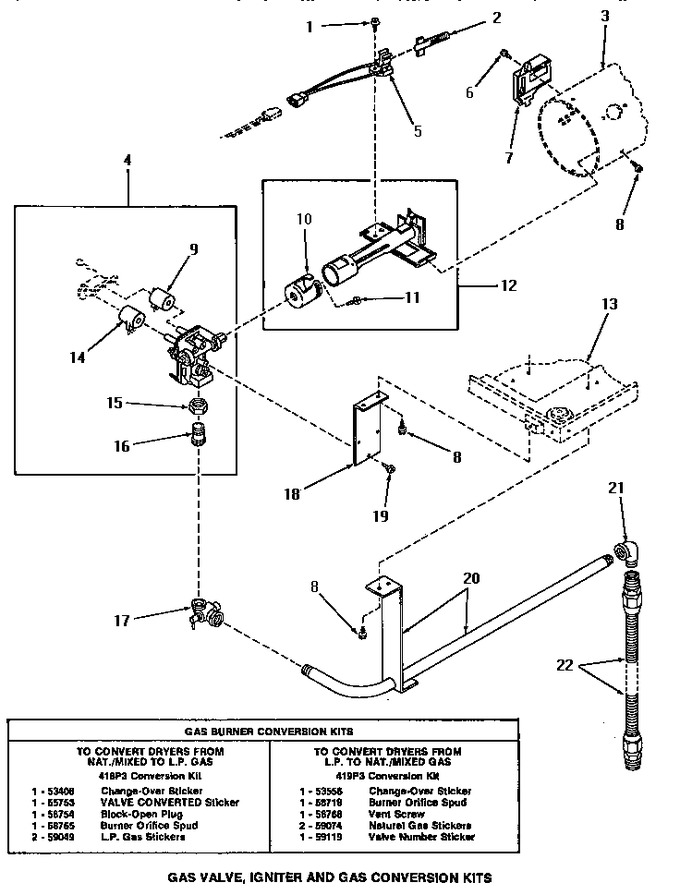

10 - Gas Valve, Igniter & Gas Conversion Kits


11 - Heater Box


12 - Inlet/fill Hose/back Fl Preventer & Brkt


13 - Lint Filter, Washtub & Hub


14 - Mixing Valve Assy


15 - Motor, Exhaust Fan & Belt


16 - Motor, Mtg Bracket, Belt & Idler Assy


17 - Outer Tub, Cover & Pressure Hose


18 - Pump Assy, Hoses & Siphon Break Kit


19 - Rear Blkhd, Felt Seal & Cylinder Roller


20 - Short Post Drive (addition)


21 - Side Panels, Front Panel & Inner Base


22 - Solenoid & Lock Assemblies


23 - Terminal Block & Bracket


24 - Terminals (dryer)


25 - Terminals (gas Dryer)


26 - Terminals (washer)


27 - Transmission Assy


28 - Transmission Assy & Balance Ring


29 - Washer Outer Cabinet & Leveling Legs


30 - Wire Harnesses & Power Cord (dryer)


31 - Wire Harnesses & Power Cord (washer)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	52973		Screw		Appelez-nous	-
2	D510099		Igniter,80 Volt   (Replaces: 55438)				$ 45.40
3	Y00000000		See Note Burner Housing		Appelez-nous	-
4	58804		Assy,valve-gas-single-		Appelez-nous	-
5	56233		Igniter Bracket		Appelez-nous	-
6	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
7	WP338906		Sensor, Flame   (Replaces: Y56231)			Immediately	$ 46.72
8	WP27001200		Hex Head Screw   (Replaces: 56264)				$ 6.91
9	279834		Coil, Secondary   (Replaces: 58804B)			Immediately	$ 29.57
10	53007		Shutter,air		Appelez-nous	-
11	53006		Round Head Screw		Appelez-nous	-
12	Y56234		Assembly, Burner		Appelez-nous	-
13	Y00000000		See Note Top, Base		Appelez-nous	-
14	58804A		Booster & Holding Coil			Immediately	$ 28.02
15	Y58281		Nut		Appelez-nous	-
16	56282		Nipple		Appelez-nous	-
17	M406102		Shut-off Valve		Appelez-nous	-
18	58881		Bracket,mounting		Appelez-nous	-
19	WP489128		Screw, 8t-32x3/8 He   (Replaces: 56124)				$ 9.79
20	59003		Assy,lead-in Pipe		Appelez-nous	-
21	51792		Street Ell		Appelez-nous	-
22	59138		Assy,gas Connector & A		Appelez-nous	-
NI	419P3		Kit,conversion-ng		Appelez-nous	-
NI	59074		Natural Gas Stickers		Appelez-nous	-
NI	53408		Label,change-over		Appelez-nous	-
NI	COMM PART		Screw,vent   (Replaces: 58768)		Appelez-nous	-
NI	53556		Sticker,conversion		Appelez-nous	-
NI	58719		Orifice,screw		Appelez-nous	-
NI	58755		Orifice,lp		Appelez-nous	-
NI	COMM PART		Plug,block Open   (Replaces: 58754)		Appelez-nous	-
NI	418P3		Kit, Conversion-lp		Appelez-nous	-
NI	59119		Label		Appelez-nous	-
NI	59049		Sticker		Appelez-nous	-
NI	55753		Valve Converted Sticker		Appelez-nous	-
