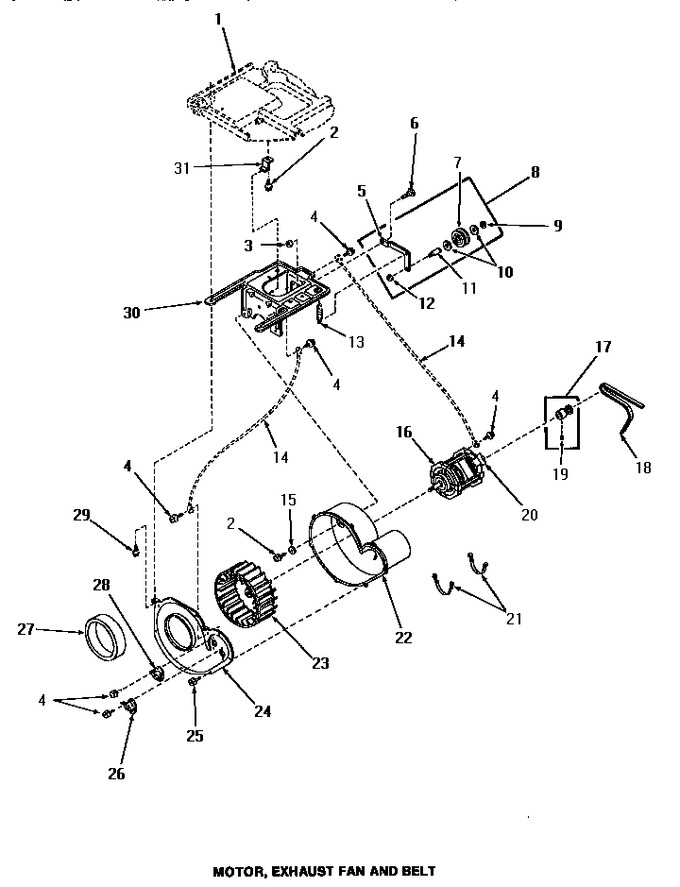

15 - Motor, Exhaust Fan & Belt


16 - Motor, Mtg Bracket, Belt & Idler Assy


17 - Outer Tub, Cover & Pressure Hose


18 - Pump Assy, Hoses & Siphon Break Kit


19 - Rear Blkhd, Felt Seal & Cylinder Roller


20 - Short Post Drive (addition)


21 - Side Panels, Front Panel & Inner Base


22 - Solenoid & Lock Assemblies


23 - Terminal Block & Bracket


24 - Terminals (dryer)


25 - Terminals (gas Dryer)


26 - Terminals (washer)


27 - Transmission Assy


28 - Transmission Assy & Balance Ring


29 - Washer Outer Cabinet & Leveling Legs


30 - Wire Harnesses & Power Cord (dryer)


31 - Wire Harnesses & Power Cord (washer)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00000000		See Note Top, Base		Appelez-nous	-
2	WP27001200		Hex Head Screw   (Replaces: 56264)				$ 6.91
3	WPW10139757		Nut, Hex Jam 1/4-20l   (Replaces: 52566)				$ 7.16
4	WP3177991		Screw, 8b-18 X 1/4 He   (Replaces: 23222)			Immediately	$ 6.47
5	56057		Lever,idler		Appelez-nous	-
6	56587		Screw,1/4-20 Hex Hd Sh		Appelez-nous	-
7	WPY54414		Assembly, Wheel & Bearing   (Replaces: Y54414)			Immediately	$ 19.11
8	WP56170P		Assy, Idler Lever   (Replaces: Y56170)				$ 67.98
9	WP23748		Ring, Retaining   (Replaces: 23748)			Immediately	$ 10.75
10	WP233520		Washer, 501 Id X3/4 Odx   (Replaces: 52549)			Immediately	$ 7.16
11	WP56461		Shaft   (Replaces: 56461)				$ 85.03
12	56156		Nut, 3/8-16 Serrated				$ 6.95
13	WP56076		Spring, Idler   (Replaces: 56076)				$ 65.70
14	Y00000000		See Note Ground Wire, Green		Appelez-nous	-
15	20492		Washer		Appelez-nous	-
16	Y58044		Motor,1sp-120/60		Appelez-nous	-
17	56133		Motor Pulley Assembly		Appelez-nous	-
18	56095P		Belt,cylinder   (Replaces: 56095)			Immediately	$ 33.03
19	52906		Setscrew		Appelez-nous	-
20	53249		Switch		Appelez-nous	-
20	53226		Switch,motor		Appelez-nous	-
21	WP660658		Clamp, Motor Mount   (Replaces: Y58047)				$ 7.05
22	D511969WP		Housing, Blower   (Replaces: 56020)				$ 61.51
23	D510139P		Assembly, Blower Fan   (Replaces: 56000)			Immediately	$ 101.08
24	56059		Exhaust Fan Impeller		Appelez-nous	-
25	WP90767		Screw,8b-18 X 3/8 Ind   (Replaces: 23962)			Immediately	$ 7.04
26	56410		Thermostat				$ 30.49
27	56065		Seal				$ 14.16
28	56471		Thermostat		Appelez-nous	-
29	71035		Screw And Lockwasher		Appelez-nous	-
30	Y58045		Mount, Motor		Appelez-nous	-
31	58776		Support Bracket		Appelez-nous	-
NI	Y0056157		Sub 86495, Switch, Light		Appelez-nous	-
NI	56440		Thermostat		Appelez-nous	-
