Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 58751 Air Duct Appelez-nous -
2 Y54608 Light Bulb Appelez-nous -
3 56148 Assy, Cylinder Light Appelez-nous -
4 51345 Lockwasher Appelez-nous -
5 22145 Screw,6z-20x 3/8 Ss Rd Appelez-nous -
6 56175 Assy,cylinder Pack Appelez-nous -
7 56013 Baffle,cylinder-short- Appelez-nous -
8 56131 Screw,10bt X 1 Tapping Appelez-nous -
9 WP56088 Assy,seal   (Replaces: 56088) Special Order $ 31.10

10 Y56090 Seal Strap Appelez-nous -
11 52310 Spring Special Order $ 28.08

12 WP3177991 Screw, 8b-18 X 1/4 He   (Replaces: 23222) In-Stock Immediately $ 6.47

13 WP500121 Pad,felt   (Replaces: 56058) In-Stock Immediately $ 7.75

14 57005 Glide,cylinder-rulon F Special Order $ 6.58

15 25232 Screw,8ab-18x7/8 Oval Appelez-nous -
16 61376P Lint Filter   (Replaces: 57025) Special Order $ 89.22

17 57019P Dryer Front Bulkhead Appelez-nous -
18 WP27001200 Hex Head Scrw   (Replaces: 25723) Special Order $ 6.91

19 25724 Hex Head Screw Appelez-nous -
20 56938 Bumper Appelez-nous -
21 WP90767 Screw,8b-18 X 3/8 Ind   (Replaces: 23962) In-Stock Immediately $ 7.04

22 58494 Cover,access-air Duct Appelez-nous -
23 58569 Button,plug Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

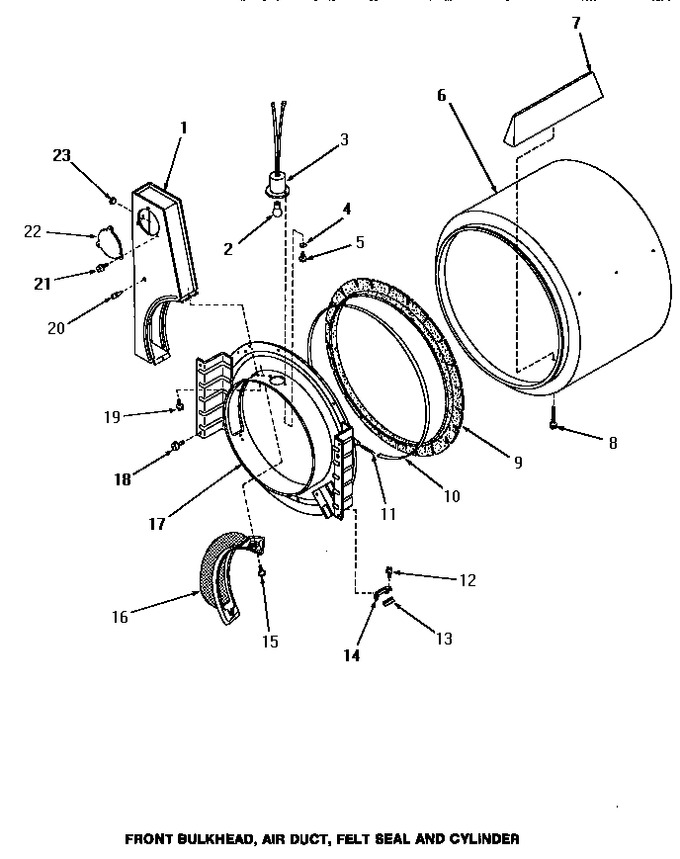

Diagram for UG8290
