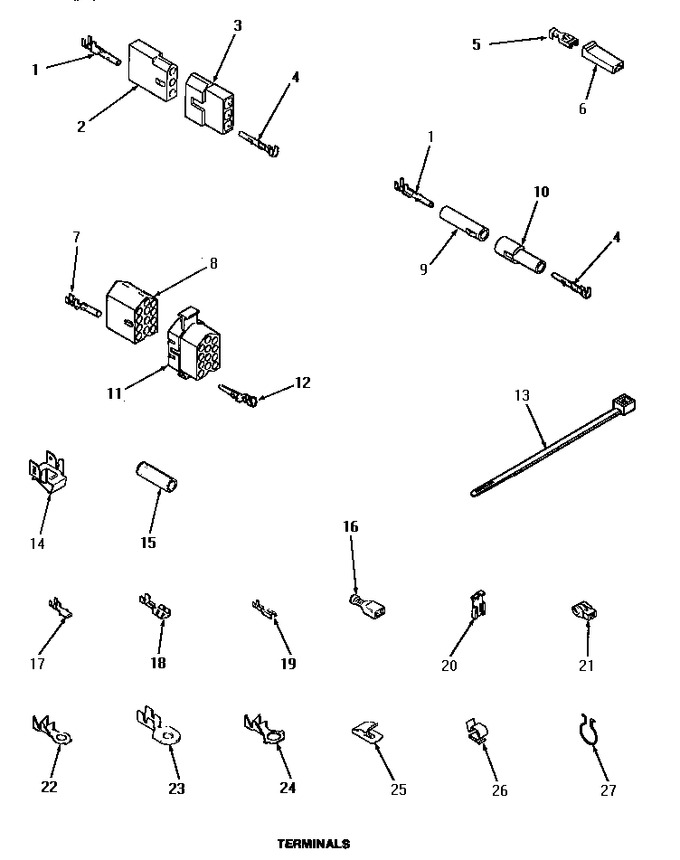

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	Y00117		Female Socket Terminal		Appelez-nous	-
2	23039		Receptacle,3 Circuit		Appelez-nous	-
3	23040		Plug, 3 Circuit		Appelez-nous	-
4	Y00116		Terminal,pin-male		Appelez-nous	-
5	Y00115		Terminal,spade-1/4 Fem		Appelez-nous	-
6	90789		Connector		Appelez-nous	-
7	Y00128		Terminal,pin-1/8 Femal		Appelez-nous	-
7	00130		Terminal,pin-1/8 Femal				$ 7.35
8	56855		Receptacle,12 Circuit		Appelez-nous	-
9	26301		Receptacle,molex				$ 78.98
10	26302		Plug,1 Circuit		Appelez-nous	-
11	54522		Plug,nylon		Appelez-nous	-
12	Y00129		Terminal,pin-1/8 Male		Appelez-nous	-
12	Y00127		Terminal,pin-1/8 Male		Appelez-nous	-
13	COMM PART		Wire Tie   (Replaces: 55881)		Appelez-nous	-
14	Y00161		Ground Clip		Appelez-nous	-
15	Y21365		Insulator Sleeve		Appelez-nous	-
16	WP285432		Terminal   (Replaces: Y00163)				$ 6.99
16	WP7405P034-60		Terminal 3/16`` Female   (Replaces: Y00165)				$ 5.41
17	Y00139		Male Tab Terminal(12 Gauge)		Appelez-nous	-
18	Y00119		Spade Terminal(18 Gauge)		Appelez-nous	-
19	00112		Terminal,spade-3/16 Fe		Appelez-nous	-
20	Y00120		Terminal,flag-1/4 Fema		Appelez-nous	-
21	70210		Insulator,blue		Appelez-nous	-
22	00110		Terminal,ring-10 Stud				$ 9.23
23	Y00111		Terminal,ring-10 Stud		Appelez-nous	-
24	Y00113		Terminal,ring-1/4 Stud		Appelez-nous	-
25	21312		Cable Clip		Appelez-nous	-
26	21036		Clip,cable				$ 62.49
27	51291		Clip,wire		Appelez-nous	-
