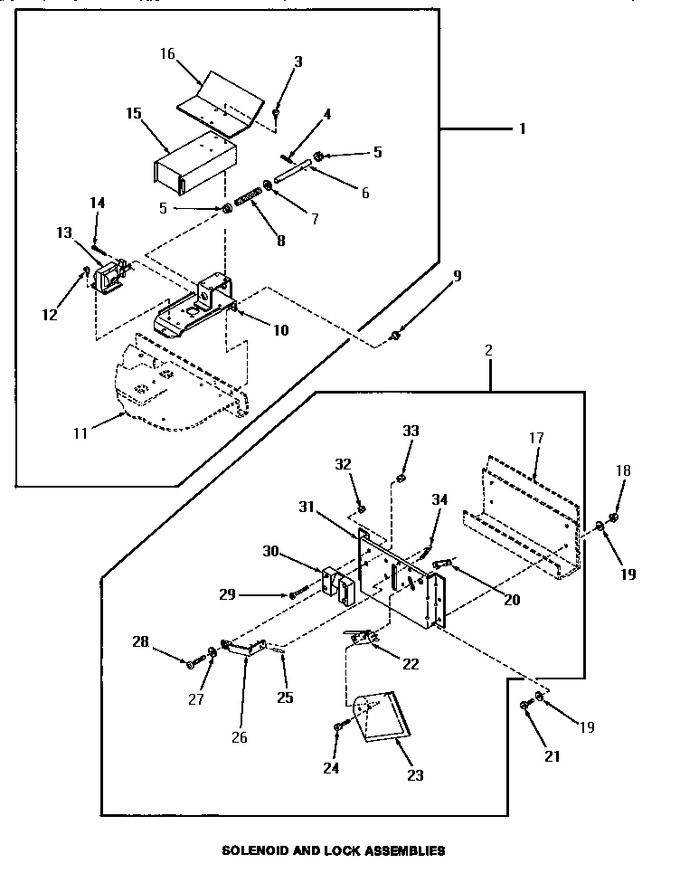

22 - Solenoid & Lock Assemblies


23 - Terminal Block & Bracket


24 - Terminals (dryer)


25 - Terminals (gas Dryer)


26 - Terminals (washer)


27 - Transmission Assy


28 - Transmission Assy & Balance Ring


29 - Washer Outer Cabinet & Leveling Legs


30 - Wire Harnesses & Power Cord (dryer)


31 - Wire Harnesses & Power Cord (washer)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	29832		Assy,solenoid,bracket		Appelez-nous	-
2	30101		Locking Pin Ramp Assembly		Appelez-nous	-
3	03796		Phillips Head Screw		Appelez-nous	-
4	51161		Pin,roll 1/8 X 3/4		Appelez-nous	-
5	29813		Bushing,shorty		Appelez-nous	-
6	29829		Pin,locking		Appelez-nous	-
7	25043		Washer				$ 13.49
8	29899		Spring,compression		Appelez-nous	-
9	WP27001200		Screw   (Replaces: 58637)				$ 6.91
10	29833		Assy,bracket & Solenoi		Appelez-nous	-
11	Y00000000		See Note Washer Inner Base		Appelez-nous	-
12	03796		Phillips Head Screw		Appelez-nous	-
13	20978		Solenoid		Appelez-nous	-
14	30106		Sub 32330		Appelez-nous	-
15	30314		Shield		Appelez-nous	-
16	30331		Shield		Appelez-nous	-
17	Y00000000		See Note Washer Outer Cabinet		Appelez-nous	-
18	M0282009		Locknut   (Replaces: 23951)				$ 12.06
19	20492		Washer		Appelez-nous	-
20	Y10506		Speed Nut		Appelez-nous	-
21	Y90576		Hex Head Screw		Appelez-nous	-
22	29838		Switch				$ 113.73
23	30313		Insulator,switch		Appelez-nous	-
24	10398		Screw			Immediately	$ 33.34
25	51161		Pin,roll 1/8 X 3/4		Appelez-nous	-
26	30078		Lever,locking Pin		Appelez-nous	-
27	1027		Nylon Washer   (Replaces: 30102)			Immediately	$ 13.61
28	30085		Screw,8-32		Appelez-nous	-
29	30084		Screw,6-32x7/8 Flat Cs		Appelez-nous	-
30	30080		Locking Pin Ramp		Appelez-nous	-
31	30079		Mounting Bracket		Appelez-nous	-
32	29787		Nut,keps 6/32		Appelez-nous	-
33	Sub. To 807429P		Nut K   (Replaces: 51236)		Appelez-nous	-
34	29897		Spring,tension		Appelez-nous	-
