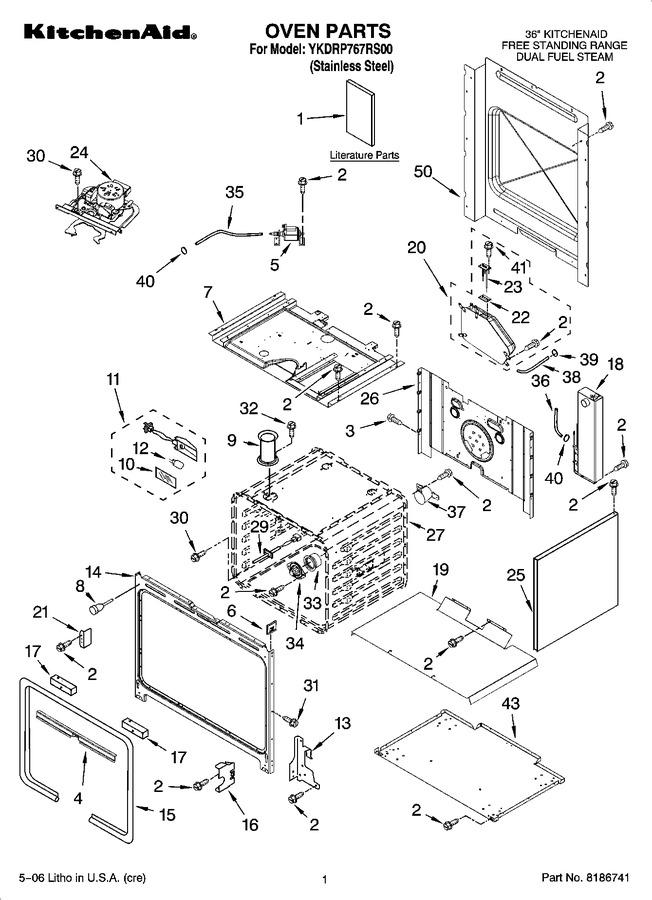

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3191638 | Tech Sheet (safer Cooking Tips) |
|
- | |||||
| 1 | 9759133 | Tech Sheet (safer Cooking Tips) |
|
- | |||||
| 1 | 9762871 | Installation Instructions |
|
- | |||||
| 1 | 9762892 | Use & Care Guide |
|
- | |||||
| 1 | 9758979 | Tech Sheet (english) |
|
- | |||||
| 1 | W10039360 | Tech Sheet (french) |
|
- | |||||
| 1 | 9759441 | Tech Sheet (conversion Instructions) |
|
- | |||||
| 2 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 3 | WP4449743 | Screw, 8-32 X 3/8 (Replaces: 4449743) |
|
$ 6.47 | |||||
| 4 | 9758595 | Retainer, Gasket |
|
- | |||||
| 5 | 8186360 | Pump, Drain (120v) (includes Clamps) (Replaces: 9761101) |
|
$ 307.39 | |||||
| 6 | WP4450118 | Nut,(u-type Clip) (Replaces: 4450118) |
|
$ 7.16 | |||||
| 7 | 9761161 | Top, Chassis |
|
- | |||||
| 8 | W10105790 | Bumper, Door (Replaces: 9760749) |
|
$ 6.35 | |||||
| 9 | W10861715 | Tube, Vent (Replaces: 4452158) |
|
$ 104.97 | |||||
| 10 | 4452163 | Lens, Light |
|
$ 12.33 | |||||
| 11 | WP4448972 | Oven Light Assy (Replaces: 4448972) |
|
$ 98.46 | |||||
| 11 | 4449748 | Screw |
|
$ 12.20 | |||||
| 12 | WP4452164 | Bulb, Light (Replaces: 4452164) |
|
Immediately | $ 60.59 | ||||
| 13 | WP4455606 | Hinge Receiver (right) (Replaces: 4455606) |
|
Immediately | $ 107.47 | ||||
| 13 | WP4455605 | Hinge Receiver (left) (Replaces: 4455605) |
|
Immediately | $ 103.82 | ||||
| 14 | 9760757 | Frame, Front |
|
- | |||||
| 15 | W11676901 | Gasket, Door (Replaces: 8300142) |
|
$ 63.24 | |||||
| 16 | 4452152 | Bracket, Mounting |
|
$ 30.15 | |||||
| 17 | 4452260 | Spacer, Foam |
|
- | |||||
| 18 | 8186352 | Boiler (Replaces: 9758598) |
|
$ 296.08 | |||||
| 19 | 8300184 | Support, Insulation |
|
- | |||||
| 20 | 9763740 | Reservoir (includes Clamps) |
|
- | |||||
| 21 | 4455510 | Bracket, Support |
|
- | |||||
| 22 | 9762243 | Gasket, Sensor |
|
- | |||||
| 23 | 9761107 | Sensor, Level |
|
- | |||||
| 24 | WP9760889 | Latch, Motorized (Replaces: 9760889) |
|
Immediately | $ 295.79 | ||||
| 25 | W10782197 | Side, Chassis (Replaces: 4455641) |
|
$ 129.16 | |||||
| 26 | 9761160 | Back, Chassis |
|
- | |||||
| 29 | WPW10131825 | Sensor (Replaces: 4455636) |
|
Immediately | $ 86.25 | ||||
| 30 | WP4449154 | Screw, 8-32 X .440 (Replaces: 4449154) |
|
$ 6.80 | |||||
| 31 | WP4449040 | Screw, 8-18 X 3/8 (Replaces: 4449040) |
|
$ 6.78 | |||||
| 32 | W11233072 | Screw (2) (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 33 | 9758597 | Orifice, Boiler |
|
$ 42.82 | |||||
| 34 | 9758596 | Cover, Orifice Boiler |
|
- | |||||
| 35 | 8186365 | Hose, (blue) (pump To Outlet) (Replaces: 9762138) |
|
- | |||||
| 36 | 8186366 | Hose (gray) (boiler To Pump) (Replaces: 9762139) |
|
- | |||||
| 37 | WP4450249 | Thermostat (tod) (150c) Spst (Replaces: 4450249) |
|
Immediately | $ 181.29 | ||||
| 38 | 8186367 | Hose (green) (boil`r To Resv`r) (Replaces: 9761154) |
|
- | |||||
| 39 | WP489503 | Clamp (Replaces: 9761147) |
|
Immediately | $ 9.68 | ||||
| 40 | WP489503 | Clamp (Replaces: 9761146) |
|
Immediately | $ 9.68 | ||||
| 41 | 9762844 | Screw |
|
- | |||||
| 43 | 8300965 | Base, Chassis |
|
- | |||||
| 50 | 8300159 | Insulation, Back |
|
- | |||||
| 50 | 9758583 | Cover, Back |
|
$ 215.30 | |||||
| 50 | 8300158 | Insulation, Wrap |
|
- |
