Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 9758955 Vent, Exhaust Appelez-nous -
2 9758954 Vent-top Appelez-nous -
3 9759837 Blower 60mm Special Order $ 279.73

4 9758953 Vent-bottom Appelez-nous -
5 WP9760588 Transformer, Light   (Replaces: 9760588) Special Order $ 237.07

6 8300642 Transformer, Control Appelez-nous -
7 WP4449809 Screw, 8-18 X 3/8   (Replaces: 4449809) In-Stock Immediately $ 6.47

8 9758956 Bracket, Blower Appelez-nous -
9 9758999 Fuse-thermo (105c 15a/120vac) Special Order $ 102.01

11 WP8203546 Block, Terminal   (Replaces: 4449868) In-Stock Immediately $ 27.12

14 4452442 Side, Control Top Appelez-nous -
24 9761156 Control, Taurus (appliance Mngr) Special Order $ 321.25

25 WP8302143 Suppressor   (Replaces: 8302143) Special Order $ 120.94

26 9758985 Control, Steam Special Order $ 320.89

27 4450800 Screw, 8-32 X 3/8 Special Order $ 11.55

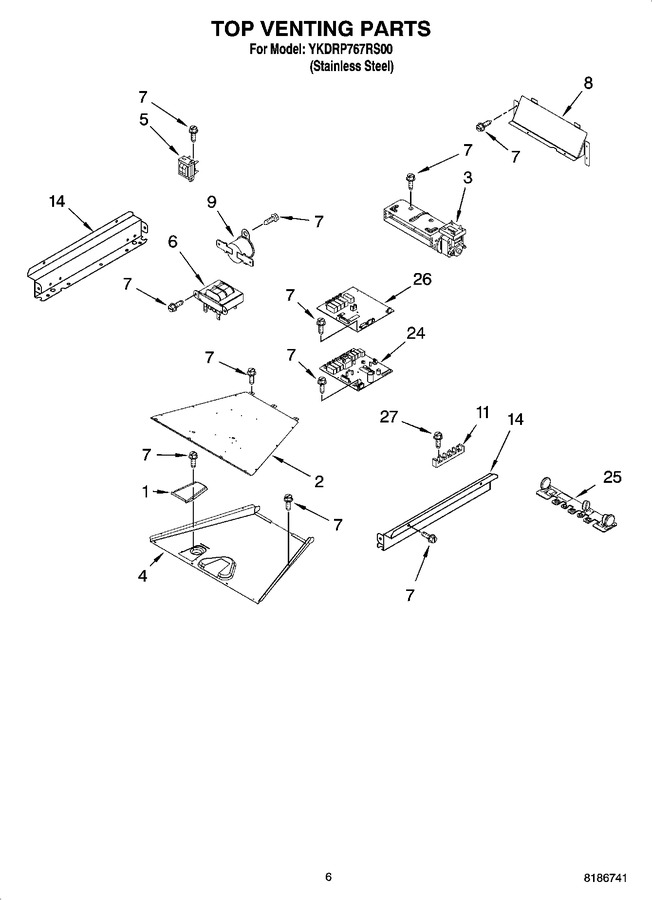

    View Diagram in Separate Window     Print Icon   Print Part List
