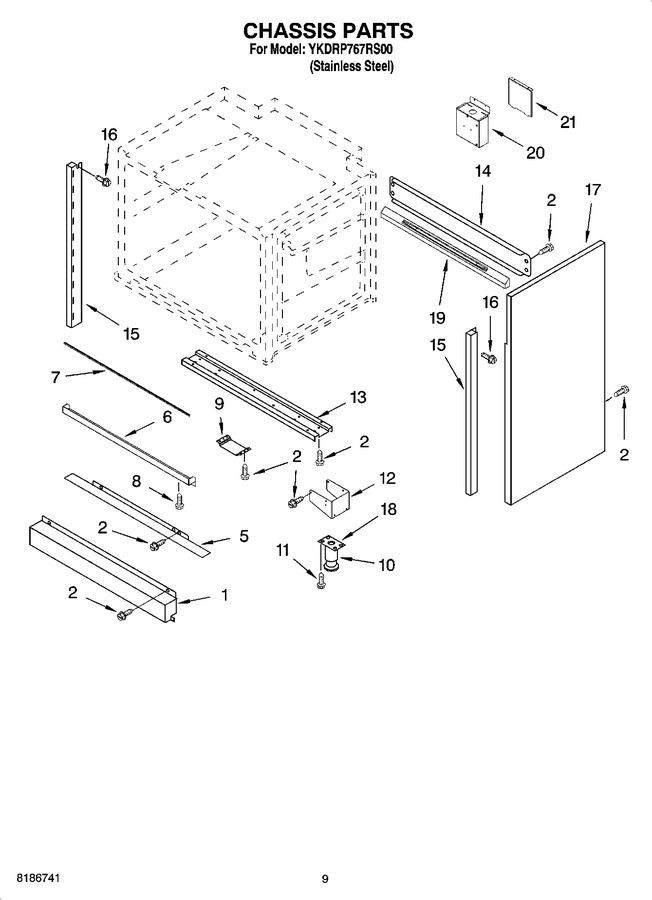

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4452803 | Vent, Bottom Lower |
|
- | |||||
| 2 | WP4449809 | Screw, 8-18 X 3/8 (Replaces: 4449809) |
|
Immediately | $ 6.47 | ||||
| 5 | 4452801 | Deflector, Center |
|
- | |||||
| 6 | 9762877 | Vent, Center |
|
- | |||||
| 7 | 4453327 | Gasket |
|
- | |||||
| 8 | WP3196557 | Screw, 8-18 X 3/8 (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 9 | 9759092 | Bracket, Mounting Regulator |
|
- | |||||
| 10 | WP9759117 | Foot (Replaces: 9759117) |
|
$ 127.42 | |||||
| 11 | 3400518 | Screw, 5/16-12 X 5/8 |
|
$ 11.68 | |||||
| 12 | 4455644 | Gusset |
|
- | |||||
| 13 | 4455648 | Support, Channel |
|
- | |||||
| 14 | W10015720 | Brace, Rear |
|
- | |||||
| 15 | 4453205 | Trim, Front (left Side) |
|
- | |||||
| 15 | 4452804 | Trim, Front (right Side) |
|
- | |||||
| 16 | WP3400805 | Screw, 8-18 X 3/8 (Replaces: 3400837) |
|
$ 6.47 | |||||
| 17 | 9761934 | Side Chassis (right Side) |
|
- | |||||
| 17 | 9761933 | Side Chassis (left Side) |
|
- | |||||
| 18 | WP9759118 | Plate (Replaces: 9759118) |
|
$ 132.80 | |||||
| 19 | 9762143 | Tray, Drip |
|
- | |||||
| 20 | W10015730 | Box, Terminal |
|
- | |||||
| 21 | 9760482 | Cover, Terminal Box |
|
- | |||||
| W10138103 | Bracket, Anti-tip (1 3/4``) (Replaces: 4453202) |
|
$ 167.49 | ||||||
| 242832 | Wire (14 Ga. 200 C Yellow) |
|
- | ||||||
| 3191506 | Bushing, Conduit |
|
- | ||||||
| 1129449 | Bushing |
|
- | ||||||
| 9760828 | Conduit |
|
- | ||||||
| 9756350 | Cord, Power |
|
$ 60.82 | ||||||
| WP9759877 | Retainer, Strain Relief (Replaces: 9759877) |
|
$ 17.33 | ||||||
| WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.47 | |||||
| WP112432 | Nut (Replaces: 112432) |
|
$ 7.16 | ||||||
| 4450800 | Screw, Ground |
|
$ 11.55 | ||||||
| 8284782 | Lp Orifice Kit |
|
- | ||||||
| 9763620 | Harness, Sensor |
|
- | ||||||
| W10138103 | Bracket, Anti-tip (1``) (Replaces: 4453141) |
|
$ 167.49 | ||||||
| 242820 | Wire (14 Ga. 150 C Black) |
|
- | ||||||
| 591014 | Adhesive Loctite (1/3 Oz.) |
|
- | ||||||
| WP482338 | Sealer, Silastic (3 Oz.) (Replaces: 482338) |
|
Immediately | $ 57.16 | |||||
| 4453192 | Seal, Ribbon Cable |
|
- | ||||||
| 4453191 | Seal, Access Panel |
|
- | ||||||
| 2261590 | Cleaner, S.steel |
|
- | ||||||
| 242828 | Wire (12 Ga. 150 C Black) |
|
- | ||||||
| 242821 | Wire (14 Ga. 150 C Blue) |
|
- | ||||||
| 242822 | Wire (14 Ga. 150 C Brown) |
|
- | ||||||
| 9763619 | Harness, Wire (main) |
|
$ 158.08 | ||||||
| 242830 | Wire (14 Ga. 200 C Brown) |
|
- | ||||||
| 242823 | Wire (14 Ga. 150 C Green) |
|
- | ||||||
| 242824 | Wire (14 Ga. 150 C Orange) |
|
- | ||||||
| 242829 | Wire (12 Ga. 150 C Red) |
|
- | ||||||
| 242825 | Wire (14 Ga. 150 C Red) |
|
- | ||||||
| 242831 | Wire (14 Ga. 200 C Red) |
|
$ 342.23 | ||||||
| 242826 | Wire (14 Ga. 150 C White) |
|
- | ||||||
| 242827 | Wire (14 Ga. 150 C Yellow) |
|
- | ||||||
| 3196896 | Clip-wire |
|
- | ||||||
| 4456628 | Harness, Wire (ignitor 39``) |
|
$ 95.35 | ||||||
| 4456627 | Harness, Wire (ignitor 28``) |
|
$ 189.13 | ||||||
| 9761098 | Harness, Signal |
|
- | ||||||
| 9761106 | Wire, Jumper (oven Light) |
|
- | ||||||
| 9762508 | Harness, Wire (dsi, 36``, Steam) |
|
$ 124.41 |
