01 - Oven Parts


02 - Oven Door Parts


03 - Internal Oven Parts


04 - Control Panel Parts


05 - Top Venting Parts


06 - Cooktop Parts


07 - Burner Box And Manifold Parts


08 - Chassis Parts, Optional Parts

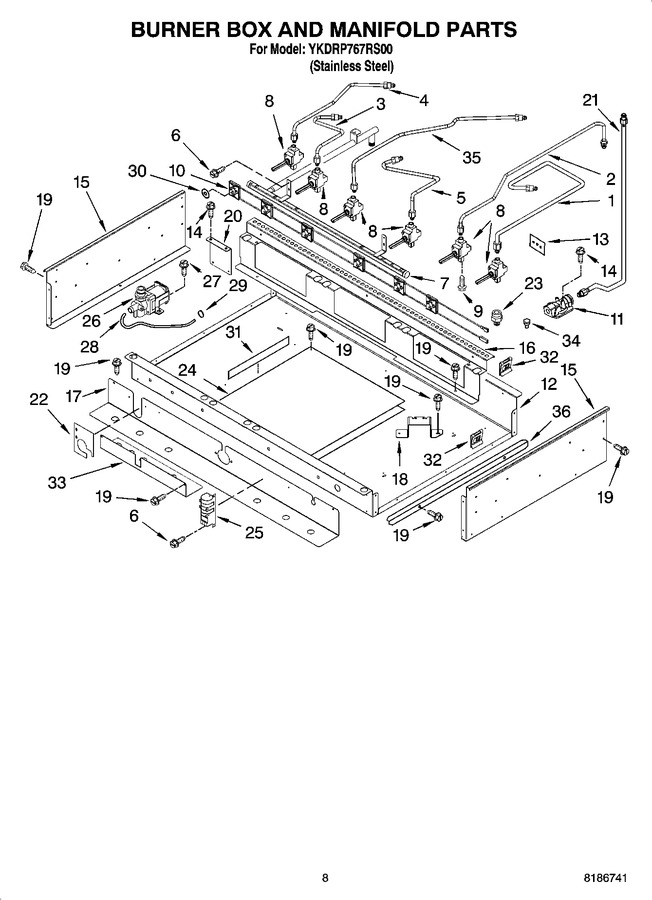

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8300231		Tubing, Gas Burner - Rf		Appelez-nous	-
2	8300230		Tubing, Gas Burner - Rr		Appelez-nous	-
3	8300187		Tubing, Gas Burner - Lf		Appelez-nous	-
4	8300188		Tubing, Gas Burner - Lr		Appelez-nous	-
5	8300229		Tubing, Gas Burner - Cf		Appelez-nous	-
6	WP12990527		Screw, 8-18 X 3/8   (Replaces: 3400843)			Immediately	$ 7.15
7	4457248		Manifold		Appelez-nous	-
8	4456818		Valve, Burner (turbi (4) (bronze))				$ 231.30
8	WP4456816		Valve, Burner (small (2) (red))   (Replaces: 4456816)			Immediately	$ 286.55
9	8523704		Bolt, Gas Valve (6)		Appelez-nous	-
10	4456903		Burner Switch & Harness Assembly				$ 113.53
11	WP9759091		Regulator, Pressure   (Replaces: 9759091)			Immediately	$ 291.80
12	9762135		Box, Burner		Appelez-nous	-
13	W10491984		Seal, Switch   (Replaces: 3192439)				$ 10.33
14	WP4449809		Screw, 8-18 X 3/8   (Replaces: 4449809)			Immediately	$ 6.47
15	8285606		Side, Burner Box (left Side)		Appelez-nous	-
15	8285607		Side, Burner Box (right Side)		Appelez-nous	-
16	9759140		Support, Rear		Appelez-nous	-
17	9758987		Support, Cooktop		Appelez-nous	-
18	3192811		Bracket, Burner		Appelez-nous	-
19	WP3177991		Screw, 8-18 X 1/4   (Replaces: 3177991)			Immediately	$ 6.47
20	9758964		Bracket, Valve		Appelez-nous	-
21	8301252		Tube, Manifold		Appelez-nous	-
22	9762133		Cover, Manifold		Appelez-nous	-
23	4453115		Adapter, Compression (1/2`` Female)				$ 108.60
23	4453116		Adapter, Compression (1/2`` Male)				$ 153.80
24	8284964		Cover, Burner Box		Appelez-nous	-
25	WPW10110486		Module, Spark   (Replaces: 8522427)				$ 285.33
26	8186361		Valve, Overflow   (Replaces: 9761102)				$ 252.95
27	WPW10132940		Screw, 8-32   (Replaces: 3196184)				$ 8.50
28	8186363		Hose (white) (valve To Resrv`r)   (Replaces: 9761150)		Appelez-nous	-
29	WP489503		Clamp   (Replaces: 9761147)			Immediately	$ 9.68
30	WP3188425		Seal, Switch   (Replaces: 3191387)				$ 82.61
31	4453191		Seal, Panel		Appelez-nous	-
32	4167077		Nut (2)		Appelez-nous	-
33	8300216		Bracket, Panel Support		Appelez-nous	-
34	8284796		Plug, Manifold		Appelez-nous	-
35	8300232		Tubing, Gas Burner - Cr		Appelez-nous	-
36	4454974		Rail, Support		Appelez-nous	-
